Product Overview
PTFE Encapsulated Rubber Washers represent the pinnacle of sealing technology for extreme chemical environments. These specialized components combine the universal chemical resistance of PTFE (Polytetrafluoroethylene) with the mechanical resilience and energizing properties of a rubber core. This "best of both worlds" design solves the primary weakness of pure PTFE gaskets-their tendency to "cold flow" or creep under pressure.
At Xiamen Best Seal, our encapsulated washers feature a seamless, uniform jacket of FEP or PFA that completely encloses an inner core of Silicone or FKM (Viton™). This ensures that the primary sealing material remains protected from corrosive media while maintaining constant sealing tension. They are widely considered the standard for pharmaceutical mixing, chemical processing, and food production equipment where material purity and zero-leak performance are non-negotiable.
Structure & Cross-Section

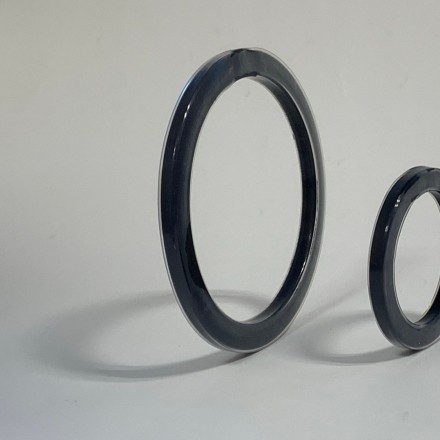

The Dual-Material Sealing LogicThe cross-section reveals a seamless FEP/PFA outer jacket with a wall thickness typically between 0.2mm and 0.5mm. Inside this jacket is a solid Silicone or FKM core that acts as a precision spring, constantly pushing the PTFE jacket against the flange surfaces. This structure eliminates the "memory loss" common in solid PTFE gaskets. Even under fluctuating temperatures and pressures, the rubber core provides the "energizing" force necessary to maintain a gas-tight seal, while the PTFE jacket provides a chemically inert barrier that survives almost all industrial solvents and acids. |
|
Material Selection
1. The "Jacket & Core" Combination
| Component | Available Materials | Key Characteristic |
|---|---|---|
| Outer Jacket | FEP (Fluorinated Ethylene Propylene) | Standard for chemical resistance; Operating temp up to 205°C. |
| Outer Jacket | PFA (Perfluoroalkoxy) | Superior heat stability; Lower permeation; Operating temp up to 260°C. |
| Inner Core | Silicone (VMQ) | Best compression set; excellent for low-temperature recovery. |
| Inner Core | FKM (Viton™) | Added secondary protection; higher mechanical strength. |
2. Chemical Compatibility
- ˚ ✵ Resistant to almost all known solvents
- ˚ ✵ Unaffected by aggressive acids (e.g., Nitric, Sulfuric)
- ˚ ✵ Ideal for steam and hot water cycles
- ˚ ✵ Zero flavor/odor transfer for food applications
3. Physical Parameters
- ˚ ✵ Temperature range: -60°C to +260°C
- ˚ ✵ Shore A Hardness (Energizer): 70–85 Shore A
- ˚ ✵ Friction Coefficient: Extremely low (Self-lubricating)
- ˚ ✵ Water Absorption: <0.01%< /li>
Product Advantages
✶ Why Choose Encapsulated Washers over Pure PTFE?
- No Cold Flow – The rubber core prevents the gasket from flattening out over time.
- Lower Bolting Force – Requires less torque to achieve a gas-tight seal than solid PTFE.
- Thermal Cycling Stability – Retains elasticity even during rapid temperature fluctuations.
- Ultra-Pure Surface – Non-stick PTFE surface prevents bacterial buildup and contamination.
- Broad Chemical Range – Simplifies inventory by using one universal seal for multiple chemicals.
✶ Xiamen Best Seal Precision Manufacturing
- Seamless Joint Technology – Our proprietary welding process ensures the PTFE jacket has zero weak points.
- Uniform Wall Thickness – Precise extrusion control prevents premature failure at thin spots.
- High-Purity Materials – Using only virgin FEP/PFA pellets for maximum chemical resistance.
- Custom Profiles – Capable of producing washers in non-standard sizes for specialized valves.
Product Applications

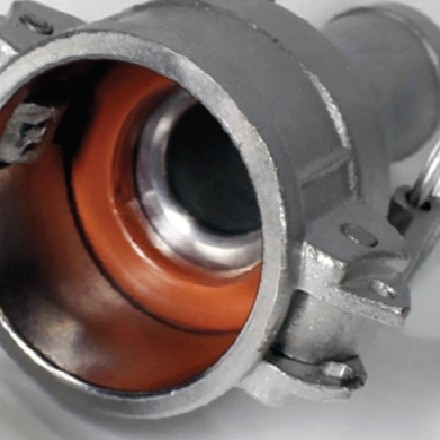

Safety for High-Exposure EnvironmentsOur encapsulated washers are the first choice for Chromatography systems, Biotechnology reactors, and High-purity chemical pumps. They are essential components in Pharmaceutical mixing vessels where frequent sterilization and contact with aggressive solvents would degrade standard rubber gaskets. By providing a non-reactive, non-absorbent surface, these washers ensure the integrity of the process media remains 100% pure throughout the production cycle. |
|
Installation Guide
🛠️ Handling Procedures for PTFE Jackets
Inspect flange surfaces for burrs. A small scratch on the PTFE jacket can lead to chemical "wicking" into the rubber core.
In winter conditions, soaking washers in 60°C water for 10 minutes can make the PTFE jacket more flexible for installation.
Use a star-pattern tightening sequence to ensure even compression. Avoid over-tightening which may crush the jacket.
Once the assembly reaches operating temp, retightening is generally not required due to the resilience of the rubber core.
Packaging & Shipping
📦 Clean & Traceable Distribution
| Packaging Type | Standard Details |
|---|---|
| Individual Sealed Bags | Best for pharmaceutical and food grade parts; prevents surface contamination. |
| Batch Labeling | Full traceability including material lot number, cure date, and part dimensions. |
| Protective Layering | Interleaved with soft tissue or plastic to prevent friction scratches during transit. |
| Fulfillment: Worldwide express or sea freight from our Xiamen export hub. | |
Certificates & Compliance
🏆 Quality Management: ISO 9001:2015 Approved Facility
⚙️ Compliance Standards: FDA 21 CFR 177.1550 (PTFE), USP Class VI (Medical Grade), RoHS, REACH
FAQ – Request For Quotation
❓ When should I choose PFA over FEP for the jacket?
Choose PFA if your application exceeds 200°C or involves high-pressure steam, as PFA has a higher melting point and lower permeability. FEP is the more cost-effective choice for most standard chemical processes up to 180°C.
❓ Can these washers handle hard vacuum conditions?
Yes. Because the rubber core is completely encapsulated, the PTFE jacket remains stable even under high vacuum, provided the flange finish is sufficiently smooth (typically < 0.8µm Ra).
❓ Are custom shapes available beyond standard flat washers?
We specialize in custom encapsulation. While flat rings are most common, we can encapsulate O-ring profiles, square gaskets, and custom cross-sections for unique equipment designs.
