Product Description

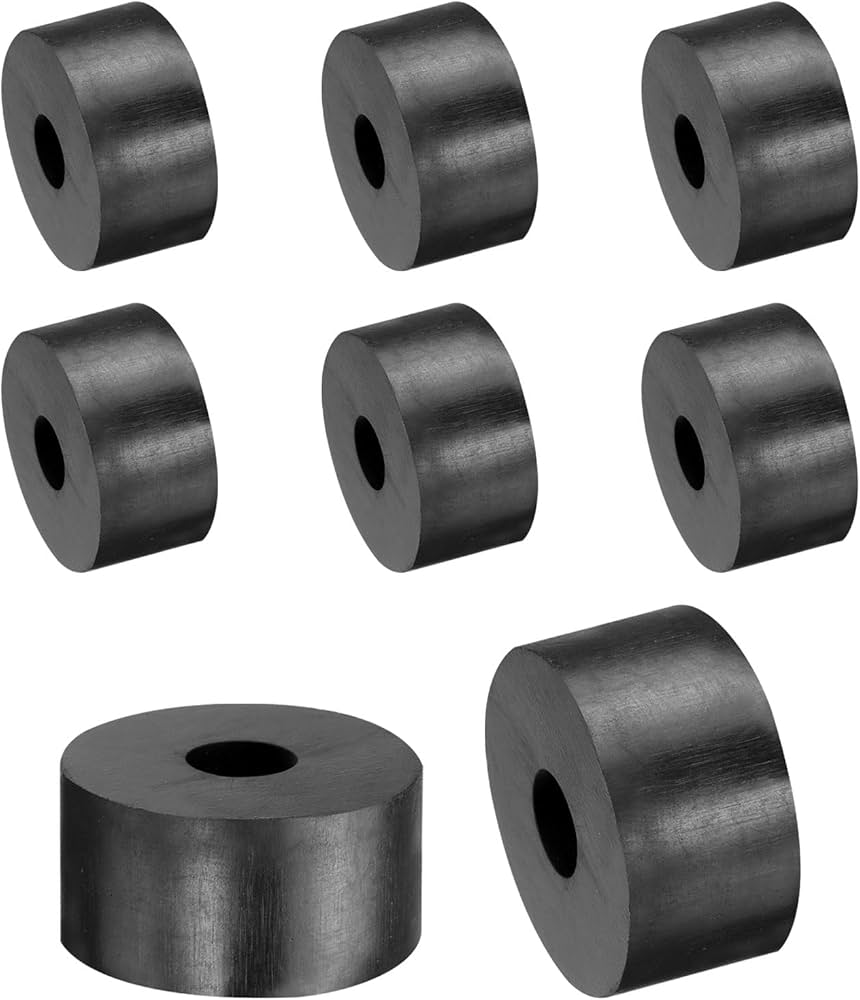

Flat O Ring Washers are specialized sealing components that combine the advantages of flat washers and O-rings. With a flat profile and elastic sealing properties, these washers are designed to provide effective sealing, cushioning, and vibration damping in static sealing applications.
Unlike standard flat washers, flat O ring washers offer enhanced sealing performance by creating a tight, elastic barrier between mating surfaces. Compared to traditional O-rings, their flat geometry allows for easier installation and improved load distribution.
Flat O ring washers combine surface coverage of flat washers with elastic sealing performance of O-rings.
Flat O Ring Washers are widely used in automotive assemblies, plumbing systems, hydraulic equipment, electrical enclosures, HVAC systems, and industrial machinery where reliable static sealing and vibration isolation are required.
Technical Parameters (Typical NBR 70)
| Property | Unit | Test Method | Value |
| Material | - | - | NBR (Nitrile Rubber) |
| Hardness | Shore A | ASTM D2240 | 70 ± 5 |
| Tensile Strength | MPa | ASTM D412 | ≥ 10 |
| Elongation at Break | % | ASTM D412 | ≥ 300 |
| Compression Set | % | ASTM D395 B | ≤ 25 (22h / 70°C) |
| Temperature Range | °C | - | -40 to +100 |
| Dimensional Tolerance | mm | ISO 3302-1 | ± 0.2 |
Material Options
Elastomer Materials：
| Material | Key Properties |
|---|---|
| NR | High elasticity |
| SBR | Abrasion resistant |
| NBR | Oil resistant |
| CR (Neoprene®) | Weather resistant |
| EPDM | Water & aging resistant |
| EPDM (Peroxide) | Enhanced heat resistance |
| IIR | Low gas permeability |
| XNBR | High wear resistance |
| PU | High strength, wear resistant |
| HNBR | Oil & heat resistant |
| ACM | Hot oil resistant |
| VMQ (Silicone) | Wide temperature range |
| FVMQ | Fuel & low-temperature resistant |
| FKM (Viton®) | Chemical & high-temperature resistant |
| TPR | Flexible, easy to process |
High-Performance Materials：
| Material | Key Properties |
|---|---|
| PTFE | Low friction, chemical resistant |
| FFKM | Extreme chemical & heat resistance |
Compound Options：
| Option | Description |
|---|---|
| Internal lubrication | Paraffin / PTFE / Silicone / Graphite |
| Conductive rubber | Anti-static |
| UL approved | Safety certified |
Surface Options：
| Option | Description |
|---|---|
| Talc powder | Anti-blocking |
| Silicone oil | Surface lubrication |
| PTFE coating | Reduced friction |
| PSA | Single- or double-sided adhesive |
Flat O ring washers are primarily used for static sealing. Select material based on media compatibility and operating temperature.
Key Features & Advantages
- Flat profile for stable load distribution
- Elastic sealing for leak prevention
- Easy installation without complex grooves
- Effective vibration and noise reduction
- Protects mating surfaces from damage
- Available in multiple rubber materials
Main Applications
- Automotive oil, fuel, and coolant systems
- Plumbing fittings and pipe connections
- Hydraulic and pneumatic equipment
- Electrical enclosures and junction boxes
- HVAC systems and installations
- Industrial machinery and equipment
Packaging & Shipping
📦 Packaging Options：
| Type | Details |
|---|---|
| Standard Packaging |
Sealed PE bags Inner cartons with protective layers Palletized packing for bulk shipments |
| Custom Packaging (Upon Request) |
Small pouch / bag packaging Individual heat-sealed bag with cardboard backing Individual bubble-wrap protection Light-proof black packaging Customized labels or barcodes
|
🚚 Shipping Methods
| Item | Details |
|---|---|
| MOQ | 1 pcs |
| Lead Time | • In stock: shipped within 3 days• Out of stock: 7–15 days after order confirmation• New mold: sample in 10–20 days, mass production after approval |
| Port | Xiamen, China |
| Shipping Methods | Express (DHL, FedEx, UPS), Air, SeaCustomer's forwarder acceptable |
| Trade Terms | FOB / CIF / DDP available |
| Sample Policy | Samples available; customer pays freight |
| Export Support | Standard export documents provided |
Free samples, fast quotations within 24 hours, and flexible OEM & ODM services are available. Contact us today to discuss your flat O ring washer requirements.
Factory Strength & Quality Assurance
Xiamen Best Seal Imp. & Exp. Co., Ltd. is a professional manufacturer of rubber sealing products with over 20 years of experience. Our flat O ring washers are produced under strict quality control to ensure stable performance and long service life.
Certifications: ISO 9001, RoHS, REACH, FDA (food-grade materials available)
