Industrial Rubber Back-up Ring Seals – Precision Anti-Extrusion Engineering
Industrial Rubber Back-up Ring Seals (Anti-Extrusion Rings) are high-modulus protective components engineered to eliminate seal failure in high-pressure hydraulic and pneumatic systems. By providing a rigid mechanical support barrier, these rings effectively prevent the primary seal (typically an O-ring) from being sheared into clearance gaps, a phenomenon known as extrusion. This transition to Back-up Ring support is critical for maintaining system integrity as pressures exceed 1,500 PSI (100 bar).
Xiamen Best Seal utilizes a "Precision Polymer" approach, manufacturing these rings from specialized compounds including 90+ Shore A NBR, FKM, and Graphite-filled PTFE. Our facility is ISO 9001:2015 certified and supports PPAP Level 3 documentation, ensuring that every batch meets the stringent dimensional and material benchmarks required by global OEM and MRO partners.
✵ The Mechanics of Anti-Extrusion Defense ✶
Eliminating Clearance-Gap Shearing & Seal FatigueIn high-pressure industrial cycles, elastomer O-rings behave like high-viscosity fluids. Without axial support, they are forced into the clearance gaps between the piston and cylinder wall, leading to rapid "nibbling" and progressive seal degradation. Our Industrial Back-up Rings create a seamless mechanical bridge that maintains the primary seal's geometry.
|
|
Three Common Types (Pick Your Move)

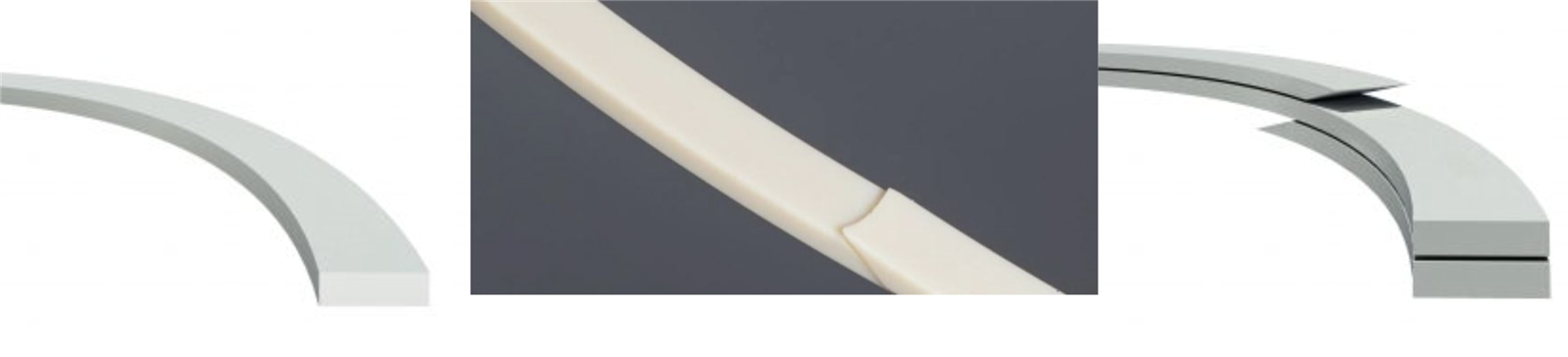

A complete circle for the best protection. Perfect for standard assembly.
Has a small cut so you can "snap" it into tight spaces without stretching it.

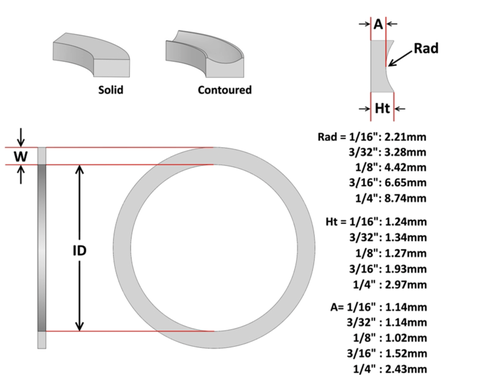

Specially curved to sit perfectly against your O-ring for zero gaps.
Which Material Do You Need?
| Material | Best Quality | Where to Use |
|---|---|---|
| PTFE (Teflon) | Super smooth and handles almost any chemical. | Chemical factories and clean pumps |
| NBR Rubber | Great all-around pick for oil and general industry. | Standard factory machines |
| FKM (Viton) | Fights high heat and strong chemicals easily. | Engines and Oil & Gas gear |
Everyday B2B Applications
🚜 Digging Machines
Keeps hydraulic power strong in excavators and tractors under heavy dirt.
🚗 Cars & Trucks
Used in brakes and gearboxes to prevent leaks and expensive repairs.
🏭 Large Valves
Ensures high-pressure valves in factories stay sealed for many years.
✵ ˚ QUALITY YOU CAN SEE ✬ * ˚
• AQL 1.0 - 1.5 Sampling Standards: Rigorous batch-level verification according to military and industrial sampling protocols.
• CCD Automated Optical Sorting: High-speed inspection for dimensional variance and lip surface defects with micron-level precision.
• Rheometer Material Profiling: Ensuring hardness (90+ Shore A) and modulus of elasticity are perfectly consistent with the technical data sheet (TDS).
˙𐃷˙ Bespoke Manufacturing & Compounding Expertise
We specialize in engineering Industrial Back-up Ring solutions for non-standard groove geometries and extreme environmental variables. Our in-house technical department provides comprehensive compounding support, allowing for precise control over modulus, tensile strength, and chemical elongation properties.
- ◌ Rapid CNC Prototyping: Accelerated verification through machined prototypes, eliminating initial tooling costs for low-volume trials.
- ◌ Material Traceability: Full batch-level traceability supported by comprehensive Material Certification (COA) and TDS reporting.
- ◌ Advanced Polymer Selection: Expertise in Graphite-filled PTFE, 95 Shore A Hydrogenated Nitrile (HNBR), and low-compression FKM.
Packaging & Shipping
📦 Packaging Options
We provide flexible packaging solutions based on product size, order quantity, protection requirements, and customer preferences. Both standard and special packaging options are available to ensure safe delivery and convenient handling.

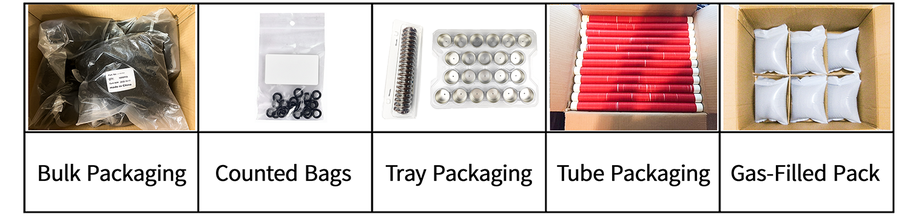

| Category | Packaging Type |
|---|---|
| Standard Packaging | Large Poly Bags (Bulk Industrial Pack) |
| Small Poly Bags (Counted Packs for Sterile Kits) | |
| Foam / Bubble Protective Packaging | |
| Special Packaging | Blister Packaging for medical/retail sets |
| Inflatable Packaging for heavy-duty protection | |
| Plastic Heat Shrink Packaging + Cardboard Reinforcement | |
| Sleeve Packaging (Protective Tubes for sealing lips) | |
| Customization Available: Labels, part numbers, barcodes, batch info, or customer branding upon request | |
🚚 Shipping & Logistics
We offer multiple shipping methods with flexible delivery options to meet your project timelines.
| Item | Details |
|---|---|
| Shipping Methods | Express (DHL / FedEx / UPS), Air Freight, Sea Freight |
| Delivery Time | Express: 3–5 days | Air: 5–7 days | Sea: 25–35 days |
| Export Packaging | Standard export cartons, palletized for secure transport |
| Trade Terms | EXW, FOB, CIF, DDP / DDU available |
| Shipping Port | Xiamen, China |
Compliance & Quality Certifications
🏆 Quality Certifications: ISO 9001:2015, PPAP Level 3, FDA, NSF, WRAS.
⚙️ Compliance Standards: RoHS 2.0, REACH Compliant.
Expert Technical Support Q&A
The Back-up Ring is a non-sealing, support component designed to reduce the extrusion gap. It provides a rigid axial boundary that prevents the elastomer O-ring from deforming under pressure, thereby increasing the system's overall burst thresholds.
In dual-acting cylinders where pressure is applied from both directions, a Back-up Ring must be installed on each side of the O-ring to ensure anti-extrusion protection throughout the entire stroke cycle.
