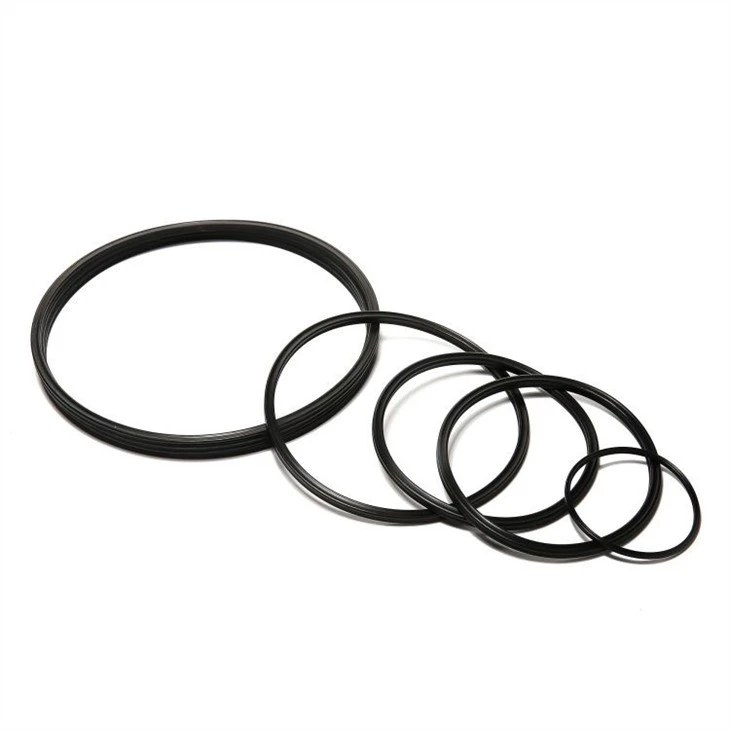

Four-Lip Seal Ring – The Ultimate Dynamic Sealing Upgrade
In reciprocating hydraulic cylinders and high-speed rotary joints, the standard circular O-ring suffers from a fatal flaw: "Spiral Failure." Under alternating pressures and friction, an O-ring tends to roll inside its groove, twisting until it structurally tears. The Four-Lip Seal Ring (also known universally as the X-Ring, Quad Ring, or Four-Lobed Seal) was engineered specifically to solve this exact mechanical failure. By replacing the circular cross-section with an "X" geometry, the seal sits squarely in the groove, completely eliminating rolling and twisting during dynamic strokes.
Xiamen Best Seal is a premier manufacturer of precision molded Four-Lip Rubber Seals for the global fluid power and automation industries. Our four-lobed profiles provide exactly what the name suggests: four independent sealing lips. This creates two distinct sealing surfaces per side (compared to an O-ring's single point of contact). This dual-barrier requires less squeeze to maintain a perfect seal, dramatically lowering breakout friction, reducing localized wear, and multiplying the operational lifespan of your hydraulic and pneumatic equipment.
✵ ˚ : · ✬ The X-Profile Advantage ✬ · : ˚ ✶
The unique geometry of a Four-Lobed Rubber Seal fundamentally changes how stress and friction are distributed. When you upgrade your rod or piston glands from standard O-rings to our Four-Lip design, you unlock three profound mechanical advantages:
🚫 Zero Twist / Spiral Failure
The square-like footprint of the Four-Lip Ring means it cannot roll along its axis in the hardware groove. It remains statically seated even under rapid reciprocating piston strokes, preventing catastrophic spiral tearing.
📉 Reduced Breakout Friction
Because it uses multiple seal lips, less radial squeeze (compression) is required to establish a positive block. Less squeeze equals significantly less friction, meaning your pneumatic actuators move smoother and faster.
🛢️ Micro-Lubrication Reservoir
The valley/groove situated directly between the inner and outer lips naturally traps and holds hydraulic oil or assembly grease. This constant lubrication ring prevents harsh dry-starts and greatly extends seal life.
Industrial Elastomer Selection
Dynamic seals endure intense frictional heat and direct exposure to aggressive hydraulic fluids. Selecting the exact polymer compound is critical. Four-Lip Seals can be molded in all standard elastomers to match your exact fluid compatibility needs:
| Elastomer Type | Fluid Compatibility & Thermal Tolerance |
|---|---|
| NBR (Nitrile Rubber) | The global standard for standard hydraulics and pneumatics. Excellent resistance to petroleum-based oils, mineral oils, and greases. Temperature range: -30°C to +100°C. Highly cost-effective for mass automation. |
| FKM (Fluoroelastomer / Viton®) | The ultimate high-temperature and chemical defense. Withstands synthetic aviation lubricants, strong acids, and operates continuously at temperatures up to +200°C. Essential for high-speed dynamic motors. |
| Polyurethane (PU / AU / EU) | The absolute peak of abrasion and tear resistance. Four-Lip PU seals are utilized in heavy earth-moving equipment and high-pressure cylinders where extreme shock loads and abrasive dust are present. |
| EPDM | Specifically utilized when sealing against brake fluids (non-petroleum), Skydrol® aviation fluids, and superheated steam. Note: Not compatible with mineral oils. |
✵ ˚ : · ✬ PRECISION TOOLING: THE PARTING LINE ✬ · : ˚ ✶
The most common defect in poorly manufactured generic seals is a heavy "Parting Line" (mold flash) right across the sealing lip. Any rubber burr here instantly becomes a leak path under pressure.
- Hidden Flash Lines: Our injection and compression molds are engineered so the parting line sits deep inside the valley (between the lobes), NOT on the active outer sealing lips.
- Optical Verification: We utilize advanced Automated Optical Inspection (AOI) to guarantee that the critical dynamic contact points of every X-Section Rubber Seal are 100% perfectly rounded and flawless.
AS568 Series "Drop-In" Compatibility
No hardware redesign is necessary. Our Four-Lip Seals are completely dimensionally interchangeable with the standard AS568 O-Ring series. You can instantly upgrade your existing piston and rod grooves by directly swapping your old circular rings with our newly molded X-profile components.
Fluid Power and Dynamic Applications
Hydraulic Cylinders
Acting as primary or secondary seals on reciprocating rods and pistons in earthmovers, forklifts, and injection molding machinery.
Pneumatic Actuators
The low breakout friction of the four-lip design makes it the absolute superior choice for high-speed, lightweight robotic pneumatic cylinders.
Rotary Shaft Joints
Used heavily in slow-to-medium rotating equipment (like steering columns and fluid swivels) where standard lip seals are too bulky.
Custom Tooling and Vulcanization
★┊ OEM Mass Production Capabilities
Finding high-quality standard sizes is easy, but engineering thick or ultra-miniature geometries requires deep expertise. Xiamen Best Seal specializes in rapid prototyping and high-cavity molding for global automation brands.
- ◌ Massive Inventory of Existing Molds: We already own the tooling for hundreds of standard metric and imperial AS568 Quad sizes. No setup fees if the tool exists!
- ◌ Rapid Custom Compounding: Need extreme low-temperature HNBR or anti-explosive decompression FKM? Our in-house laboratory mixes custom rubber batches strictly to your datasheet parameters.
- ◌ Cryogenic Deflashing: Utilizing liquid nitrogen tumbling systems to instantly freeze and shatter any microscopic rubber flash without touching the critical sealing lips.
Global Logistics & Precision Packaging
📦 Anti-Deformation Packaging
The delicate geometry of an X-Section Rubber Seal can be permanently ruined if crushed under heavy pallets during weeks of ocean transit. We employ rigorous anti-deformation packaging standards:
- Vacuum / Nitrogen Charged Bags: Large diameter and thin-cross-section seals are packed in air-cushioned bags to prevent squeezing.
- Hard Tube / Cardboard Core Wrapping: Extra large rings are laid completely flat inside rigid cylinders to ensure they remain perfectly 100% round upon delivery to your assembly line.
- VCI (Volatile Corrosion Inhibitor): O-Ring repair kits and replacement sets containing metal components are sealed with VCI to prevent rust.
Industrial Manufacturing Certifications
⚙️ Core Heavy Industry Quality Traceability:
- ISO 9001:2015 Quality System - Full manufacturing accountability, raw material tracing, and standardized SPC (Statistical Process Control) reporting.
- REACH Compliance - Guaranteed free from the latest SVHC (Substances of Very High Concern), ensuring seamless European import clearance.
- RoHS 2.0 Directive - Zero usage of lead, mercury, or restricted heavy metals in our compounding process.
- ASTM D2000 Material Standards - Every batch of NBR, FKM, and PU is stringently tested for tensile strength, elongation, and compression set according to precise ASTM automotive/industrial protocols.
-
Mechanical Sealing FAQ
❓ Do Four-Lip Seals require back-up rings at high pressure?
Yes. While the X-profile structurally resists extrusion far better than a standard O-ring, if your system exceeds 1500 PSI (10 MPa) or has large hardware clearance gaps, a PTFE or contoured elastomer Back-Up Ring is strongly recommended to prevent the rubber heel from blasting into the extrusion gap.
❓ Do they seal in both directions (bi-directional)?
Absolutely. The symmetrical four-lobed contour acts as an exceptional bi-directional double-acting seal, making it the perfect single-part replacement for complex two-piece piston sealing assemblies.
Why choose us?
- We provide flexible and personalized solutions to our customers' rubber X-ring needs, depending on their specific requirements.
- We aim to be a leading company in the O-ring X-ring Rubber industry and continue to improve our production management.
- We can produce rubber X-rings according to various industry standards and customer specifications.
- We provide all kinds of learning opportunities for employees, greatly improve the work efficiency, and effectively improve the overall quality of the staff.
- Our company offers flexible and fast delivery options for our rubber X-ring products.
- The company's products not only have a high market share, but also are exported to many countries. We will, as always, use high-quality products and pleasant cooperation experience to create a win-win situation with our customers!
- Our rubber X-rings are designed to withstand extreme temperatures and pressure conditions.
- The company insists on the development strategy of "moderate diversification of investment and high specialization of operation", and takes integrity, innovation and responsibility as the core values.
- Our rubber X-rings have excellent resistance to wear and tear, making them ideal for high-stress applications.
- "Pragmatic and innovative, dedicated and efficient" is our entrepreneurial spirit.
