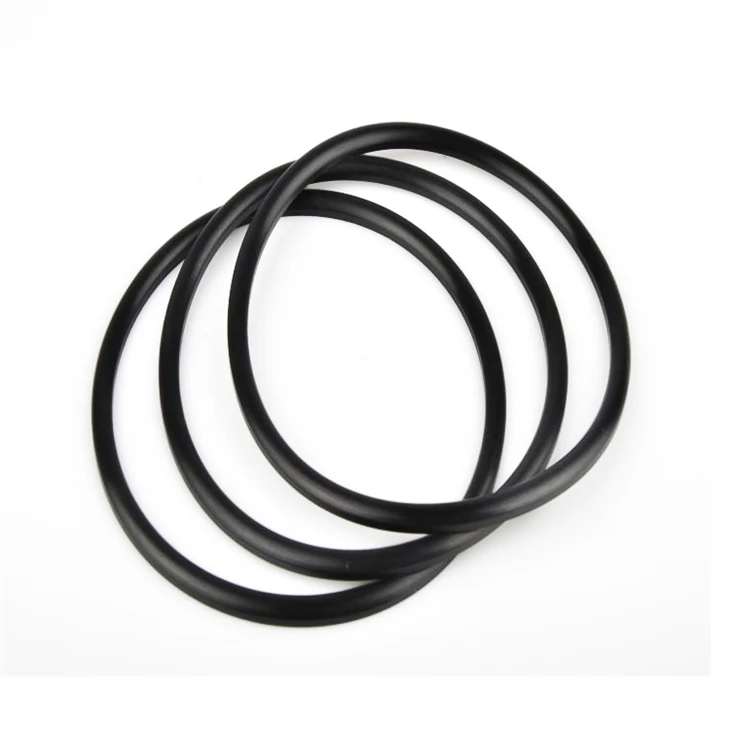

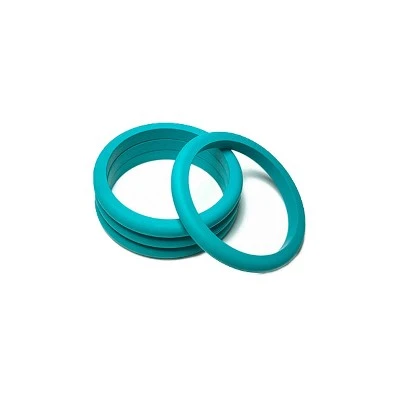

Dynamic Piston D-Rings – Eradicating High-Pressure Spiral Failure
In high-speed, reciprocating hydraulic and pneumatic cylinders, the standard O-ring harbors a fatal mechanical flaw. As the piston violently actuates back and forth under immense pressure, a standard circular O-ring physically rolls and twists inside the hardware groove. This uncontrollable rolling creates catastrophic "Spiral Failure"-literally tearing the elastomer apart and instantly flooding the cylinder bypass with uncontrolled fluid pressure.
Xiamen Best Seal manufactures uncompromising Dynamic Piston D-Rings engineered exclusively to obliterate rolling failures in the world's most aggressive fluid-power systems. Designed with a precisely molded flat rectangular base and a rounded sealing peak, our D-Rings act as a supremely stable drop-in replacement for standard O-rings. The flat base anchors the seal dead-center in the hardware groove, physically preventing twisting or spiraling, even during 400-Bar hydraulic shock-spikes and high-frequency pneumatic cycling. When your equipment demands absolute zero-leakage reliability in severe-duty earthmoving equipment, aerospace actuators, and automated valve spools, you systematically upgrade to the D-Ring.
✵ ˚ : · ✬ The Architecture of Extreme Stability ✬ · : ˚ ✶
Our vulcanized D-Rings dominate commercial fluid-power precisely because they resolve the geometric weaknesses of legacy seals. We utilize CNC vacuum compression tooling to mold a flawless geometry:
🛑 Zero Spiral Twist (Flat Base)
The wide, rectangular flat-base aggressively seats directly against the bottom of the machined gland. When the piston strokes forward, the seal cannot roll over itself. This infinitely increases the lifespan of fast-cycling pneumatic spools and long-stroke hydraulic booms by eradicating twist-tearing.
🔄 Precision Half-Moon Lip
While the base remains flat, the dynamic sealing face utilizes an identical curved radius to an O-ring. This concentrates the compression force into a razor-thin contact line against the cylinder bore, minimizing breakaway friction (stiction) while maximizing fluid blockage.
🛡️ 400-Bar Anti-Extrusion Profile
During a violent hydraulic spike, O-rings get shoved into the micro-gaps between the piston and cylinder wall, fatally slicing the rubber. The geometric bulk of our D-Ring resists this extrusion force, acting identically to a seal fitted with expensive backup rings, drastically lowering your BOM hardware count.
Fluid Power Compound Matrix
The dynamic forces inside heavy machinery dictate uncompromising polymer selection. Our engineering team customulates our masterbatches to be impervious to aggressive synthetic fire-resistant (FR) fluids and hyper-abrasive metal particulate:
| Primary Elastomer Matrix | Engineering Application & Fluid Environment |
|---|---|
| Polyurethane (High-Tear PU) | The Heavy Extrusion Defender. PU possesses massive tear-strength and cut-resistance. It is the absolute standard for heavy mining and agricultural excavators running at 5000+ PSI where micro-scratches on the steel boom would shred normal NBR instantly. |
| Hydrogenated Nitrile (HNBR) | The Sour Gas Bridge (+150°C). When facing aggressive H2S (Hydrogen Sulfide) in deep-sea oil drilling valves or extreme automotive cold-cranking temperatures, HNBR provides a bulletproof chemical barrier without the staggering cost of specialized FFKM. |
| Internally-Lubricated FKM (Viton®) | The High-Heat Pneumatic Champion. For automated assembly-line robotic air-valves where external grease dries up. We chemically blend friction-reducing agents directly into the FKM polymer, eliminating dry-startup stick-slip at 200°C+. |
Global Actuator & Spool Deployments
🚜 Heavy Hydraulic Cylinders
Acting as extreme-pressure piston and rod seals in earthmoving equipment, dump-truck lifting mechanisms, and commercial tractor attachments where failure triggers total machine shutdown.
⚙️ Pneumatic Directional Spool Valves
Replacing O-rings in high-frequency factory automation valves. The flat base completely prevents the fast-sliding spool from clipping and tearing the seal inside the tight aluminum bore crossing-ports.
✈️ Aerospace Flight Control Servos
Molded under strict MIL-SPEC tolerances using military-grade FVMQ (Fluorosilicone) to seal high-altitude hydraulic flight-surface actuators reliably down to -60°C.
One-Stop AS568 OEM Tooling
★┊ Stock Drop-in Replacements & Custom Dies
A D-Ring's most massive advantage for heavy-industry OEMs is hardware compatibility. They are explicitly designed to retrofit effortlessly into pre-existing standard O-ring glands. You can completely eliminate rolling failures without ever modifying your CNC lathe programs or cutting new metal cylinder grooves.
- The AS568 Tooling Library: We carry existing mold plates for virtually the entire AS568 dash-size spectrum, bypassing massive NRE setup fees and slashing your time-to-market.
- Flawless Parting Lines: A D-Ring must have an absolutely smooth dynamic peak. Utilizing ultra-vacuum Compression Presses, we guarantee microscopic, flash-free parting lines to ensure zero blow-by gas leakage under pressure.
Packaging & Shipping
📦 Packaging Options
We provide flexible packaging solutions based on product size, order quantity, protection requirements, and customer preferences. Both standard and special packaging options are available to ensure safe delivery and convenient handling for cylinder manufacturers and hydraulic repair depots.
| Category | Packaging Type |
|---|---|
| Standard Packaging | Large Poly Bags (Bulk Industrial Pack for OEM Valve Assembly) |
| Small Poly Bags (10-packs for Hydraulic Replacements) | |
| Foam / Bubble Protective Packaging | |
| Special Packaging | Retail Blister Packaging for aftermarket cylinder kits |
| Inflatable Packaging for heavy-duty protection against crushing | |
| Plastic Heat Shrink Packaging + Cardboard Reinforcement | |
| Sleeve Packaging (Strict protection to safeguard the D-Ring lip) | |
| Customization Available: Mil-Spec barcodes, part numbers, vulcanization batch labels, or custom brand tags upon request. | |
🚚 Shipping & Logistics
We offer multiple shipping methods with flexible delivery options to meet your fast-paced assembly chain timelines.
| Item | Details |
|---|---|
| Shipping Methods | Express (DHL / FedEx / UPS), Air Freight, Sea Freight |
| Delivery Time | Express: 3–5 days | Air: 5–7 days | Sea: 25–35 days |
| Export Packaging | Standard export cartons, palletized for secure transport |
| Trade Terms | EXW, FOB, CIF, DDP / DDU available |
| Shipping Port | Xiamen, China |
Compliance & Quality Certifications
🏆 Quality Certifications: ISO 9001:2015, Extensive High-Pressure Anti-Extrusion Testing, Flawless Parting Line Standards.
⚙️ Compliance Standards: Eco-friendly RoHS 2.0, REACH SVHC Compliant.
Hydraulic Fluid Power FAQ
❓ Do we need to redesign our metal cylinder grooves to fit a D-Ring?
No. Unlike Quad-Rings or complex lip seals that require unique machining, the D-Ring is expressly engineered as a direct drop-in replacement for standard AS568 O-ring glands. You can instantly upgrade your hydraulic cylinder's reliability and eradicate rolling failures without altering a single line of your CNC lathe code.
❓ Can these replace an O-ring and Backup-Ring assembly?
In many medium-to-high pressure applications, yes. The broad, flat base of the D-Ring structurally resists being extruded into the clearance gap far better than a round O-ring. This often allows engineers to completely remove expensive external Teflon (PTFE) backup rings, instantly simplifying the assembly process and lowering the BOM (Bill of Materials).
