9mm ID Rubber O-Rings – Precision Industrial Sealing Solutions
9mm ID Rubber O-Rings (9mm Inner Diameter) are vital precision seals used across hydraulic, pneumatic, and automotive sensor applications. These O-rings are specifically engineered to provide a leakage-free interface for shafts, pistons, and static joints with a 9mm nominal bore. Their versatility allows them to be paired with various cross-sections (CS) to meet specific groove dimensions and pressure requirements.
Xiamen Best Seal specializes in the manufacturing of high-quality 9mm ID Rubber O-Rings using advanced compression and injection molding. Whether you require standard NBR for oil resistance or FKM for high-temperature chemical defense, our 9mm seals are produced to strict ISO 3601 and AS568 standards, ensuring 100% dimensional accuracy and consistent performance in demanding industrial environments.
The Anatomy of a 9mm ID O-Ring
Dimensional CriticalityEffective sealing with a 9mm ID Rubber O-Ring depends on the perfect balance between the inner diameter and the cross-section (thickness).
|
|
Material Selection & Performance
| Material | Key Features | Primary 9mm Application |
|---|---|---|
| NBR (Nitrile) | General oil/fuel resistance, cost-effective | Automotive fuel lines, hydraulic pumps |
| FKM (Viton®) | High-heat (+200°C) and chemical resistance | Chemical processing, engine sensors |
| Silicone (VMQ) | Extreme temp range, FDA compliance | Coffee machines, medical devices |
| EPDM | Steam, UV, and ozone resistance | Brake systems, outdoor water meters |
| HNBR | High strength, thermal oil resistance | A/C compressors, power steering |
Why Choose Our 9mm O-Rings?
Automated optical sorting removes micro-defects that could cause leakage in small-diameter seals.
Over 500 existing molds for 9mm ID with varying thicknesses from 0.5mm to 5mm.
Full FDA, NSF-61, and WRAS support for water and food contact applications.
Custom 9mm sizes developed in as little as 3-5 days for urgent engineering projects.
˙𐃷˙ Advanced Manufacturing Controls
For critical 9mm ID Rubber O-Ring orders, we implement specialized manufacturing protocols to guarantee seal integrity.
- ◌ Cryogenic Deflashing: Ensures a clean, smooth finish without manual trimming damage.
- ◌ Post-Curing: Removes volatiles to enhance compression set resistance in high-temp applications.
- ◌ Batch Traceability: Every 9mm O-ring order is linked to specific raw material lots and production timestamps.
9mm ID Sealing in Action
Cross-Industry Reliability
From micro-electronics to heavy automotive components, the 9mm ID O-Ring is a standard yet critical component in global supply chains.
- ◌ Pneumatic Fittings: Sealing 9mm push-to-connect air lines and valves.
- ◌ Medical Valves: High-purity silicone 9mm O-rings for dialysis and respiratory equipment.
- ◌ Fuel Injectors: Specialized FKM 9mm seals for high-pressure fuel delivery systems.
Technical Specification Table
| Parameter | Detail/Standard |
|---|---|
| Inner Diameter (ID) | 9.00mm Nominal (+/- 0.08mm) |
| Available Cross Sections (CS) | 0.5mm, 1.0mm, 1.5mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 5.0mm |
| Hardness Range | 30 - 90 Shore A |
| Color Options | Black (Standard), Brown, Green, Blue, Red, Transparent |
| Compliance | FDA 21 CFR 177.2600, NSF-61, WRAS, RoHS 2.0, REACH |
Technical FAQ & Engineering Support
A: These are indexed by **Inner Diameter (ID)**. A 9mm ID O-ring is designed to fit onto a 9mm shaft or pin. We can also custom-manufacture based on Outside Diameter (OD) if your application requires specific external fitment.
A: This depends on your pressure requirements and space. For dynamic applications, a 1.78mm or 2.4mm CS is common. For high-pressure static seals, a 3.0mm+ CS may be required to provide sufficient squeeze and resistance to extrusion.
A: Yes. We can match any RAL or Pantone color code. This is frequently used for component identification on assembly lines or for brand-specific consumer products.

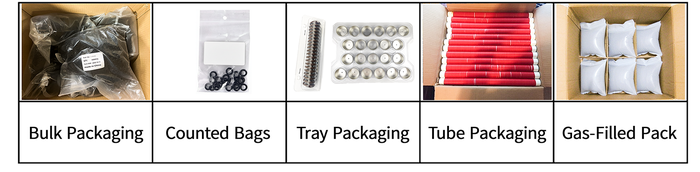

Packaging & Shipping
📦 Bulk Sealing Logistics
We provide flexible packaging solutions based on product size, order quantity, protection requirements, and customer preferences. Both standard and special packaging options are available.
| Category | Packaging Type |
|---|---|
| Standard Packaging | Large Poly Bags (Bulk Industrial Pack) |
| Small Poly Bags (100 / 500 / 1000 Count Packs) | |
| Foam / Bubble Protective Padding | |
| Special Packaging | Sleeve / Tube Packaging - Ideal for automated assembly |
| UV-Protected Black Bags (for EPDM storage) | |
| Plastic Heat Shrink Packaging + Cardboard Reinforcement | |
| Custom Labeled Bags with Customer Part Numbers | |
| Customization Available: Barcodes, QR codes, and batch certificates included in every shipment. | |
Compliance & Quality Certifications
🏆 Quality Certifications: ISO 9001:2015, PPAP Level 3, FDA, NSF, WRAS.
⚙️ Compliance Standards: RoHS 2.0, REACH Compliant.
