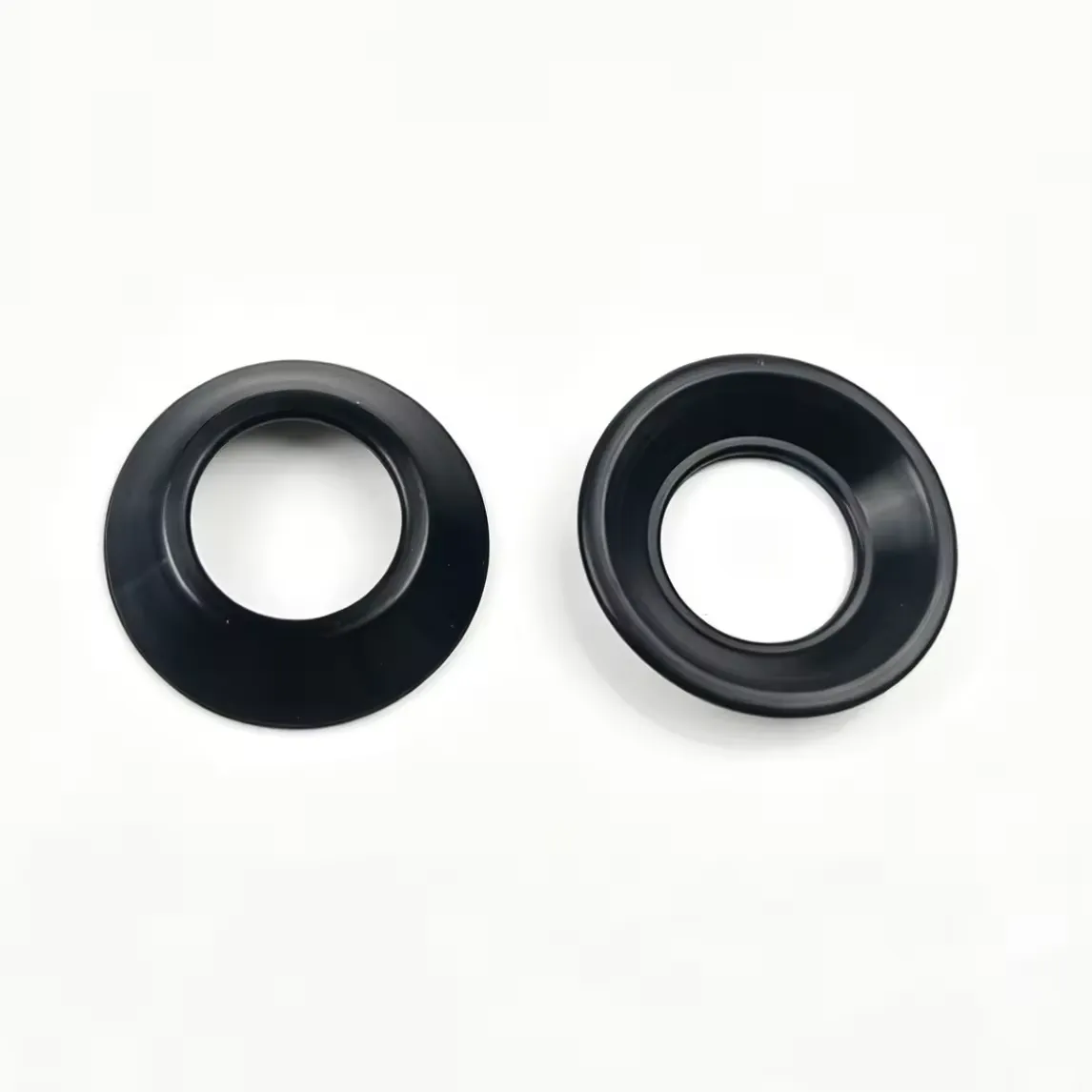

Custom Rubber Valve Seat – High-Cycle Fluid Control Seals

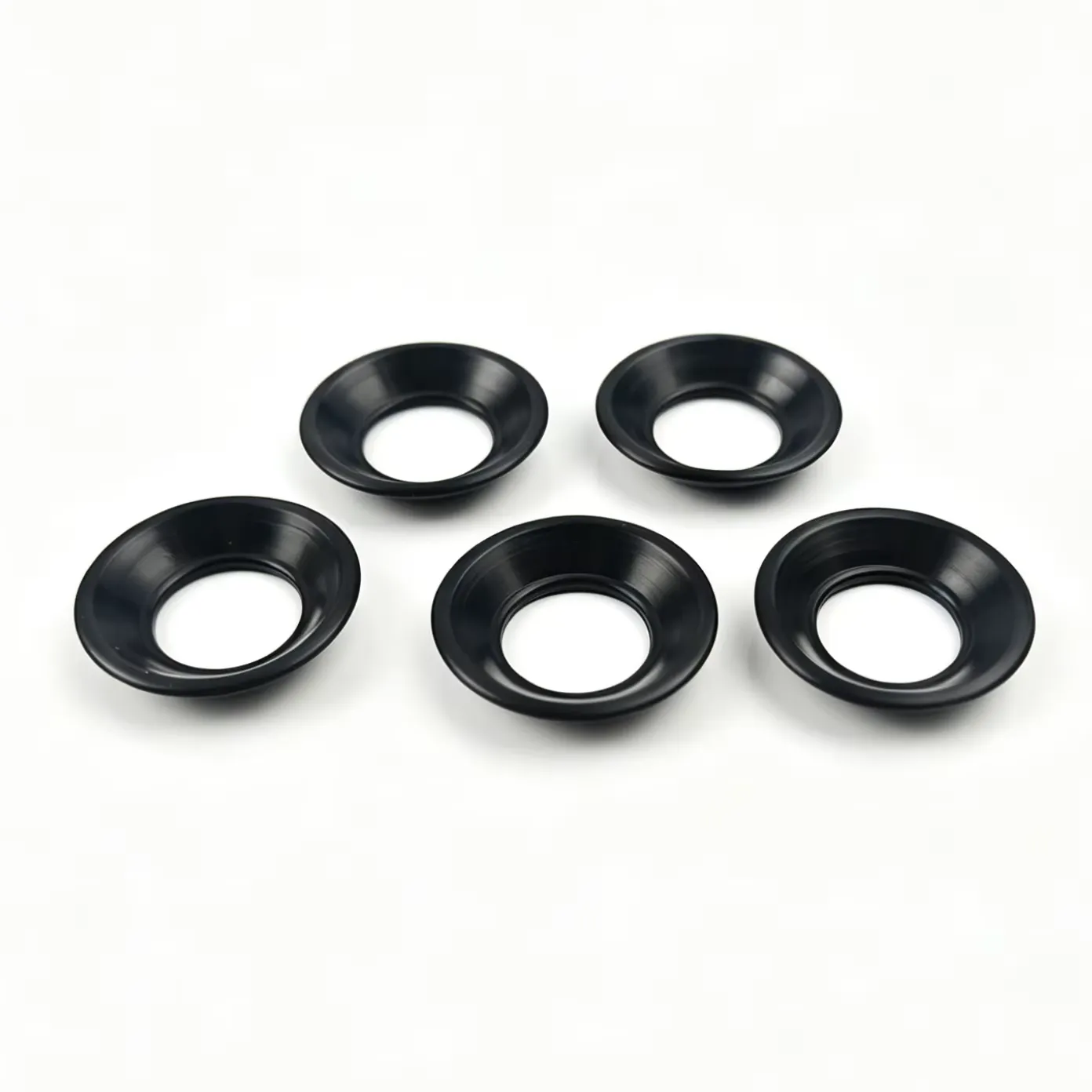

In municipal water meters, industrial solenoid valves, check valves, fluid control units, medical purifiers, and drinking water dispensers, establishing a secure shut-off seal is critical to prevent leaks and maintain fluid pressure. A Custom Rubber Valve Seat (also known as a valve seat insert) is a precision-engineered elastomeric seal that sits inside the valve body, cooperating directly with the valve core or stem. Engineered with thick-walled structures and flared, tapered, or grooved outer profiles, these seats serve as the primary mating surface that stops water, air, or gas leakage. Because they must endure millions of opening and closing cycles under dynamic line pressure, these inserts require high mechanical resilience, low compression set, and tight dimensional control.
At Xiamen Best Seal, we design and mold high-cycle rubber valve seats customized to your fluid system specifications. Operating from our ISO & TÜV Certified Facility, we compound specialized elastomers including chlorine-resistant EPDM for water utilities, fuel-resistant Nitrile NBR for hydraulic lines, high-temperature chemical-proof Viton FKM for process solenoid valves, and FDA-compliant VMQ Silicone for water purifiers. We specialize in micro-to-mid size seats-typically ranging from 10mm to 20mm outer diameters (OD) with 5mm to 10mm inner holes (ID)-molding custom flared shoulders and tapered lead-ins to ensure perfect seat guidance and plug engagement. Our manufacturing is Quality Managed to IATF 16949 Standards and verified under our Strict AQL 0.25/0.40 Quality Protocol, ensuring flash-free contact surfaces for airtight sealing. All custom seats are manufactured in our UL Certified Facility.
✵ ˚ : · ✬ Custom Rubber Valve Seat Advantages ✬ · : ˚ ✶
Why flow control engineers and B2B procurement managers specify Xiamen Best Seal's custom valve seats:
💪 High Cycle-Life Endurance
Our seats are formulated to withstand continuous dynamic compression from solenoid plungers and check-valve balls without tearing or taking a permanent set.
📐 Flared & Tapered Geometry
Precision mold design ensures the outer flared shoulders align perfectly with the metal housing cavity, acting as a guide seat for the plunger.
💧 Potable Water Compliance
For purifiers and dispensers, we use certified VMQ and EPDM compounds that are lead-free, non-toxic, and smell-free (FDA / LFGB compliant).
Custom Rubber Valve Seat Engineering Options
We compound and mold valve seats to suit standard industrial valves, municipal water systems, or proprietary OEM equipment:
| Design Parameter | Custom Engineering Option | Engineering & Application Notes |
|---|---|---|
| Elastomeric Compounds | EPDM (standard/peroxide cured), Nitrile (NBR), Silicone (VMQ), Viton (FKM) | EPDM offers chemical and hot water resistance; Nitrile is ideal for fuels; Viton stands up to harsh chemicals; Silicone is best for food grades. |
| Common Sizing Profiles | OD: 10mm to 25mm | ID: 3mm to 12mm | Thickness: 3mm to 15mm | Thicker walls ensure high mechanical integrity and prevent blowout under differential line pressure. |
| Flared / Tapered Angle | 15° to 60° custom leads | Tapered profiles align the seat inside the assembly socket, reducing seal wear during quick-cycle solenoid operations. |
| Hardness (Durometer) | 40 to 80 Shore A | Softer grades (40-55 A) seal under low spring pressure; firmer grades (70-80 A) support high hydraulic line pressures. |
| Color Selection | Black (Standard), Translucent, Blue, Grey, Red, Custom Colors | Color differentiation aids visual inspection during multi-stage assembly line checks. |
| Compliance Certificates | FDA 21 CFR 177.2600, NSF-61 (Potable Water), REACH, RoHS | EPDM and Silicone compounds comply with international standards for public water grids and sanitary appliances. |
Strict AQL 0.25/0.40 Quality Standards
Because parting-line flash, surface voids, or dimensional shifts can cause micro-leakage in closed valves, we inspect all custom rubber valve seats to a Strict AQL 0.25/0.40 Quality Protocol. Using optical sorting machinery, we verify dimensional accuracy to prevent valve sticking or bypass leaks.
Versatile Application Scenarios for Custom Rubber Valve Seats
★┊ Engineered for Dynamic Fluid Systems
Our custom-molded elastomeric valve seats provide secure sealing and alignment across critical fluid applications:
◌ Water Meters & Utilities: Highly elastic, chloramine-resistant EPDM seat inserts guarantee low-pressure sealing and dimensional stability in municipal water meters.
◌ Solenoid Valves: Precision-molded FKM or EPDM seats handle high-frequency cycling and fast solenoid plunger impacts, preventing gas or liquid bypass.
◌ Check Valves & Pumps: Thick-walled rubber seats act as guided check stops, matching standard metal balls or stems to prevent backflow in micro-pumps.
◌ Dispensers & Water Purifiers: Food-grade VMQ silicone valve seats provide contamination-free sealing inside home drinking systems and smart purifiers.
Bulk Packaging & Custom OEM-Ready Logistics

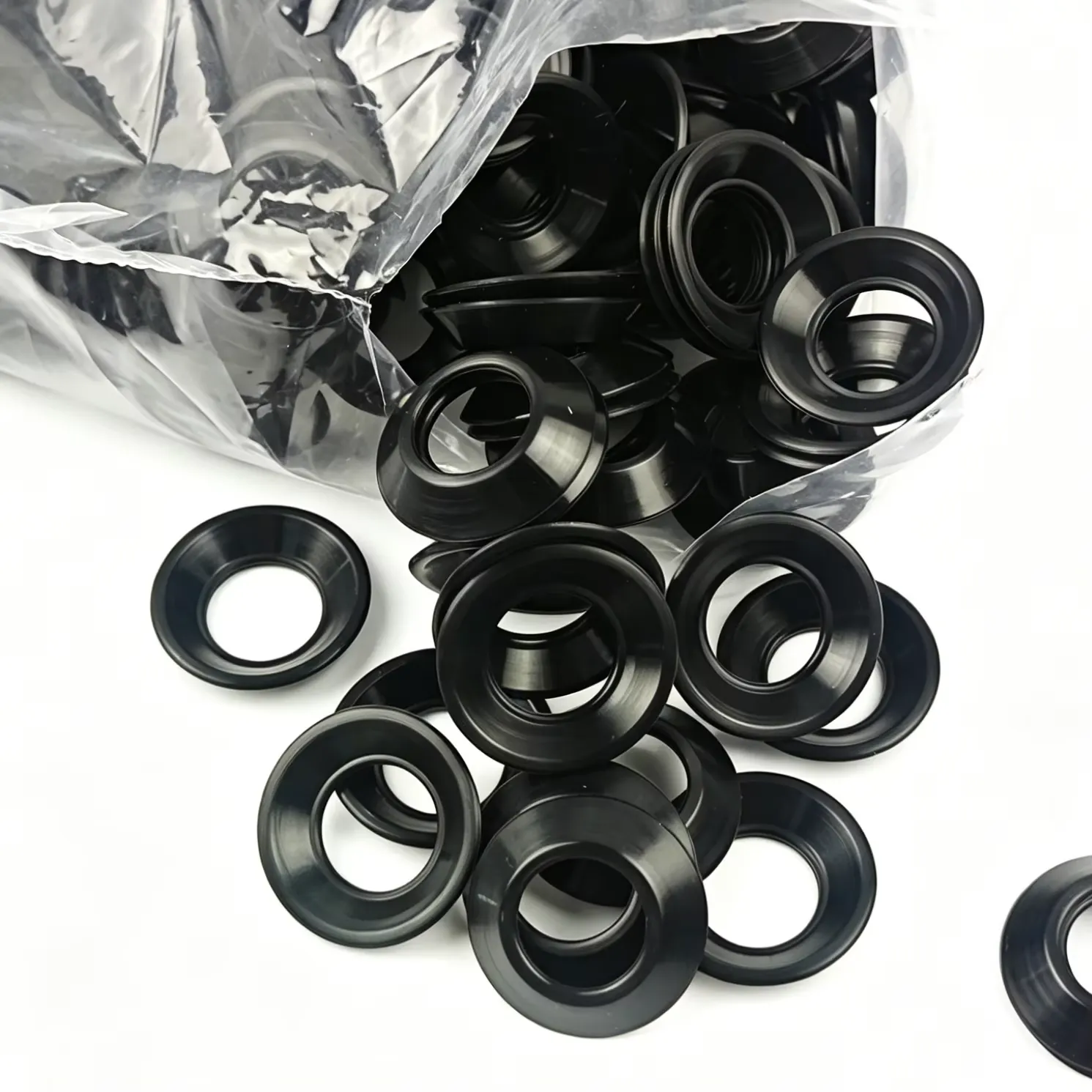

To support high-speed automated assembly lines and protect seat geometry, all valve seats are bulk-packed in dustproof PE bags inside double-walled corrugated boxes.
| Category | Packaging Details |
|---|---|
| Inner Protective Packaging | Sealed thick PE bags labeled with exact nominal sizes, compound batches, and custom OEM part numbers. |
| Outer Shipping Cartons | Double-walled corrugated shipping cartons, reinforced with corner protection and water-resistant wrap. |
| Palletization | Euro or standard pallets wrapped in protective plastic stretch film and secured with high-tension strapping. |
| OEM Logistic Customization: Custom packing counts, kitted sets, and barcode integration directly compatible with your warehouse systems. | |
🚚 Global Trade & Freight Methods
| Method | Details |
|---|---|
| Express Courier | DHL, FedEx, UPS (ideal for pipeline maintenance emergency parts and prototype samples) |
| Bulk Logistics | LCL/FCL ocean freight from Xiamen Port, or air freight cargo for urgent utility schedules |
| Trade Terms | FOB Xiamen Port, EXW, CIF, DDP (delivery directly to your warehouse or project depot) |
Compliance & Quality Management
Best Seal OEM Factory Statement:
1. We are a ISO and TUV certified factory.
2. We are specializing in rubber industry for over 20 years.
3. All our products can be RoHS, REACH, UL, Prop 65, FDA, 3A compliant.
4. Quality Managed to IATF 16949 Standards.
5. Strict AQL 0.25/0.40 Standards for Dimensional Accuracy.
Custom Rubber Valve Seat FAQ
❓ Why is peroxide-cured EPDM preferred for water meter valve seats?
Peroxide-cured EPDM offers superior resistance to chloramines and chlorine additives commonly used in public water purification. It exhibits much lower compression set and better long-term elastic retention compared to sulfur-cured EPDM, ensuring water meters remain leak-free over decades of continuous service.
❓ Can you custom-design a flared lead-in to match our solenoid plunger taper?
Yes. We match the internal lead-in angle of the rubber seat (e.g., 30°, 45°, or 60°) to the mating metal plunger taper. This precise geometry optimization maximizes contact surface area, reduces dynamic sealing stress, and prevents the plunger from sticking inside the seat.
❓ What options are available to reduce friction and sticking in dry-running check valves?
For systems with infrequent operations or dry start-ups, we can apply internal lubricants (like PTFE or silicone fluids) during the compounding stage. Alternatively, we can apply a post-mold halogenation (chlorination) or PTFE coating to the seat surfaces, lowering sliding friction and preventing plunger sticking.
