Custom Molded Stepped FKM Seal Rings & Flanged Viton Gaskets

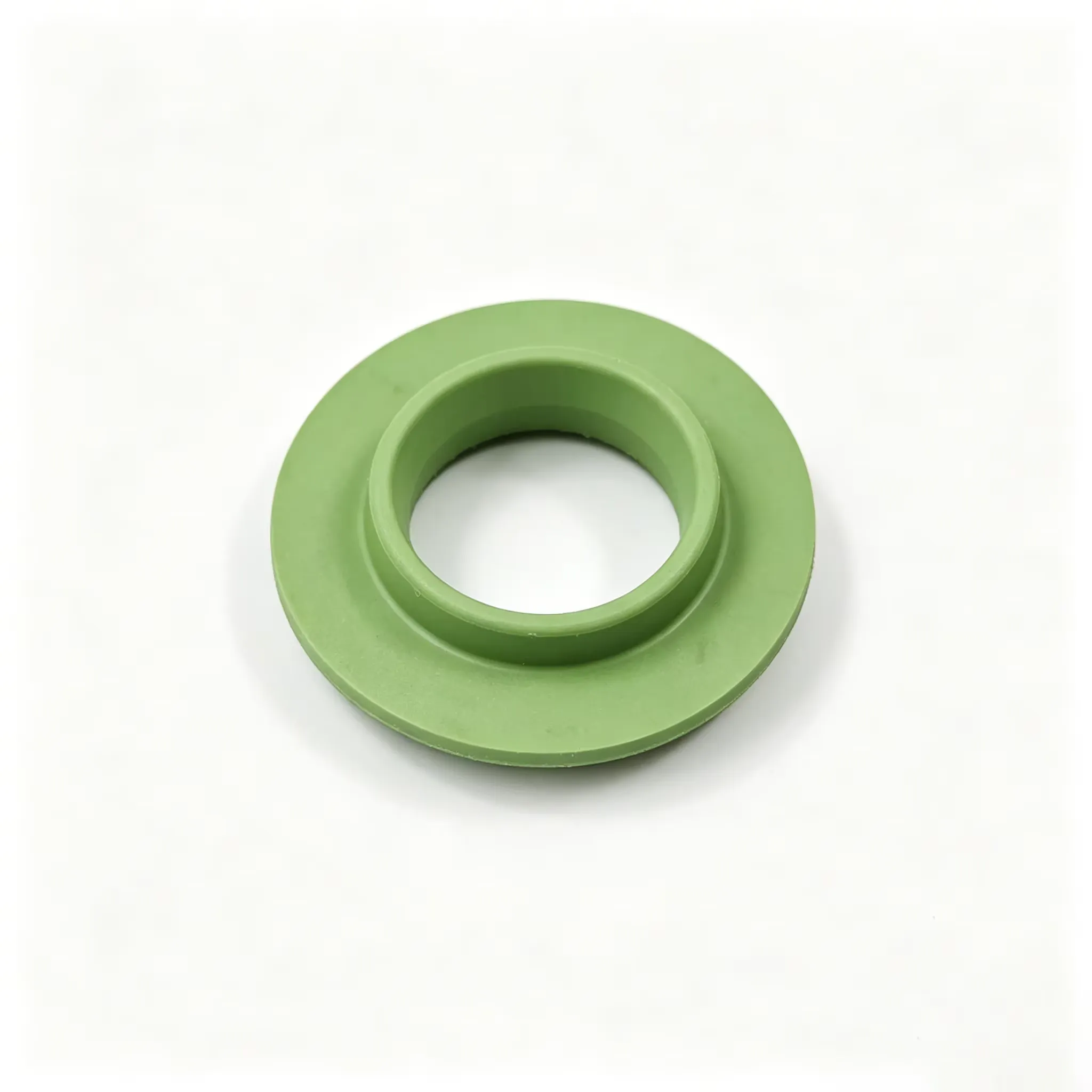

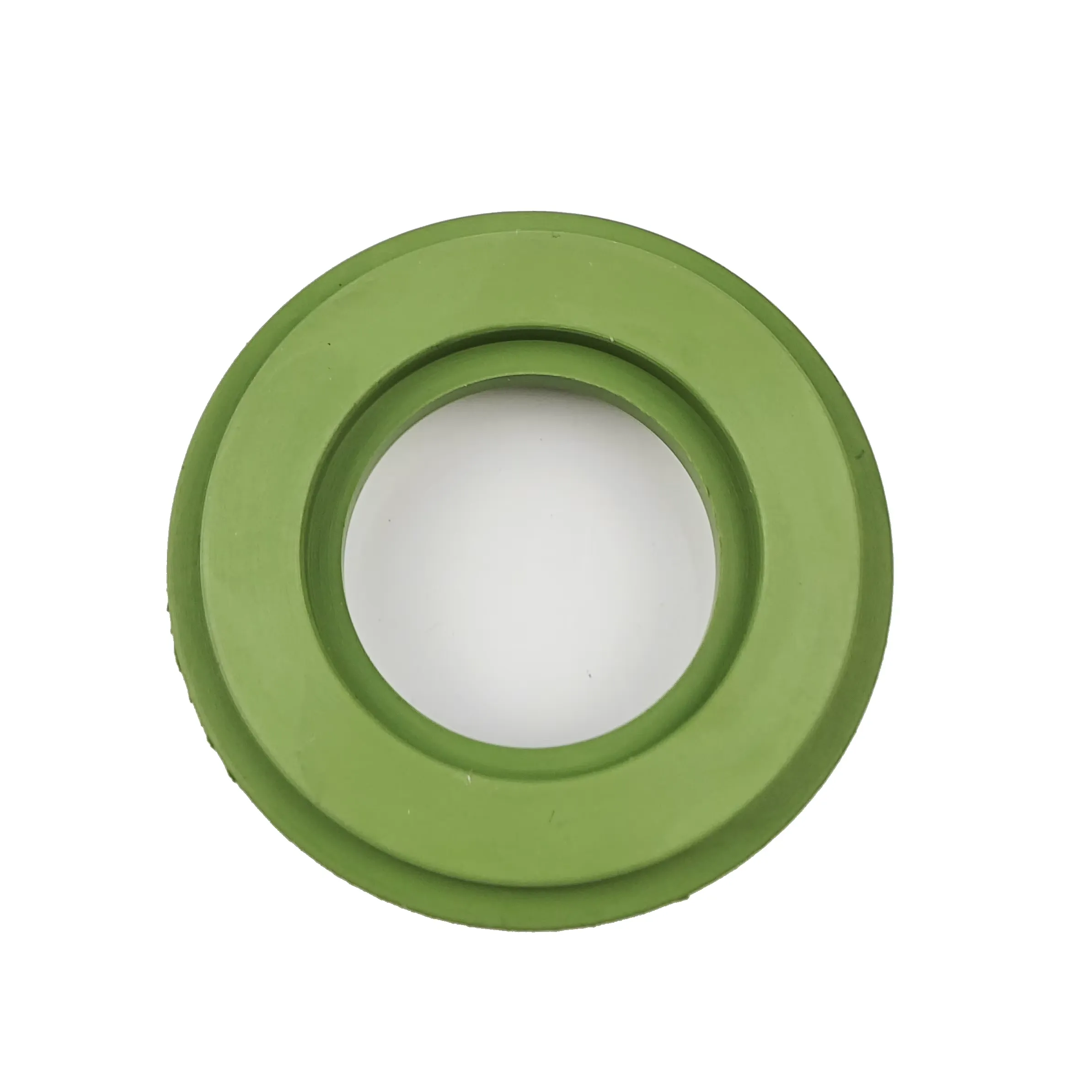

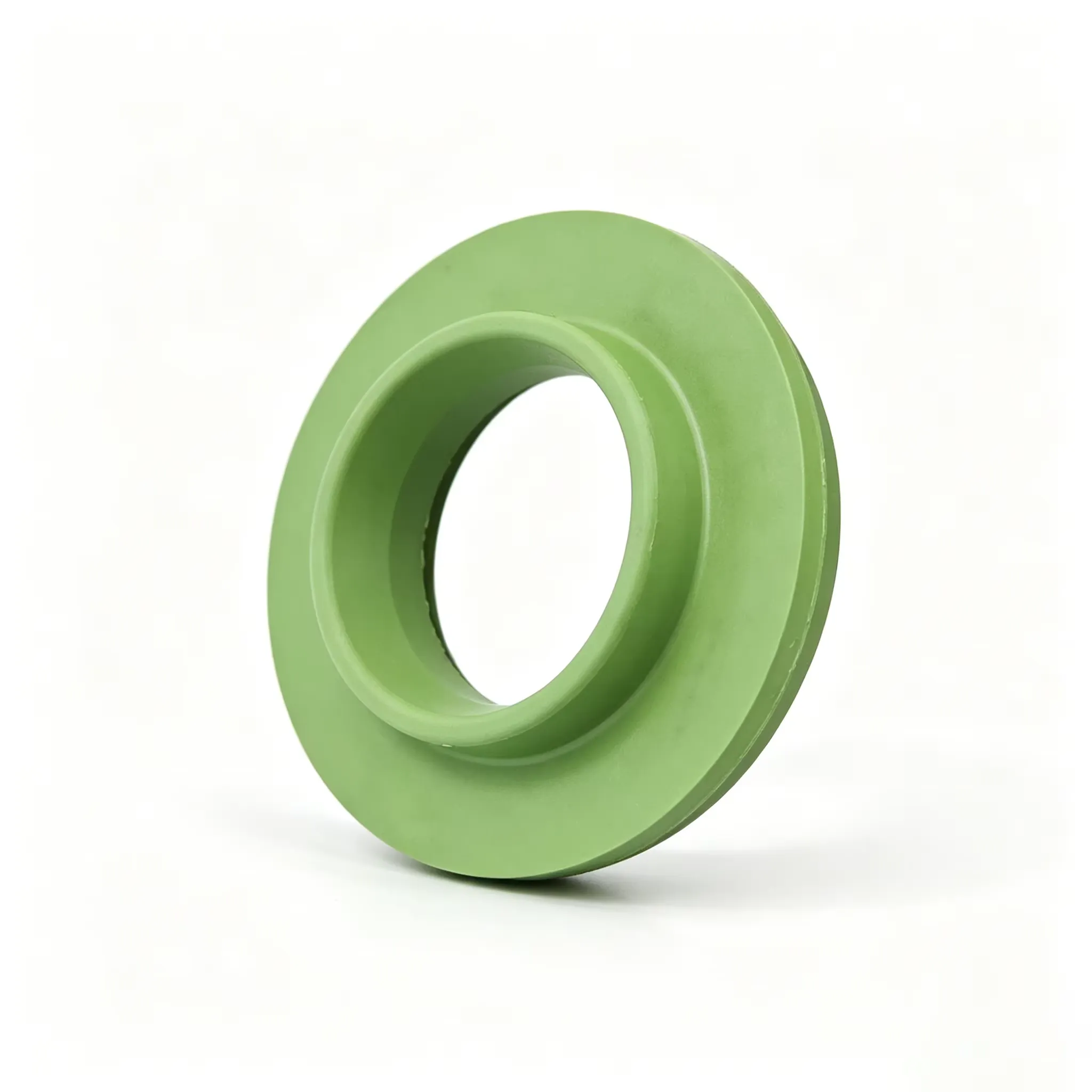

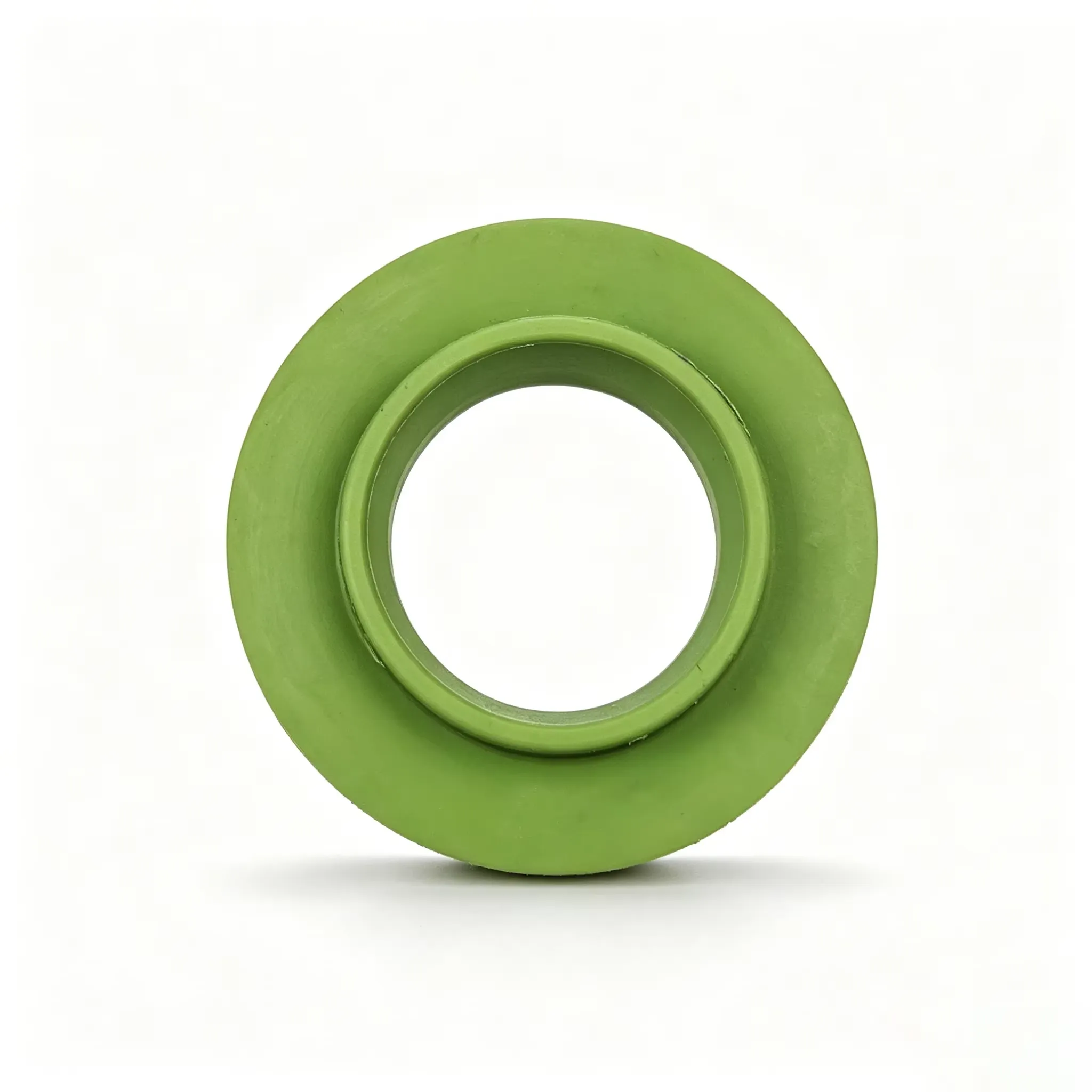

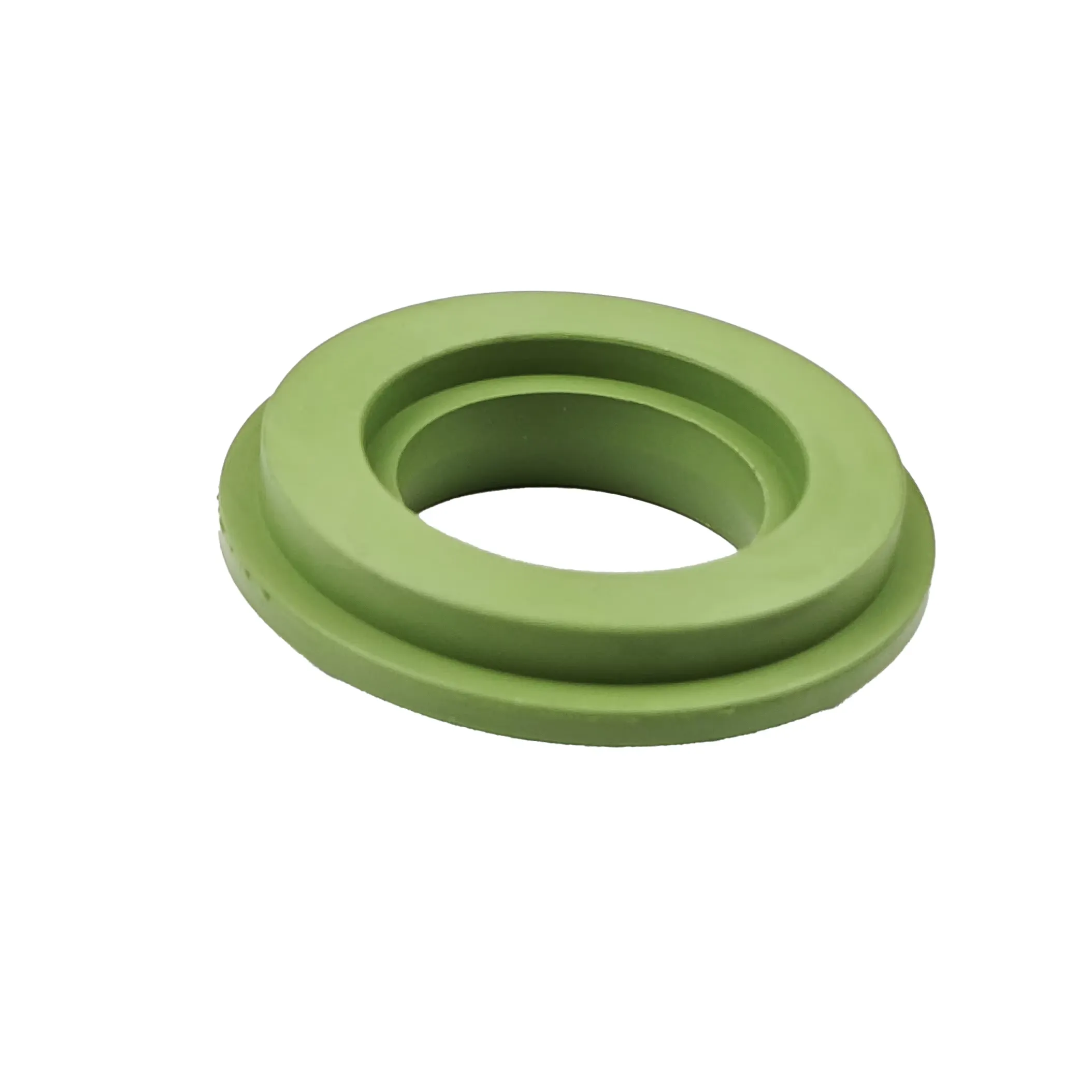

In high-pressure fluid manifolds, automotive fuel injection rails, and precision solenoid valves, conventional flat gaskets and O-rings often present critical assembly vulnerabilities. Standard flat washers lack positive radial centering, causing them to pinch or shift off-axis during flange bolt torquing. Standard O-rings, when exposed to dynamic pulsation, suffer from spiral twist and severe gap extrusion. The engineering solution is a custom-engineered, dual-function Stepped FKM Seal Ring (Flanged Viton® Bushing Gasket): an advanced component featuring an integrated locating neck that self-centers inside a counterbore while the outer radial flange delivers high-integrity compressive face sealing.
At Best Seal, we are an advanced Tier-1 OEM manufacturing partner specializing in 100% Custom Stepped FKM / Viton Rubber Seals. Operating from our ISO & TÜV Certified Facility, we do not force off-the-shelf standard sizes onto your blueprints. Our tooling engineers design precision CNC molds calculated to match your exact counterbore depths, pilot tolerances, and flange compression ratios. Compounded from virgin fluorocarbon elastomer (FKM/FPM) in an industry-standard matte light green finish (ideal for automated optical inspection and preventing assembly line mix-ups), these custom seals operate continuously from -20°C to +200°C under severe chemical, hydrocarbon, and synthetic lubricant exposure. Every custom production batch is verified under our Strict AQL 0.25/0.40 Quality Protocol, fully managed to IATF 16949 Automotive Standards.
Engineered for Precision Counterbore Interfaces
Every stepped seal is custom-molded to eliminate secondary metal backup rings and manual alignment fixtures during assembly:
🎯 Custom Self-Centering Locating Pilot
We customize the outer diameter and axial height of the protruding cylindrical pilot neck to match your housing's counterbore. This positive interference fit guarantees perfect coaxial alignment with the internal fluid port, eliminating seal pinch during automated robotic assembly.
🛡️ Anti-Extrusion Face Flange
The widened outer flange acts as the primary axial face seal. The stepped shoulder creates a robust elastomeric barrier that resists high-pressure fluid pulses, preventing the rubber from extruding into the clearance gap between mating metal flanges.
🟢 Visual Mistake-Proofing (Poka-Yoke)
In assembly plants using both NBR and FKM parts, standard black seals look identical. Our matte light green FKM masterbatch enables instant visual confirmation and automated camera validation that high-performance, heat-resistant fluorocarbon is installed.
Bespoke FKM Compound Engineering
We formulate virgin FKM compounds to match the exact temperature, fluid aggressiveness, and mechanical durometer your application requires:
| Customizable Parameter | Available OEM Ranges | Engineering Rationale |
|---|---|---|
| Hardness (Shore A) | 55 Shore A to 90 Shore A (70A & 75A standard) | Softer 60A durometers ensure reliable low-pressure sealing on cast or unpolished metal faces; firmer 80-85A compounds resist high-pressure extrusion in hydraulic manifolds. |
| Operating Temperature | -20°C to +200°C (Special low-temp GLT grades to -40°C) | Maintains elasticity and sealing force in turbocharger pipes, engine oil loops, and high-heat manifolds without thermal hardening. |
| Chemical Compatibility | Custom resistance to synthetic ATF, E10/E85 biofuels, diesel, and aggressive acids | Zero volumetric swelling or chemical softening when submerged in aggressive motor fluids, maintaining precise counterbore tolerances. |
| Color-Coding | Matte Apple Green, Industrial Black, Brown, Rust Red, Blue | Pigmented with high-temperature inorganic masterbatches to ensure zero degradation of tensile strength or chemical resistance. |
Tooling Precision for Multi-Diameter Stepped Profiles
Because a stepped gasket interfaces simultaneously with a counterbore diameter and an axial face, mold parting lines must be placed with extreme engineering precision. If parting-line flash exists on the locating neck or along the underside of the flange, the seal will sit cocked inside the counterbore, causing fluid channels and immediate leakage. At Best Seal, we build hardened CNC steel tooling with vacuum-assisted transfer molds that locate parting lines exclusively along non-sealing chamfers. This ensures micro-millimeter concentricity between the inner bore, locating pilot, and outer flange. Every production lot is validated under our Strict AQL 0.25/0.40 Quality Protocol, managed to IATF 16949 Standards.
Cross-Industry Component Integration
★┊ High-Integrity Fluid & Sensor Sealing
Our custom green FKM flanged step gaskets are specified across critical industries:
- ◌ Solenoid Valves & Manifolds: Stepped pilot seals positioned in valve cavities to direct fluid flow, damp armature vibration, and prevent internal cross-port bypass.
- ◌ Automotive Fuel & Oil Systems: Flanged FKM step washers sealing fuel rail pressure sensors, turbo oil return lines, and crankcase ventilation ports against aggressive vapors.
- ◌ Hydraulic Pump Flange Connections: High-pressure counterbore seals that resist pressure pulses and eliminate the need for secondary metallic backup rings.
- ◌ Pneumatic Control Instrumentation: Unitary bushing seals providing dual-surface isolation and dust/moisture ingress protection along actuator shafts.
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. We are an ISO 9001 and TÜV certified manufacturing facility. 2. Specializing in 100% custom multi-cavity tooling for stepped and flanged elastomeric profiles. 3. Formulations compliant with RoHS, REACH, and custom automotive OEM material specifications. 4. Quality Managed to IATF 16949 Standards for zero-defect automotive and fluid power production. 5. Strict AQL 0.25/0.40 Quality Protocol with 100% optical dimensional sorting available.
Custom Stepped FKM Seal Ring FAQ
❓ Why use a custom stepped rubber gasket instead of an O-ring with a backup ring?
An O-ring plus backup ring requires two separate components, increasing assembly cycle time and introducing the risk of missing or inverted parts on the line. A custom stepped FKM gasket is a single unitary component that provides built-in centering, face sealing, and anti-extrusion capability, drastically reducing assembly errors and overall component count.
❓ Can you customize the step height and flange thickness to our counterbore drawing?
Yes. We build all tooling in-house using high-precision CNC machining centers. We engineer the exact interference fit between the pilot neck and your counterbore depth/diameter, ensuring the flange compresses to the exact target squeeze ratio (typically 20% to 30%) when fully torqued down.
❓ What is the turnaround time for custom tooling of a new stepped seal geometry?
Because our mold design and CNC tooling are managed 100% in-house, prototype mold creation typically takes only 10 to 14 business days. First-article sample parts are delivered with full CMM inspection reports for dimensional sign-off prior to volume production.
