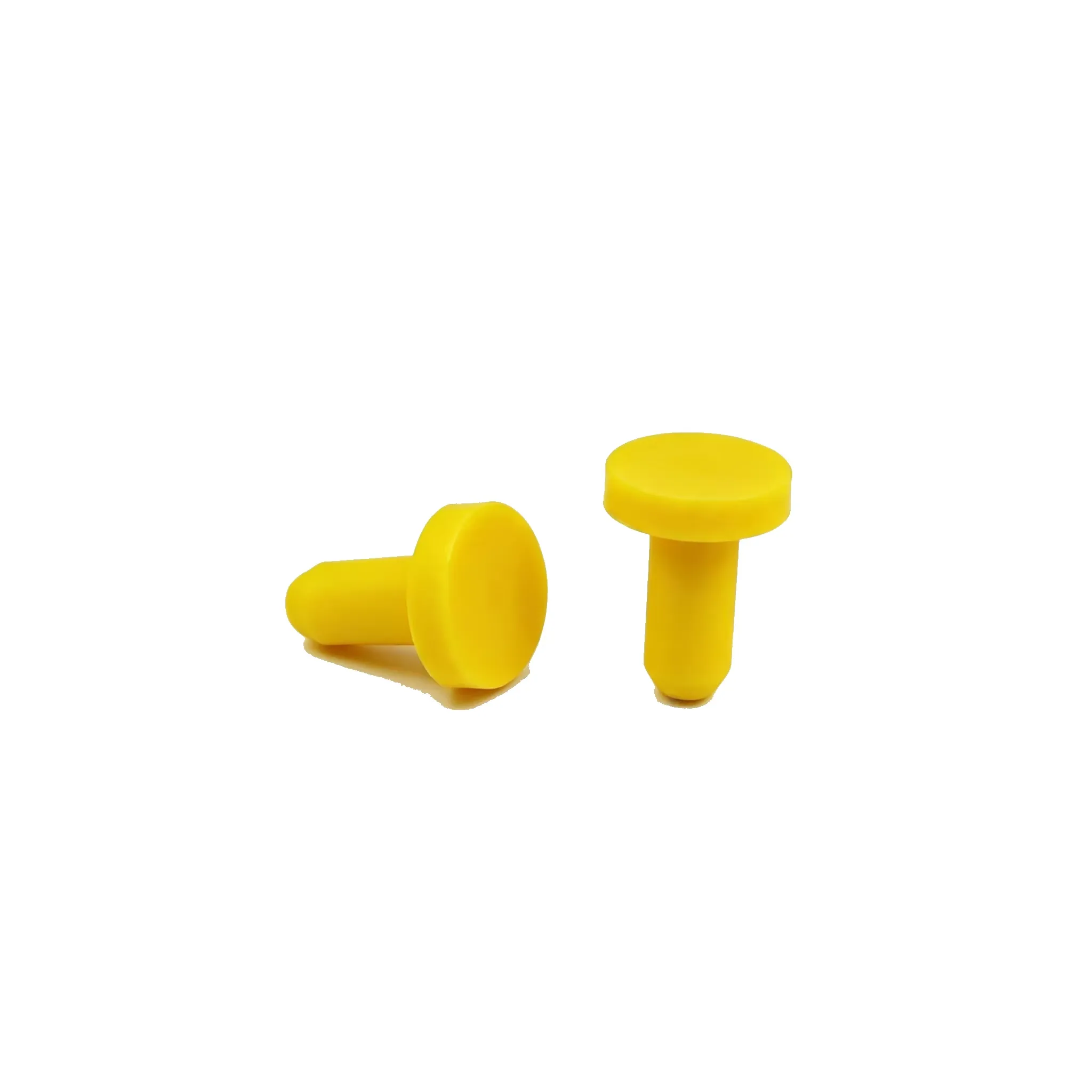

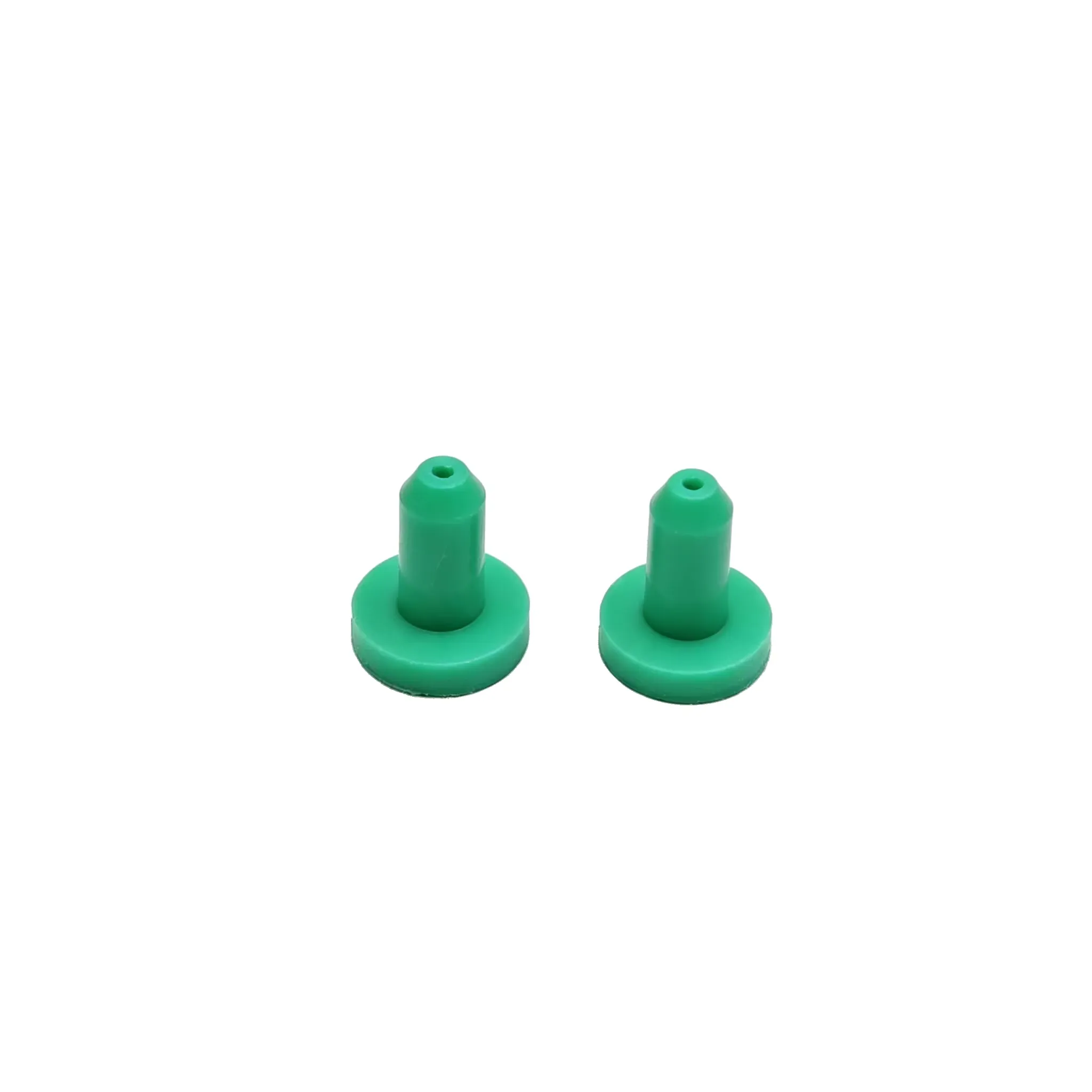

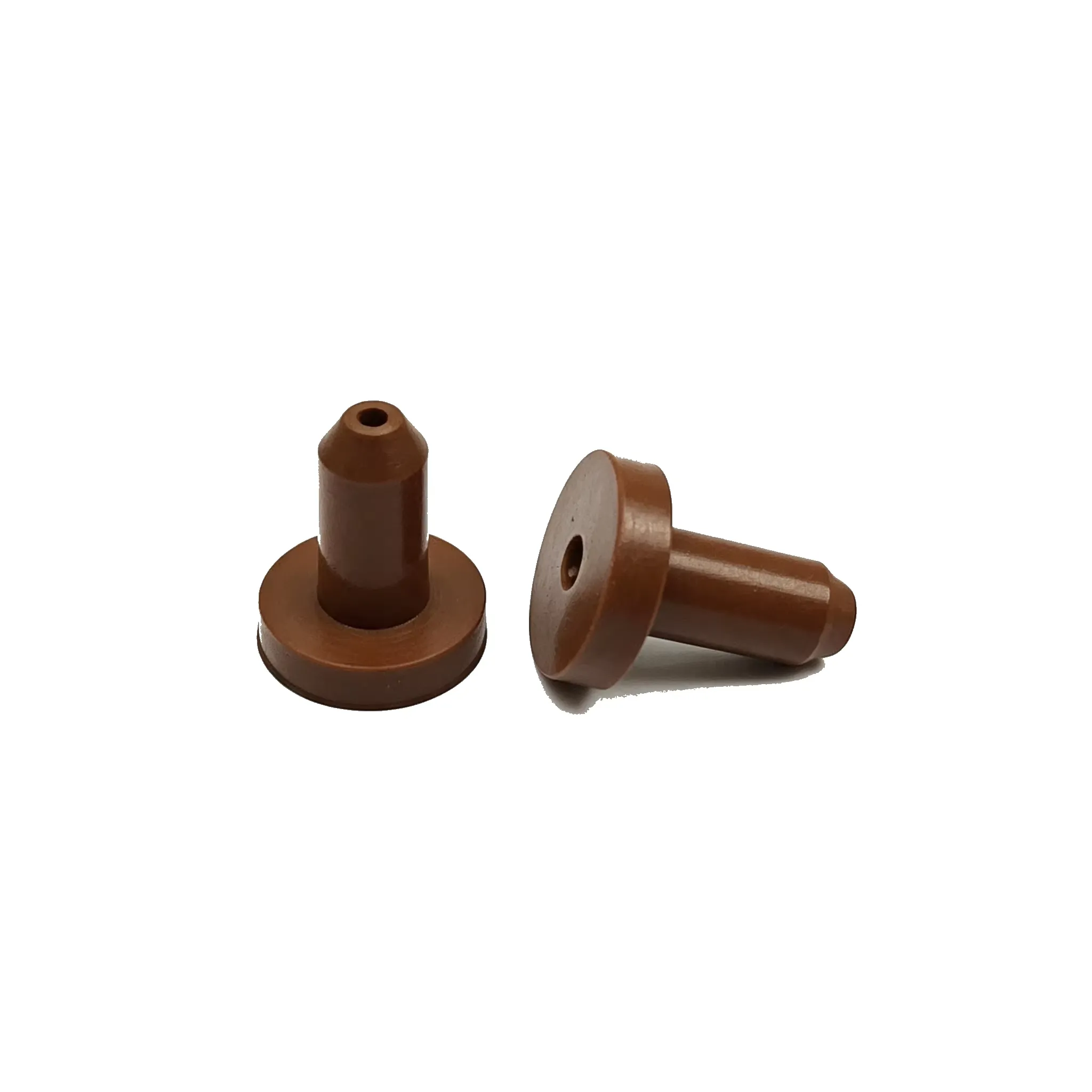

Custom Molded Fluorosilicone Bushings & Flanged Sleeves
In aerospace avionics, automotive turbocharger harness routing, and military fuel management systems, elastomeric pass-through components face a brutal contradiction of physical demands. Standard silicone rubber handles extreme thermal swings (-60°C to +200°C) but disintegrates when exposed to fuels and synthetic oils. Conversely, standard fluoroelastomers (FKM/Viton) resist aggressive fuels but become brittle and shatter in sub-zero high-altitude environments (-20°C). Fluorosilicone Rubber (FVMQ) resolves this engineering dilemma by synthesizing the broad thermal stability of a silicone backbone with the extreme chemical and hydrocarbon resistance of trifluoropropyl side chains.
At Best Seal, we are an advanced Tier-1 manufacturer specializing in Custom Fluorosilicone (FVMQ) Bushings and Flanged Sleeves. Operating from our ISO & TÜV Certified Facility, we precision-mold bespoke cylindrical ferrules featuring integrated wide-flange bases and precision center bores for wire harnesses, fluid tubes, and structural isolation pins. Whether you require specific Pantone-matched identification colors (brown, yellow, green, or blue) for complex aircraft harness assembly or custom cutting services to achieve exact axial lengths, we engineer to your precise CAD drawings. Every fluorosilicone component undergoes multi-stage post-cure conditioning to eliminate volatile cyclics and is validated under our Strict AQL 0.25/0.40 Quality Protocol, managed to IATF 16949 Automotive & Aerospace Standards.
Engineered Flanged Ferrule Architecture
A fluorosilicone sleeve is engineered for three simultaneous mechanical roles: precise structural positioning, continuous vibration isolation, and fluid-tight line protection:
🛡️ Integrated Flange Base
The widened bottom flange acts as a positive mechanical stop when pressed into sheet metal bulkheads, chassis panels, or bracket bores. It distributes compressive loads over a broader surface area, preventing the bushing from pulling through during dynamic wire harness movement.
🎯 Chamfered Lead-in & Center Bore
The cylindrical body features a radiused/chamfered top transition to ensure rapid, snag-free wire feeding during high-speed production. The internal bore is molded with micro-millimeter concentricity to maintain constant radial squeeze around passing cables or fuel lines.

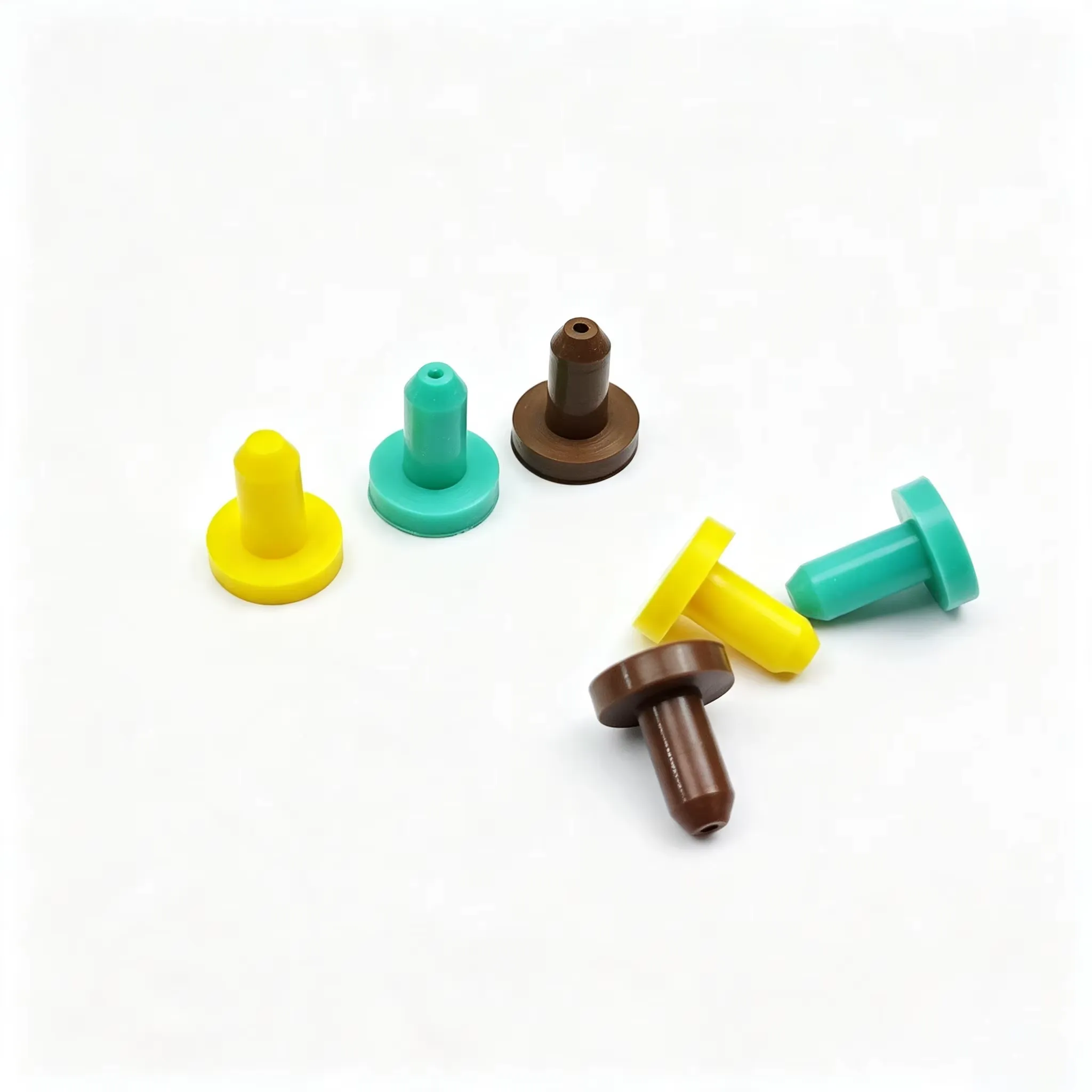

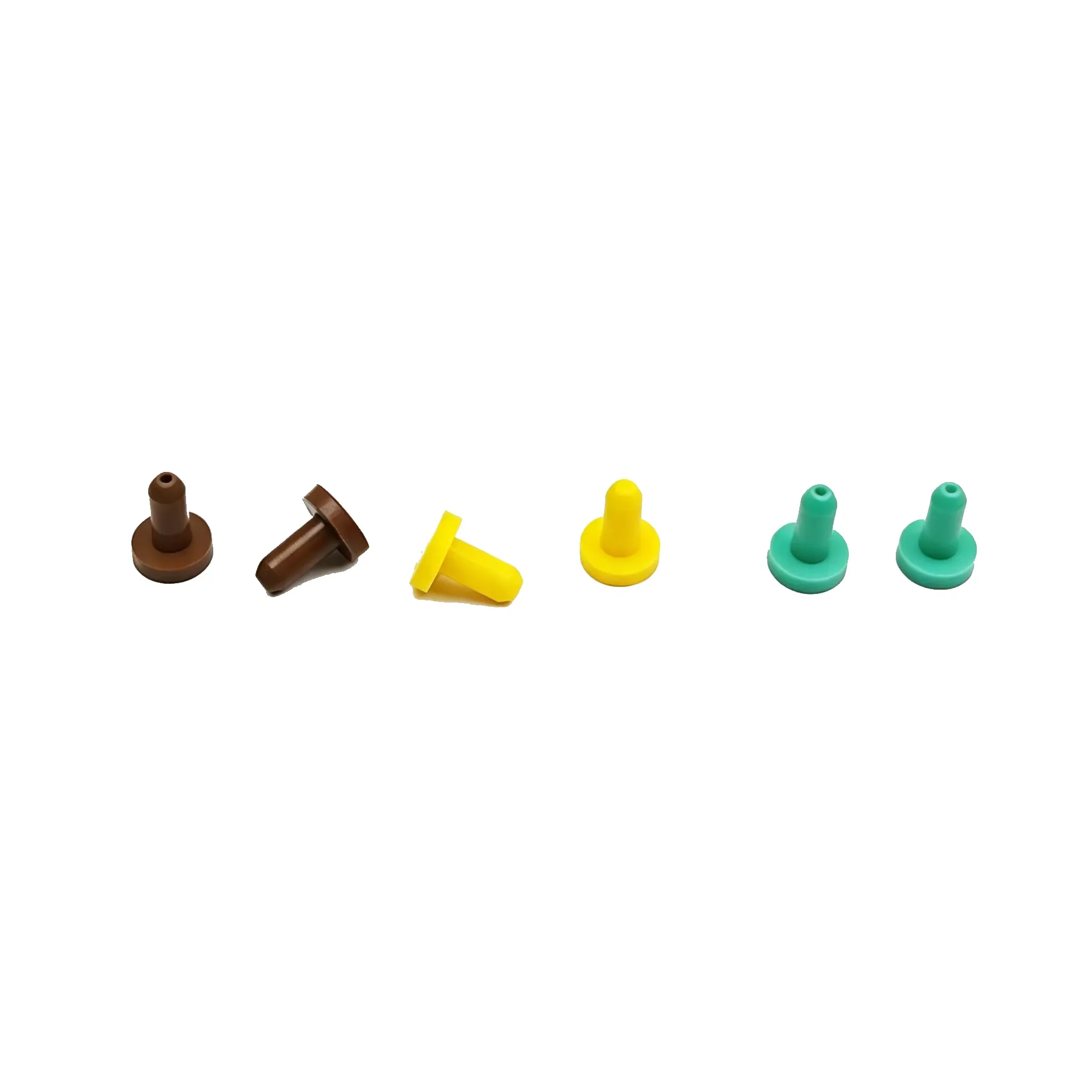

🎨 Visual Color-Coding & Custom Cutting
We formulate virgin FVMQ compounds in custom industrial colors (yellow, green, brown, blue, red) to facilitate rapid visual inspection and harness tracing in multi-branch wiring looms. We also provide precision automated cutting services to tailor sleeve lengths to exact stack heights.
Why Engineers Specify Fluorosilicone (FVMQ)
When operating environments combine sub-zero freezing temperatures with petroleum fuels and aggressive synthetic fluids, FVMQ is the only elastomer capable of surviving without mechanical degradation:
| Elastomer Grade | Operating Temp. | Hydrocarbon & Fuel Resistance | Engineering Trade-Off |
|---|---|---|---|
| Fluorosilicone (FVMQ) | -60°C to +200°C | Outstanding: Resistant to aviation jet fuel (JP-4, JP-8), gasoline, diesel, engine oils, and aromatic solvents. | The Benchmark. Highest material cost; superior dual-property resistance for critical aerospace and military applications. |
| Standard Silicone (VMQ) | -60°C to +230°C | Poor: Rapidly swells, softens, and dissolves upon contact with fuels and petroleum oils. | Cost-effective for high/low temp thermal sealing, but completely unusable near fuel or oil vapors. |
| Fluoroelastomer (FKM / Viton®) | -20°C to +200°C | Outstanding: Exceptional resistance to hot oils, fuels, and aggressive acids. | Loses elasticity and turns glass-brittle below -20°C, causing cold-start leakages in high-altitude environments. |
| Nitrile Rubber (NBR) | -30°C to +100°C | Good: Standard resistance to petroleum oils and mineral fluids. | Narrow temperature window; rapidly degrades under thermal stress, ozone, and outdoor UV exposure. |
The Critical Post-Curing Protocol for FVMQ
Raw molded fluorosilicone contains residual peroxide catalysts and low-molecular-weight volatile siloxanes. If not properly conditioned, these volatiles will slowly outgas inside sealed avionics boxes or sensor housings, causing optic fogging and electrical contact contamination. Best Seal implements a mandatory 4-to-8 hour high-temperature air-circulated post-cure cycle at 200°C for all custom FVMQ bushings. This process fully cross-links the polymer matrix, minimizes compression set, eliminates outgassing, and locks in long-term dimensional stability. Every batch is verified for Shore A hardness (typically 50A to 70A) and tensile properties under our Strict AQL 0.25/0.40 Quality Protocol, fully managed to IATF 16949 Standards.
Aerospace, Automotive & Defense Applications
★┊ Extreme Environment Wire & Tube Management
Our custom-molded FVMQ bushings are deployed in mission-critical hardware worldwide:
- ◌ Aerospace Wing & Fuel Cell Pass-Throughs: Flanged FVMQ ferrules insulating electronic fuel sensor harnesses inside aircraft fuel storage structures at -55°C high-altitude flight conditions.
- ◌ Automotive Turbo & Direct Injection Harnesses: Isolating delicate wiring from extreme engine bay heat, blow-by oil mist, and pressurized gasoline vapors.
- ◌ Military Ground Vehicle Bulkheads: Ruggedized, color-coded rubber sleeves protecting control lines passing through armored chassis plates exposed to diesel fuel splash and arctic freeze.
- ◌ Chemical Process Fluid Lines: Non-reactive, flanged guide sleeves damping vibration along stainless steel tubing carrying corrosive hydrocarbons and chemical reagents.
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. We are a ISO and TUV certified factory. 2. Specializing in high-precision mold tooling and custom cutting for FVMQ Fluorosilicone elastomers. 3. Formulations compliant with RoHS, REACH, and low-outgassing specifications. 4. Quality Managed to IATF 16949 Automotive Standards. 5. Strict AQL 0.25/0.40 Standards for micro-millimeter bore concentricity and flash-free surfaces.
Custom Fluorosilicone Bushing FAQ
❓ When should I choose Fluorosilicone (FVMQ) over standard FKM (Viton®)?
Choose Fluorosilicone when your operating environment involves temperatures below -20°C (down to -60°C) while simultaneously requiring fuel or hydrocarbon oil resistance. Standard FKM becomes stiff and brittle in freezing cold, which can cause cracking and loss of vibration damping. FVMQ maintains full flexibility and sealing integrity throughout the entire -60°C to +200°C temperature spectrum.
❓ Can you customize the sleeve length without cutting a brand new mold?
Yes. We offer secondary precision automated cutting services. We can mold the flanged sleeve at a standard extended length and use high-speed automated rotary blades to cut the cylindrical stem to your exact required axial dimension with clean, burr-free end faces, drastically saving on initial mold tooling costs.
❓ Does color-pigmenting fluorosilicone degrade its fuel or temperature resistance?
No. We utilize high-purity, inorganic, heat-stable masterbatch pigments specifically compounded for fluorosilicone polymers. Whether your bushings are molded in blue, green, yellow, or natural translucent, their mechanical tensile strength, chemical resistance, and thermal performance remain 100% unaffected.
