Custom Rubber Gaskets - Professional Sealing Solutions
Custom rubber gaskets are precision-engineered sealing components designed to prevent leakage of liquids, gases, and contaminants in critical applications. Manufactured from high-quality elastomers and composite materials, our custom gaskets deliver superior sealing performance, durability, and chemical resistance across sanitary, industrial, automotive, and piping systems worldwide.
1. What Are Custom Rubber Gaskets?
Definition and Function
A custom rubber gasket is a specialized sealing component placed between two mating surfaces to create a leak-proof barrier. Unlike standard gaskets, custom gaskets are engineered to exact specifications, matching unique dimensions, material requirements, and operating conditions of specific applications.
Primary Functions:
- Leak Prevention: Seals gaps between flanges, pipes, and equipment to prevent fluid or gas escape
- Contamination Control: Protects systems from external contaminants and maintains product purity
- Pressure Management: Withstands internal and external pressure fluctuations
- Vibration Dampening: Absorbs mechanical shock and reduces equipment wear
- Temperature Resistance: Maintains seal integrity across extreme temperature ranges
Why Custom Gaskets Are Essential
Standard gaskets cannot address the diverse challenges of modern industrial applications. Custom rubber gaskets offer:
- Precise Dimensional Fit: Eliminates installation gaps and ensures optimal sealing
- Application-Specific Materials: Matches chemical compatibility and temperature requirements
- Complex Geometry Solutions: Accommodates irregular shapes, multiple holes, and special features
- Cost Efficiency: Reduces downtime, maintenance costs, and system failures
- Regulatory Compliance: Meets FDA, NSF, WRAS, and industry-specific certifications

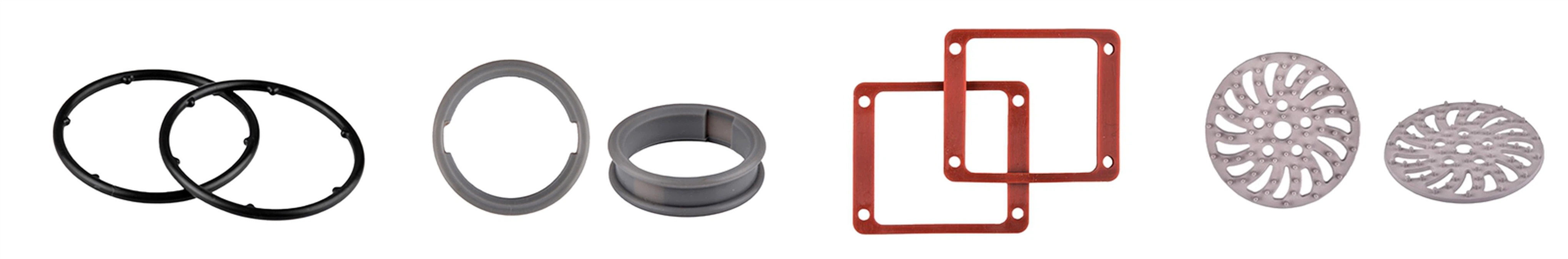

2. Custom Rubber Gasket Types
Sanitary Gaskets
- Applications: Food processing, beverage production, pharmaceutical manufacturing, biotech equipment
- Features: FDA-approved materials, smooth non-porous surfaces, resistance to cleaning chemicals and steam sterilization
- Common Types: Tri-clamp gaskets, DIN gaskets, SMS gaskets, IDF gaskets
Flange Gaskets
- Applications: Pipeline connections, pressure vessels, pumps, valves, industrial equipment
- Features: High-pressure resistance, custom bolt patterns, material compatibility with process fluids
- Standards: ANSI, DIN, JIS, BS flange dimensions
Flat Gaskets & Washers
- Applications: General industrial sealing, electrical enclosures, automotive assemblies, HVAC systems
- Features: Simple installation, cost-effective, available in any shape or thickness
- Options: Single-layer, multi-layer, reinforced versions
Strainer / Screen Gaskets
- Applications: Water treatment, filtration systems, process equipment
- Features: Precise centering hole, chemical resistance, maintains seal under flow conditions
- Designs: Round, square, or irregular perimeter shapes
Metal-Reinforced Gaskets
- Applications: High-pressure systems, extreme temperature environments, heavy-duty industrial equipment
- Features: Metal core with rubber coating, exceptional strength and sealing capability
- Materials: Steel, stainless steel, or aluminum core with NBR, EPDM, or FKM coating
Specialty Custom Gaskets
- Applications: Unique equipment designs, prototype development, specialized industries
- Features: Complex geometries, integrated features (lips, grooves, channels), multi-material construction
- Capabilities: 3D design support, rapid prototyping, low-volume custom production
3. Custom Rubber Gasket Materials
Standard Elastomer Materials
| Material | Temperature Range | Key Properties | Typical Applications |
|---|---|---|---|
| NBR (Nitrile Rubber) | -40°C to +120°C | Excellent oil resistance, good mechanical properties | Automotive, hydraulic systems, fuel lines |
| EPDM | -50°C to +150°C | Outstanding weather, ozone, and steam resistance | Water systems, HVAC, food-grade applications |
| FKM (Viton®) | -20°C to +230°C | Superior chemical and high-temperature resistance | Chemical processing, aerospace, oil & gas |
| VMQ (Silicone) | -60°C to +230°C | Extreme temperature flexibility, biocompatibility | Medical devices, food processing, pharmaceuticals |
| HNBR | -40°C to +150°C | Enhanced strength and heat resistance vs. NBR | Automotive turbochargers, oil field equipment |
| CR (Neoprene®) | -40°C to +120°C | Balanced oil, weather, and flame resistance | General industrial, refrigeration, construction |
| IIR (Butyl Rubber) | -50°C to +130°C | Excellent gas impermeability, weather resistance | Pharmaceutical stoppers, gas sealing |
High-Performance Materials
| Material | Temperature Range | Key Properties | Typical Applications |
|---|---|---|---|
| PTFE (Teflon®) | -200°C to +260°C | Universal chemical resistance, lowest friction | Aggressive chemicals, semiconductor, pharmaceutical |
| FFKM (Perfluoro) | -15°C to +320°C | Ultimate chemical and thermal resistance | Extreme conditions, semiconductor processing |
Special Compound Options
- Internally Lubricated Compounds: Paraffin, PTFE, silicone, or graphite additives for reduced friction and easy installation
- Electrically Conductive Compounds: Carbon black or metal fillers for EMI/RFI shielding and static dissipation
- UL-Approved Compounds: Fire-resistant materials meeting UL 94 flammability standards
- Low Compression Set Formulations: Maintain sealing force over extended service life
Surface Treatment Options
- Talc Powder Treatment: Prevents sticking during storage and handling
- Silicone Oil Treatment: Reduces friction for easy installation
- PTFE Coating: Adds chemical resistance and lubricity
- PSA (Adhesive Backing): Single or double-sided adhesive for secure positioning
4. Manufacturing Methods for Custom Gaskets
We employ multiple manufacturing processes to deliver optimal solutions for every custom gasket requirement:
| Manufacturing Method | Advantages | Limitations | Typical Applications |
|---|---|---|---|
| Die Cutting | • Low cost per piece • High efficiency for volume production • Consistent flatness and dimensions • Fast turnaround |
• Requires cutting die tooling • Not suitable for thick or 3D structures • Limited to 2D shapes |
Flat gaskets, washers, gaskets with multiple bolt holes, thin sheet seals |
| Compression Molding | • Complex 3D geometries • Variable thickness capability • Excellent sealing performance • Integrated features (lips, grooves) |
• Higher tooling cost • Longer lead time • Minimum order quantities may apply |
Gaskets with lips, stepped designs, O-ring grooves, complex sealing profiles |
| Extrusion | • Continuous profile production • High material utilization • Consistent cross-section • Cost-effective for long seals |
• Requires secondary splicing • Limited to uniform cross-sections • Corner vulcanization needed |
Frame gaskets, door seals, continuous strip gaskets, rectangular seals |
| CNC / Lathe Cutting | • No tooling required • High precision (±0.05mm) • Suitable for thick parts • Rapid prototyping capability |
• Higher per-piece cost • Lower production efficiency • Material waste |
Thick ring gaskets, prototype gaskets, low-volume custom designs, precision components |
| Water Jet Cutting | • No heat-affected zone • Complex shapes • No tooling costs • Multi-layer cutting |
• Slower than die cutting • Surface texture variation • Higher cost for volume |
Prototype gaskets, complex irregular shapes, multi-material laminates |
Manufacturing Selection Guide: Our engineering team recommends the optimal manufacturing method based on your gasket design, quantity requirements, budget, and timeline. We provide technical consultation to ensure the best balance of quality, cost, and delivery.
5. Applications of Custom Rubber Gaskets
Applications of Custom Rubber Gaskets
❶.Sanitary Systems
- Food processing
- Beverage equipment
- Pharmaceutical & biotech systems
❷.Piping Systems
- Flange connections
- Pipe sealing
- Pumps & valves
❸.Industrial Equipment
- Machinery
- Electrical enclosures
- HVAC systems
- Water treatment & filtration
❹.Automotive & Energy
- Automotive sealing
- Electric vehicle battery systems
6. Custom Gasket Design Process
Step-by-Step Custom Development
Step 1: Requirement Analysis
- Understand your application, operating conditions, and performance requirements
- Review drawings, samples, or equipment specifications
- Discuss quantity, timeline, and budget expectations
Step 2: Material Selection
- Recommend optimal elastomer based on temperature, chemical exposure, and pressure
- Consider certifications required (FDA, NSF, WRAS, etc.)
- Evaluate hardness, compression set, and mechanical properties
Step 3: Design Engineering
- Create or optimize CAD drawings for manufacturability
- Perform seal compression analysis and stress calculations
- Design for proper installation and long-term performance
Step 4: Prototyping & Testing
- Produce initial samples using rapid manufacturing methods
- Conduct dimensional inspection and material testing
- Validation in actual operating conditions when possible
Step 5: Production & Quality Control
- Scale to production tooling and processes
- Implement 100% dimensional inspection and visual checks
- Batch testing for material properties and performance
Step 6: Delivery & Support
- Secure packaging to prevent damage during shipping
- Installation guidance and technical documentation
- Ongoing support and continuous improvement
7. Why Choose Our Custom Rubber Gaskets
❶.Precision Manufacturing Excellence
- Burr-Free & High Precision: Smooth edges, tight tolerances (±0.05mm to ±0.20mm), accurate dimensions for easy installation and reliable sealing
- Advanced Equipment: State-of-the-art die cutting, molding presses, CNC machines, and inspection systems
- Skilled Workforce: Experienced engineers and technicians with decades of sealing expertise
❷.Superior Sealing Performance
- Leak-Proof Reliability: Maintains sealing integrity under pressure, temperature variations, and chemical exposure
- Long Service Life: Low compression set materials ensure sustained sealing force over years of operation
- Wide Operating Range: Materials available from -60°C to +320°C and pressures up to 40 MPa
❸.Cost-Effective Solutions
- Factory Direct Pricing: No intermediaries, competitive pricing without compromising quality
- Flexible MOQ: Support for small batch prototypes to large volume production
- Reduced Total Cost: Longer gasket life means fewer replacements and less downtime
❹.Comprehensive Customization
- One-Stop Custom Solutions: From concept to delivery, we handle all aspects of custom gasket development
- Material Expertise: 20+ elastomer compounds and special formulations available
Packaging & Shipping
📦 Packaging Options：
Standard Packaging:
- Sealed PE bags
- Inner cartons with protective layers
- Pallet packing for bulk shipment
Custom Packaging (Available on request):
- Small pouch / small bag packing
- Individual heat-sealed plastic bag with cardboard backing
- Individual bubble-wrap protection
- Light-proof black packaging
- Customized labeling or barcodes
🚚 Shipping Methods
- DHL / FedEx / UPS express
- Air freight for urgent orders
- Sea freight for bulk orders
- FOB / CIF / DDP trade terms available
Certification
Our gaskets comply with major international standards, including:
ISO 9001, ASTM D2000, FDA, NSF, WRAS, RoHS, REACH, CE, UL.
All materials are fully tested for physical, chemical, and hygienic performance to ensure long-term reliability in sanitary and industrial systems.
Medical rubber gaskets provide stable, clean, and safe sealing performance for the most demanding healthcare environments, supporting long-term reliability and product integrity.
