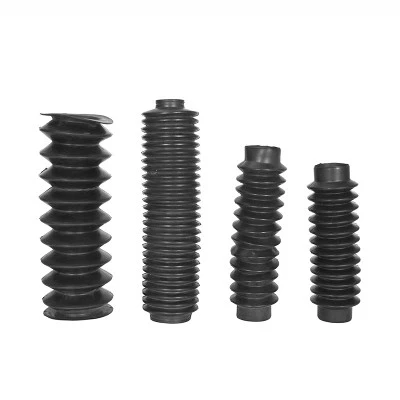

Custom Molded Silicone Bellows & Flexible Accordion Boots (VMQ)
Across precision weighing and filling machinery, food-grade processing lines, robotic articulation joints, and medical instrumentation, flexible protective boots must meet a uniquely demanding convergence of requirements: extreme temperature cycling, chemical inertness, regulatory purity compliance, and indefinite fatigue life. Standard EPDM and Neoprene compounds fail under sustained high heat; standard Nitrile (NBR) is incompatible with food-contact and body-fluid regulations. Custom Molded Silicone Bellows (VMQ / Silicone Rubber Accordion Boots & Flexible Dust Gaiters) represent the definitive high-performance solution - delivering exceptional thermal stability from cryogenic cold to sustained high heat, ultra-low compression set, unrivaled biocompatibility, and outstanding long-cycle fatigue resistance engineered for demanding dynamic applications.
At Best Seal, we are a specialized Tier-1 OEM/ODM manufacturing partner with over 20 years of precision rubber molding experience, producing 100% Custom-Molded Silicone Rubber Bellows strictly engineered to your 3D CAD blueprints and dimensional drawings. Operating from our ISO 9001 & TÜV Certified Facility, our dedicated toolmakers machine high-precision multi-cavity CNC molds to RMA A2 Precision Molding Tolerances. We formulate virgin VMQ silicone compounds - from general-purpose platinum-cured grades to FDA-compliant food-contact and 3A Sanitary-certified formulations - all managed to IATF 16949 Standards, backed by complete PPAP Level 3 documentation and Strict AQL 0.25/0.40 quality verification.
Superior VMQ Silicone Performance Advantages
Polydimethylsiloxane (VMQ) chemistry delivers a unique combination of physical and regulatory properties that no hydrocarbon-based elastomer can match. We engineer bespoke mold architectures to maximize dynamic service life:
Extreme Wide-Range Thermal Stability
Maintains full elasticity and sealing integrity from -50°C to +200°C (high-temp grades to +230°C), resisting thermal hardening, brittle fracture, and permanent compression set through thousands of daily heat cycles.
Outstanding Flex Fatigue & Rebound
The Si–O backbone delivers superior resilience and ultra-low hysteresis, enabling silicone bellows to withstand millions of full-stroke compression and extension cycles without permanent deformation or crack initiation at convolution roots.
FDA, 3A & Biocompatibility Compliance
Platinum-cured VMQ grades formulated free of peroxide by-products, heavy metal catalysts, and extractable plasticizers. Certified compliant with FDA 21 CFR, 3A Sanitary Standards, RoHS, REACH, and California Prop 65.
Custom Structural Geometries & Configurations
Best Seal manufactures four primary custom silicone bellows configurations tailored to your specific mechanical kinematics and installation envelope:
Convoluted Accordion Bellows - Flanged Ends
Symmetrical V-profile convolutions (4–6 pitches) with reinforced flanged collar ends for hose-clamp, zip-tie, or snap-groove retention. Standard for silicone weighing bellows, automated filler machine flex joints, and robotic arm cable management.
Tapered Conical Silicone Dust Boots
Multi-diameter stepped-taper profiles engineered for automotive EV drive shaft gaiters, precision laboratory linear actuators, and medical imaging table positioning assemblies requiring compact lateral footprint.
Flat-End Tube Flexible Silicone Bellows
Straight end-bore profiles with precision-molded inner diameter tolerances for hygienic inline tube connections in pharmaceutical dispensing, beverage filling, and CIP/SIP (Clean-in-Place / Sterilize-in-Place) processing lines.
Custom Multi-Lobe & Asymmetric Profiles
Non-standard elliptical, square-bore, or multi-lobe convolution geometries for load cell isolation pads in precision weighing systems, robotic end-effector seals, and custom analytical instrument enclosures - engineered to your exact CAD geometry.
Silicone (VMQ) Compounding & Grade Selection Matrix
We custom-formulate specialized VMQ silicone grades tailored to exact thermal, regulatory, and mechanical service requirements:
| VMQ Silicone Grade | Temp. Range | Core Engineering Strengths | Target Applications |
|---|---|---|---|
| General-Purpose Platinum-Cured VMQ | -50°C to +200°C | Balanced Dynamic Workhorse. Ultra-low compression set, excellent rebound, wide thermal range, and good chemical resistance. | Silicone weighing bellows, robotic arm boots, automotive sensor gaiters. |
| FDA / 3A Sanitary-Grade VMQ | -50°C to +200°C | Food & Pharmaceutical Purity. Free of peroxide by-products; compliant with FDA 21 CFR §177.2600, 3A Sanitary Standards, and EU EC1935/2004. | Food filling machine flex joints, pharma dispensing bellows, beverage tube connectors. |
| High-Temperature VMQ (HTV Grade) | -50°C to +230°C | Sustained Oven & Autoclave Endurance. Resists repeated steam sterilization (134°C autoclave cycles), oven proximity exposure, and hot-air convection environments. | Steam sterilizer door seals, lab oven flex connectors, autoclave bellows, bakery machinery. |
| Colored / Pigmented VMQ Grades | -50°C to +200°C | Custom Color-Coding & Visual ID. Available in grey, orange, blue, green, red, or any RAL/Pantone-matched color using FDA-compliant pigment systems. Color does not degrade mechanical properties. | Multi-zone machine identification, medical device color coding, robotics cable management. |
In-House Tooling & RMA A2 Precision Inspection
Silicone's low viscosity and high thermal expansion coefficient demand exacting mold design discipline. Best Seal's in-house CNC and EDM mold shop machines hardened steel multi-cavity tooling to RMA A2 Precision Tolerances, with vacuum-assisted cavity filling eliminating porosity in thin-wall convoluted sections. We translate your 3D CAD STEP files into production-grade tooling with custom first-article sample delivery in 10 to 14 business days. All serial production runs are compression or transfer molded using calibrated press cycles with automated cryogenic deflashing, and 100% validated under our Strict AQL 0.25/0.40 Quality Protocol, managed to IATF 16949 Standards.
Food, Medical, Robotic & Industrial Applications
★┊ Hygienic, High-Temperature & Precision Dynamic Protection
Our custom silicone rubber bellows deliver reliable flexible protection and hygienic sealing across critical regulated and high-performance sectors:
- ◌ Weighing & Filling Machinery: Silicone weighing bellows isolating load cell platforms in checkweighers, multi-head weighers, and liquid filling machines from vibration and product contamination.
- ◌ Food Processing & Beverage: FDA and 3A certified silicone accordion boots for CIP/SIP-compatible tube flex joints, hopper discharge seals, and conveyor transition covers.
- ◌ Medical & Pharmaceutical: Biocompatible silicone bellows for sterilizer door mechanisms, laboratory analytical instruments, infusion pump actuators, and diagnostic imaging positioners.
- ◌ Industrial Robotics & Automation: Multi-color silicone accordion boots for robot arm joint covers, linear actuator rod gaiters, and servo motor cable management on high-cycle assembly lines.
- ◌ Automotive & EV Systems: High-temperature silicone bellows for electric vehicle drive shaft gaiters, thermal barrier boots, and proximity sensor protective covers near exhaust and battery thermal zones.
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. ISO 9001 and TÜV certified manufacturing facility with 20+ years of precision rubber molding expertise. 2. 100% custom mold tooling manufactured to RMA A2 precision tolerances using in-house CNC and EDM mold shop. 3. VMQ silicone material library fully compliant with FDA 21 CFR, 3A Sanitary Standards, RoHS, REACH, UL, and California Prop 65. 4. Quality managed to IATF 16949 Standards with PPAP Level 3 documentation and IMDS submissions supported. 5. Strict AQL 0.25/0.40 Quality Protocol with 100% optical dimensional inspection and CMM reporting available.
Custom Silicone Bellows FAQ
❓ Why choose Silicone (VMQ) over EPDM or Neoprene for bellows?
Silicone (VMQ) outperforms EPDM and Neoprene in three critical areas: sustained high-temperature service (continuous to +200°C vs. +130°C for EPDM), FDA and 3A biocompatibility compliance for direct food and pharmaceutical contact, and superior long-cycle flex fatigue life in high-frequency dynamic applications such as weighing and filling machinery. For applications requiring a balanced outdoor + moderate oil resistance workhorse, Neoprene remains appropriate; for extreme temperature and hygiene compliance, VMQ silicone is the definitive choice.
❓ Are your silicone bellows FDA-compliant for food and beverage contact?
Yes. Our food-grade silicone bellows are formulated using platinum-cured VMQ compounds certified compliant with FDA 21 CFR §177.2600, 3A Sanitary Standards, and EU EC 1935/2004 food-contact material regulations. Raw material compliance documentation, extraction test reports, and material data sheets are available upon request as part of our PPAP Level 3 package.
❓ Can silicone bellows be produced in custom colors?
Yes. We produce custom silicone accordion bellows in any required color - including grey, black, orange, blue, green, red, or any RAL / Pantone-matched specification - using FDA-compliant pigment systems that do not compromise tensile strength, elongation, or temperature resistance. Color-coding is widely used in multi-zone machinery, robotics, and medical device manufacturing for quick visual zone identification.
❓ What is the standard tolerance and lead time for custom silicone bellows tooling?
All custom-molded silicone rubber bellows produced by Best Seal are inspected to RMA A2 Precision Tolerances. With our dedicated in-house CNC and EDM mold shop, custom multi-cavity prototype tooling and first-article samples are delivered within 10 to 14 business days, accompanied by full CMM dimensional inspection reports and material compliance certificates.
