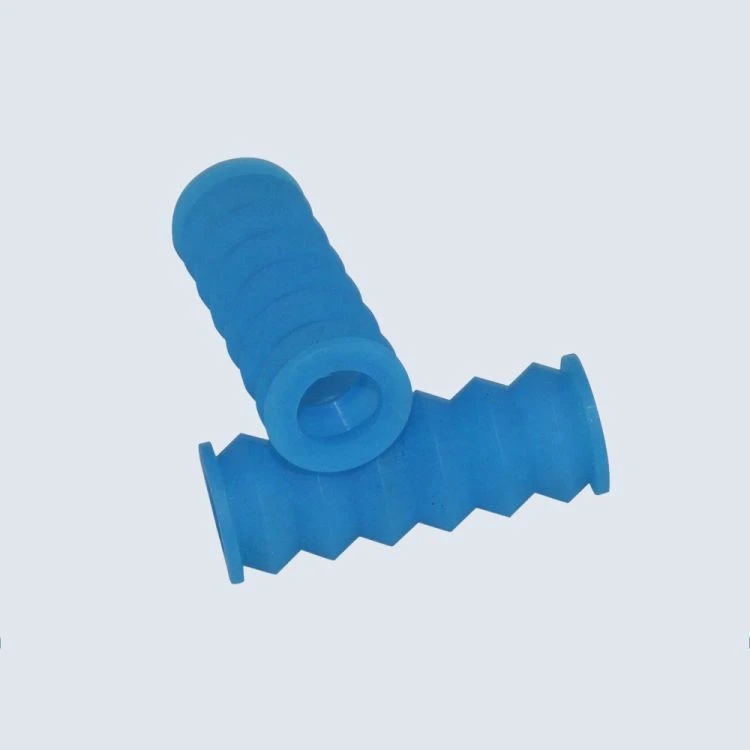

Custom Flexible Rubber Bellows - Precision Engineered Dynamic Expansion Boots & Flex Joints
In dynamic mechanical systems, the word flexible is not a vague descriptor - it is a precise engineering specification. A truly high-performance flexible rubber bellows must sustain millions of full-stroke cycles without crack initiation at convolution roots, accommodate simultaneous axial compression, lateral shear, and angular deflection, and maintain hermetic sealing under continuous vibration - all without permanent deformation or dimensional creep. Generic off-the-shelf flexible bellows sourced from catalogue stock routinely fail under these combined loading conditions because their convolution geometry, wall thickness distribution, and compound formulation were never engineered for your specific kinematic envelope.

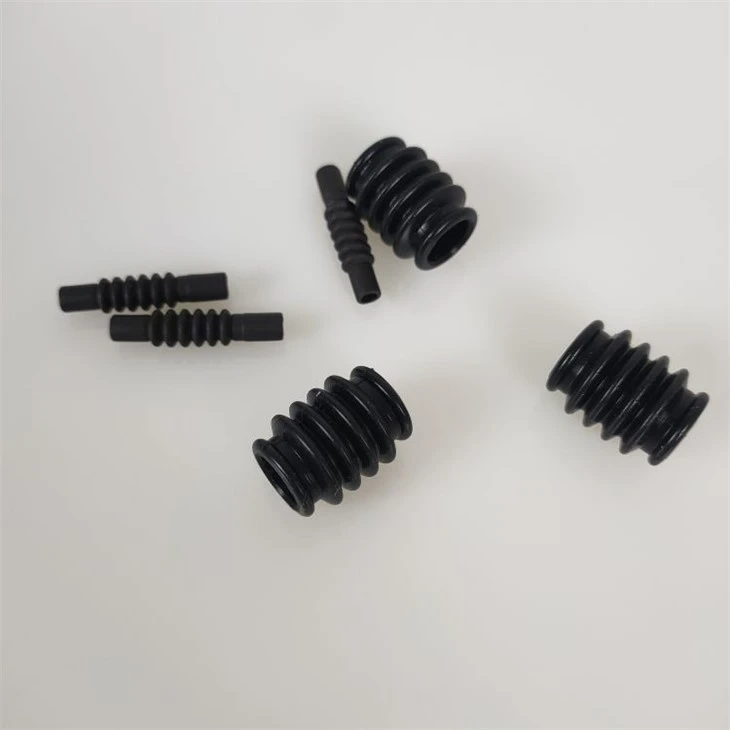

At Best Seal, we are an ISO 9001 & TÜV Certified OEM factory specializing in 100% custom flexible rubber bellows - designed from your 3D CAD geometry and manufactured to RMA A2 Precision Molding Tolerances with over 20 years of precision elastomer compounding and mold engineering expertise. Whether you require a compact flexible dust cover for a precision ball joint, a large-bore rubber flex joint for an industrial pump loop, or a multi-convolution flexible expansion bellows absorbing thermal growth in a pipeline - we engineer the exact convolution geometry, wall thickness, compound hardness, and end-fitting termination to match your application. All production is validated under Strict AQL 0.25/0.40 and backed by complete PPAP Level 3 documentation.
The Three Engineering Pillars of True Flexibility
Genuine dynamic flexibility in a rubber bellows is the result of three interdependent engineering disciplines - not simply a material property. Best Seal optimizes all three simultaneously:
Convolution Geometry Engineering
Convolution pitch, root radius, crest height, and included angle are calculated using FEA-informed geometry to maximize stroke ratio (extended-to-compressed length ratio) while minimizing peak strain at convolution root radii - the primary fatigue failure site on under-engineered flexible bellows.
Uniform Wall Thickness Control
Non-uniform wall thickness caused by poor mold flow design creates localized stress risers that catastrophically reduce flex fatigue life. Our vacuum-assisted compression and transfer tooling - manufactured to RMA A2 tolerances - ensures consistent wall thickness across crests, flanks, and root radii in every production shot.
Low-Hysteresis Compound Formulation
High-frequency flex applications generate internal heat build-up (hysteresis) that accelerates oxidative degradation. We formulate custom elastomer compounds with optimized crosslink density and dynamic damping properties - minimizing heat generation and extending flex fatigue life by orders of magnitude versus standard catalogue compounds.
Key Flexibility Performance Parameters We Engineer To
We engineer each custom flexible rubber bellows to meet your specific kinematic requirements. The four key parameters we optimize are:
Axial Stroke Ratio
The ratio of fully extended length to fully compressed solid height defines usable stroke travel. We engineer multi-convolution profiles achieving stroke ratios of 3:1 to 5:1 for long-travel linear actuators, hydraulic cylinder rod covers, and machine tool spindle dust covers.
Angular Deflection Capacity
Dynamic joints in steering systems, robotic wrists, and drive shafts impose angular misalignment on the bellows. We tailor convolution count, pitch, and compound hardness to achieve ±15° to ±35° continuous angular deflection without convolution kinking or parting line delamination.
Dynamic Flex Fatigue Cycles
We validate flexible bellows prototypes under customer-specified duty cycles using accelerated flex-fatigue rigs simulating full-stroke frequency, temperature, and chemical exposure simultaneously. Target endurance thresholds range from 500,000 cycles for low-frequency industrial gaiters to 10 million+ cycles for automotive and robotic high-speed applications.
Lateral Offset & Vibration Isolation
In pump loops, HVAC ducting, and pipeline systems, flexible expansion bellows must absorb simultaneous axial thermal growth, lateral pipe misalignment, and broadband vibration energy. We engineer convolution wall stiffness and end-collar reinforcement to balance flexibility with pressure containment for each specific installation.
Flexible Rubber Bellows Configuration & Elastomer Matrix
We manufacture the full range of flexible bellows profile geometries across all major industrial elastomers. Select the combination that matches your operating environment:
| Elastomer Compound | Temp. Range | Primary Flexibility Advantage | Best-Fit Bellows Type | Key Applications |
|---|---|---|---|---|
| EPDM | −45°C to +135°C | Excellent low-temperature flexibility; no ozone-induced dry-rot cracking | Flexible dust covers, accordion expansion bellows | Automotive steering gaiters, outdoor HVAC flex joints |
| Silicone (VMQ) | −60°C to +220°C | Ultra-low compression set; maintains elastic rebound across extreme thermal range | Flexible rubber boots, sanitary expansion bellows | Medical robot arm covers, food CIP flex joints, EV heat zone gaiters |
| Nitrile (NBR) | −30°C to +110°C | High tensile elongation combined with oil and grease impermeability | Flexible rubber dust boots, hydraulic rod bellows | Hydraulic cylinder gaiters, gearbox shaft covers, CV joint boots |
| Neoprene (CR) | −35°C to +120°C | High tear strength; balanced oil and outdoor ozone resistance | Flexible expansion bellows, fabric-reinforced flex joints | Marine steering cylinder boots, railway gangway bellows |
| Natural Rubber (NR) | −50°C to +80°C | Highest dynamic rebound elasticity; lowest hysteresis of all elastomers | High-frequency flexible bellows, vibration isolation loops | Precision pump vibration absorbers, high-cycle robotic wrist boots |
In-House Tooling & RMA A2 Flex Bellows Inspection
Achieving consistent flexibility and fatigue life in production-volume flexible rubber bellows demands mold tooling precision that generic suppliers cannot provide. Best Seal's dedicated in-house CNC and EDM mold shop machines hardened steel multi-cavity tooling to RMA A2 Precision Tolerances, with parting line alignment and cavity balance verified on a CMM before first shot approval. Vacuum-assisted cavity filling eliminates porosity and ensures uniform wall distribution across every convolution in every cycle - the critical prerequisite for predictable long-service flex fatigue life. Custom prototype tooling and first-article flexible bellows samples are delivered in 10 to 14 business days, complete with dimensional CMM reports and material compound data sheets.
Where Our Flexible Rubber Bellows Are Used
★┊ Dynamic Flex Protection Across Every Engineering Sector
Our custom flexible rubber bellows and rubber flex joints serve demanding dynamic applications across global supply chains:
- ◌ Automotive & EV Systems: Steering rack dust boots, CV drive shaft flexible bellows, EV battery thermal barrier gaiters, air suspension expansion sleeves, and sensor protective flexible dust covers.
- ◌ Industrial Machinery & CNC Equipment: Ball screw spindle bellows, linear rail dust covers, robotic joint flexible boots, and pneumatic actuator rod gaiters on high-cycle production lines.
- ◌ HVAC, Pumps & Piping: Flexible expansion bellows absorbing pipeline thermal growth, pump vibration isolation loops, duct misalignment compensators, and acoustic water hammer dampers.
- ◌ Medical & Pharmaceutical Equipment: Flexible rubber dust boots on surgical robot positioning arms, analytical instrument flex joints, and pharmaceutical dosing actuator covers.
- ◌ Marine & Rail Infrastructure: Flexible bellows for marine steering ram gaiters, inter-car gangway expansion joints, and railway brake actuator rod protective covers.
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. ISO 9001 and TÜV certified manufacturing facility with 20+ years of precision rubber molding expertise. 2. In-house CNC & EDM mold tooling machined to RMA A2 precision tolerances - uniform convolution wall thickness guaranteed. 3. Material compound library fully compliant with RoHS, REACH, and California Prop 65; FDA 21 CFR-compliant grades available. 4. Complete PPAP Level 3 documentation and IMDS material submissions available for automotive OEM programs. 5. Strict AQL 0.25/0.40 Quality Protocol with 100% optical dimensional inspection and CMM reporting on request.
Flexible Rubber Bellows - Technical FAQ
❓ What causes premature cracking in flexible rubber bellows?
The three primary failure modes are: (1) Non-uniform wall thickness - caused by poor mold flow design, creating localized stress concentrations at convolution root radii; (2) Wrong compound selection - using a statically-rated compound for high-frequency dynamic flex, leading to heat build-up and oxidative cracking; (3) Geometric mismatch - convolution pitch or stroke ratio not engineered for the actual kinematic envelope, causing convolution kinking and localized overstress. All three are eliminated through Best Seal's integrated mold design, compound formulation, and performance validation process.
❓ What is the difference between flexible rubber bellows and flexible expansion bellows?
Flexible rubber bellows is a broad category covering any elastomer sleeve with dynamic stroke capability, including protective dust covers on mechanical joints. Flexible expansion bellows is a more specific term used in piping and HVAC engineering for bellows that absorb thermal expansion, lateral misalignment, and vibration in pressurized fluid or gas systems - often requiring fabric or wire reinforcement for pressure containment. Best Seal manufactures both types from a single engineering platform.
❓ Which elastomer gives the best flexibility at low temperatures?
For sub-zero cold flexibility, Silicone (VMQ) offers the widest operational range (−60°C), retaining full elasticity and rebound with no brittle fracture risk. Natural Rubber (NR) provides the highest room-temperature dynamic rebound but has a practical lower limit near −50°C. EPDM performs reliably to −45°C for outdoor applications. We recommend the optimal grade based on your lowest service temperature, dynamic stroke frequency, and chemical exposure requirements.
❓ What is your lead time for custom flexible bellows prototypes?
With all mold tooling CNC and EDM-machined in-house by our own toolmakers, custom prototype mold creation and first-article flexible rubber bellows sample delivery takes 10 to 14 business days from receipt of approved 3D CAD drawings, accompanied by full CMM dimensional inspection reports and compound data sheets.
