Rotary Shaft Oil Seals – High-Performance TC/SC/TG Skeleton Seals
Rotary Shaft Oil Seals, also commonly known as skeleton oil seals or radial shaft seals, are precision-engineered components designed to exclude dust, dirt, and water while retaining lubricant in rotary shaft applications. These seals are critical for maintaining the operational integrity of engines, gearboxes, and industrial drive systems. At Xiamen Best Seal, we specialize in high-durability oil seals that utilize reinforced metal inserts (skeletons) and energizing springs to provide a perfect hermetic seal under high-speed and variable-temperature conditions.
Our Industrial Oil Seals are available in various standard configurations including TC, SC, TG, and TB profiles, manufactured from premium elastomers like FKM (Viton®), NBR (Nitrile), and Silicone. With a focus on AQL 1.0 - 1.5 standards and 100% Automated Optical Inspection, we serve as a trusted B2B partner for global machinery and automotive OEMs.

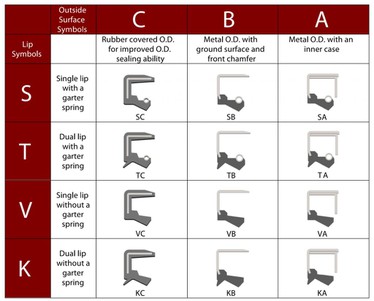

Standard Oil Seal Profiles & Technology
 |
The Skeleton & Lip ArchitectureEffective fluid retention requires a multi-layered sealing approach. Our Skeleton Oil Seals feature:
|
Material Engineering & Chemical Resistance
| Material Type | Temp Range | Core B2B Application |
|---|---|---|
| NBR (Nitrile) | -40°C to 120°C | Standard industrial gearboxes & Hydraulics |
| FKM (Viton®) | -20°C to 250°C | High-heat engines, Chemical pumps, Aerospace |
| VMQ (Silicone) | -60°C to 225°C | Food-grade machinery & Specialized instrumentation |
| EPDM | -50°C to 150°C | Water-based systems & Brake fluid exposure |
| ACM / HNBR | -30°C to 150°C | Automotive transmissions & Oil field equipment |
| PTFE (Lip Face) | -70°C to 260°C | Dry-running high-speed shafts & Extreme chemicals |
𖥔 Seal Profile Options
- ˚ ✵ TC Profile: Double lip with spring (The industry standard)
- ˚ ✵ SC Profile: Single lip with spring (Compact design)
- ˚ ✵ TG Profile: Corrugated outer diameter for easier installation
𖥔 Surface & Lip Enhancements
- ˚ ✵ Helix Ribs (Hydrodynamic): Pumps oil back into the reservoir
- ˚ ✵ Inner Grinding: Enhances sealing surface for high-speed shafts
- ˚ ✵ Corrosion-Resistant Skeletons: Stainless steel inserts for marine use
Data-Driven Quality Assurance (AQL 1.0 - 1.5)
ღ Professional Quality Signal
- Elite AQL 1.0 - 1.5 Calibration – Precision sampling ensures zero-failure batches for high-value machinery.
- Automated Vision sorting – 100% inspection using CCD Optical sorting Machines to catch lip defects or metal distortion.
- Material Traceability – Full ASTM D2000 compliance with batch-coded chemistry reports.
- Spring Tension Testing – Every batch verified for consistent radial force on the rotating shaft.
Global Industry Integration
Conveyor Drive Units
Earthmoving Equipment
Crankshaft & Camshafts
Angled Grinders & Drills
Factory Strength & Scaling Capabilities
ღ Advanced Production Facilities
- Precision Skeleton Forming – In-house stamping and metal bonding for high-rigidity skeleton seals.
- Vacuum Molding Technology – Eliminates air pockets in the elastomer for long-life durability.
- Rapid Prototyping – Metric and Imperial oil seal sizes developed and scaled in 10-14 days.
⊹₊⋆ Technical Tip: Skeleton Seal Protection
To prevent lip damage during installation over threaded shafts, always use a mounting sleeve and ensure the shaft surface roughness is within Ra 0.2 to 0.8 μm for optimal Rotary Shaft Oil Seal lifespan.
Logistics & Protection Standards
| Package Category | Protection Detail | Logistics Status |
|---|---|---|
| Industrial Standard | Moisture-Proof Poly Bags + Standard Cartons | Port: Xiamen, China Lead Time: 15 Days for Custom Express: DHL / FedEx / UPS (3-5 Days) Trade Terms: FOB, CIF, DDP |
| Protective Specialized | Individual Box Packaging / Heat Shrink + Cardboard / Tube Packing | |
| Retail/Kit Ready | Custom Labeled Kits / Barcoded Individual Seals |
Certificates & Compliance
🏆 Global Recognition: ISO 9001:2015, REACH SVHC list, RoHS 2.0 Directive, IATF 16949 Ready
✬✬✬✬✬
"The TC oil seals from Best Seal have halved our failure rate in the field. The FKM material purity is top-notch."
-- QC Manager, European Gearbox OEM
❓ Do you offer stainless steel skeletons?
Yes, for marine and food-grade applications, we offer SS304 and SS316 metal skeletons to prevent corrosion.
