Custom Geometry Rubber Gaskets – Precision Engineering for Complex OEM Designs

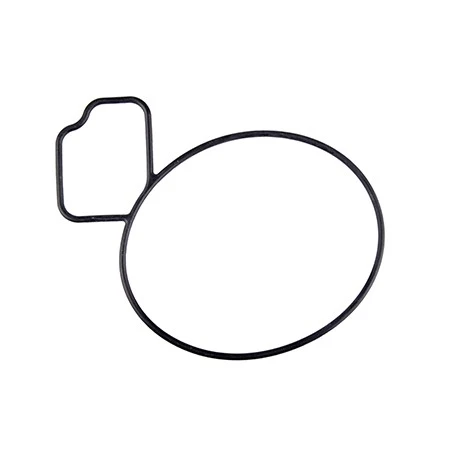

Custom Geometry Rubber Gaskets represent the pinnacle of bespoke sealing solutions, specifically engineered for non-standard enclosures, complex manifolds, and irregular housing interfaces. Unlike traditional O-rings or flat washers, these Irregular Shaped Seals are designed with precision tabs, mounting ears, and variable cross-sections to provide a 100% airtight fit in geometries that standard components cannot address.
At Best Seal, we specialize in Special Geometry Elastomer Seals that integrate functional features directly into the gasket body. Whether your design requires integral mounting tabs (ears) for secure positioning, bolt-hole reinforcements, or 3D-profiled lips for uneven surfaces, our in-house tooling and material compounding ensure every piece meets micron-level tolerances. From automotive electronics to high-performance medical devices, our custom geometry solutions eliminate assembly errors and prevent bypass leaks in the most challenging industrial environments.
Geometric Precision: Integral Tabs & Complex Lips
 |
Multi-Functional Sealing DesignA Custom Geometry Gasket is more than just a barrier; it is a structural component of your assembly. By incorporating mounting ears (tabs), we provide a "pull-through" or "snap-in" installation advantage that prevents gasket displacement during high-speed production lines.
|
Global Material Selection Matrix (ASTM D2000)
| Material | Key Technical Advantages | Typical Applications |
|---|---|---|
| VMQ (Silicone) | Food-grade (FDA), high-temp durability, complex molding easy. | Coffee machines, medical devices, lighting. |
| EPDM | UV/Ozone and weather resistant, excellent lifespan. | Solar enclosures, HVAC piping, EV battery packs. |
| NBR (Nitrile) | Superior oil resistance, high mechanical strength. | Hydraulic sumps, engine covers, fuel systems. |
| FKM (Viton®) | Chemical inertia & high-temp threshold (+250°C). | Aerospace fuel manifolds, agresive chemical pumps. |
| HNBR | High tensile strength and heat stability. | Oil & Gas exploration, power transmission. |
| SBR / NR | Cost-efficient, excellent resilience and damping. | Industrial mounts, general water sealing. |
| FFKM | Ultimate chemical & 327°C resistance. | Semiconductor wafers, high-vacuum systems. |
| PU (Urethane) | Extreme wear & tear resistance. | Piston scrapers, heavy-duty machinery. |
| CR (Neoprene) | Sea-water and ozone resistance. | Marine equipment, refrigeration compressors. |
| PTFE (Teflon) | Zero friction, universal chemical resistance. | Ball valve seats, aggressive chemical pumps. |
| + 7 additional specialized compounds available (AFLAS, FVMQ, ACM, etc.) | ||
Special Compound & Surface Engineering
✶ Functional Compounds
- ◌ Electrically Conductive: Carbon-black filled for RFI/EMI shielding.
- ◌ Internally Lubricated: Infused with PTFE/Paraffin to assist installation.
- ◌ UL-94 Flame Retardant: Vo-rated grades for power electronics.
- ◌ Metal Detectable: Blue silicone for strict food safety tracing.
✶ Surface Treatments
- ◌ Permanent PTFE Coating: Low friction and easy-ID color options.
- ◌ Single/Double PSA: High-bond adhesive for pre-assembly positioning.
- ◌ Chlorination: Reduces surface tackiness for high-speed automated picking.
- ◌ Silicone Oil Finish: Essential for preventing stiction in bulk packaging.
Competitive Advantage: Precision vs. Generic Gaskets
✶ Manufacturing Capability Comparison
| Item | Best Seal Custom Geometry | Standard Flash-Cut Products |
|---|---|---|
| Geometric Complexity | Tabs, radii, and integrated 3D features. | Limited to 2D flat profiles. |
| Edge Integrity | Polished SPI molds, flash-free edges. | Rough edges, shear deformation. |
| Material Density | Uniform compression for better recovery. | Non-uniform density due to sheet variations. |
| Installation Aid | Integral "mounting ears" for zero-error. | Manual centering required (high error risk). |
Scale & Technical Capability
Xiamen Best Seal Manufacturing ExcellenceWith over 20 years of focus on complex elastomer engineering, we operate a 3,600 m² facility equipped with 36 high-efficiency production lines. We deliver up to 5 million pieces per day to Tier 1 clients in 68 countries.
|
 |
Industry Deployment Areas
ECU Seals & Door Latch Gaskets
IP68 Phone & Tablet Gaskets
Complex Ventilator & Pump Seals
Battery Enclosure Spacers
Packaging & Shipping
📦 Packaging Strategy
Given the delicate nature of Custom Geometry Gaskets (tabs/ears), we use protective layouts to prevent warping and surface damage during global B2B transit.
| Standard Packaging | Special/Bespoke Packaging |
|---|---|
| Bulk Large Poly Bags (Heavy-duty Grade) | Retail-Ready Blister Packaging (Individual) |
| Small Counted Bags (for Cleanroom Kits) | Sleeve Packaging (Protective Poly-Tubes) |
| Foam Buffer / Bubble Wrap Protection | Anti-Static (ESD) Shielding Bags |
| OEM Traceability: Custom part numbers, barcoding, and batch tracking on every carton. | |
🚚 Logistics & Shipping
| Shipping Channel | Delivery Capabilities |
|---|---|
| Express (DHL/FedEx/UPS) | 3–5 Days Global Priority (Best for small/medium prototypes) |
| Air Freight | 5–10 Days Standard (Optimal for high-value custom runs) |
| Sea Cargo | 25–35 Days (Most cost-effective for bulk OEM supply chains) |
| Incoterms Supported | EXW, FOB, CIF, DDP / DDU (Turnkey Delivery) |
Verified Compliance & Technical Standards
🏆 Global Quality: ISO 9001:2015, PPAP Level 3 Documentation available for Automotive Tier 1 clients.
⚙️ Compliance Shield: FDA, NSF 61, WRAS, RoHS 3.0, and REACH REACH compliant compounds.
Global B2B Success Stories
✬✬✬✬✬
"The complexity of our irregular geometry gasket was handled flawlessly. The ears provide perfect positioning in our automated line."
– Senior Engineer, EU Power Electronics
✬✬✬✬✬
"Exceptional material purity. The food-grade silicone rings passed our rigorous sanitary validation on the first attempt."
– QA Manager, Beverage Processing Group
B2B Technical Sales FAQ
❓ How do you ensure the ears don't tear under stress?
We use high-modulus elastomers and precision radius designs at the tab junctions to distribute mechanical stress, ensuring the mounting features are as durable as the seal itself.
❓ Can you help with the 2D/3D design of irregular shapes?
Yes. Our engineering team can review your housing files (STEP/DXF) to suggest optimized sealing profiles and ear positioning for easier assembly and better performance.
