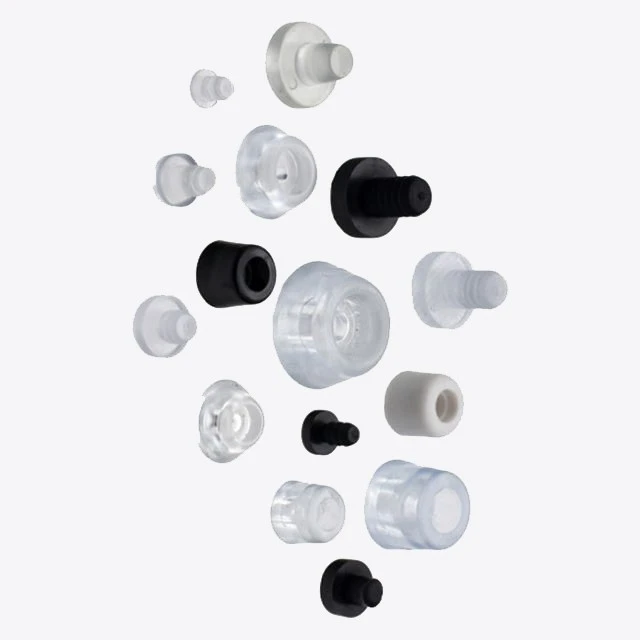

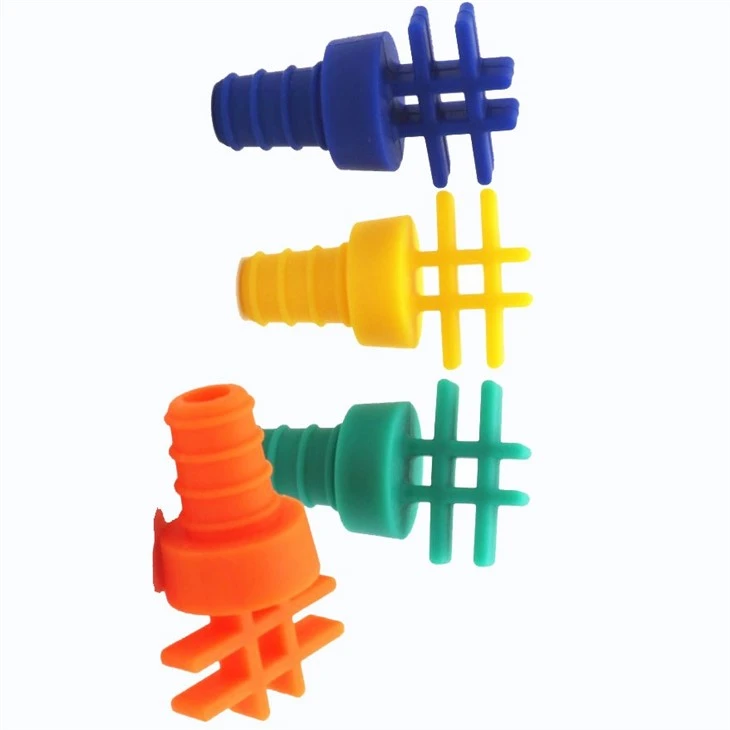

Special Shape Rubber Plugs – Custom Molded Irregular Sealing Inserts
In advanced machinery engineering, automotive chassis panels, electronic enclosure cabinets, and sanitary plumbing lines, standard round or tapered plugs often fail to fit non-circular ports. Ports featuring D-shapes, double-D slots, rectangular openings, keyholes, or stepped profiles cannot be sealed by standard catalog plugs. Special Shape Rubber Plugs (also known as custom shape rubber plugs or irregular rubber sealing inserts) are engineered to solve these non-standard sealing challenges. Molded to match the exact irregular geometry of your opening, these custom plugs seal against environmental dust, water, hydraulic oils, and high pressures, preventing leaks on non-standard ports.
At Xiamen Best Seal, we are a leading B2B custom rubber manufacturer specializing in complex tooling and elastomer compounding for special shape rubber plugs. Operating from our ISO & TÜV Certified Facility, we support complete custom tool engineering, CNC machining custom compression molds in-house. We mold plugs to any 2D/3D profile, including oval, triangular, keyhole, stepped, slotted, or flanged, with durometers from 30 to 90 Shore A. We select and compound specialized raw materials, including sunlight-resistant EPDM for solar chassis, oil-proof Nitrile (NBR) for gearboxes, high-temp Silicone (VMQ) with FDA compliance for food lines, and heavy-duty Viton (FKM) for corrosive environments. Our production runs are verified under our Strict AQL 0.25/0.40 Quality Protocol inside our UL Certified Facility, ensuring that all operations are Quality Managed to IATF 16949 Standards.
✵ ˚ : · ✬ Technical Performance & Custom Advantages ✬ · : ˚ ✶
Why systems engineers, finish shops, and equipment OEMs specify our custom special shape rubber plugs:
📐 Complex Geometries & Slots
We eliminate stock catalog constraints. We custom-mold plugs matching D-cuts, double-D flats, keyholes, rectangular chassis panels, and stepped drainage channels, ensuring a leak-proof mechanical fit.
⚡ Flash Control & Tolerances
Using high-precision steel tooling, we control parting-line flash to within ISO 3302-1 Class M1 standards. This guarantees that seal edges seal cleanly without air or liquid bypass.
🧪 Advanced Material Customization
Choose weather-stable EPDM for solar frames, oil-resistant Nitrile NBR for transmissions, food-safe VMQ silicone (FDA/3A) for appliances, or chemical-proof Viton FKM for processing manifolds.
Special Shape Rubber Plugs Customization Matrix
We customize every parameter to match your non-standard panel, chassis, or manifold opening:
| Custom Parameter | Custom Engineering Option | B2B OEM Customization Benefits |
|---|---|---|
| Material Compounds | EPDM, Nitrile (NBR), Silicone (VMQ), Neoprene (CR), Viton (FKM), Fluorosilicone (FVMQ) | EPDM is preferred for outdoor enclosures; Nitrile NBR prevents oil swelling on gearbox casing slots. |
| Profile Geometries | Oval, D-shape, double-D, rectangular, stepped plug, hollow core, flanged seal, keyhole plug | Ensures tight seals on irregular metal cutouts and custom electrical cable entry openings. |
| Dimension Limits | Custom sizing from 2.0mm to 500.0mm+ in any cross-sectional layout | Accommodates miniature electronic casing ports as well as large industrial machinery body panels. |
| Hardness Range | 30 to 90 Shore A | Softer grades (30-45 A) permit quick manual insertion in tight spaces; harder grades (70-80 A) withstand high blow-out pressures. |
| Functional Features | Integrated pull-tabs, ergonomic handles, hollow compression bulbs, ribbed sealing rings | Pull-tabs accelerate assembly and removal on production lines; hollow cores allow plugs to expand for extra sealing. |
| Certifications | FDA food contact, UL94 V-0 flame retardancy, 3A sanitary, RoHS/REACH compliance | Enables safe integration into commercial kitchen appliances, power modules, and medical devices. |
Strict AQL 0.25/0.40 Quality Standards
Because parting-line flash, micro-voids, or dimensional deviations in irregular corners can cause plug leakage or premature tearing, we utilize automated inspection. All custom-molded special shape rubber plugs are verified under our Strict AQL 0.25/0.40 Quality Protocol inside our UL Certified Facility.
Custom Sealing Applications for Special Shape Rubber Plugs
★┊ Automotive Chassis, Enclosure Cabinets, and Industrial Piping
Our custom-molded irregular shape rubber plugs ensure clean sealing and impact protection for specialized ports:
- ◌ Automotive Body Panels: Seals oval drainage holes, stepped sheet metal cavities, and non-circular chassis ports to prevent road water and mud ingress.
- ◌ Industrial Enclosures: Custom D-shape and double-D plugs seal unused wire entries and cabinet holes, maintaining NEMA/IP65 enclosure ratings.
- ◌ Sanitary Plumbing & Valves: Stepped and slotted silicone plugs seal non-round ports during testing, manufacturing, or service shutdowns.
- ◌ Powder Coating Masking: High-temp silicone special shape plugs mask irregular weldments, slots, and cavities in painting lines, leaving clean lines.
Bulk Packaging & Custom OEM-Ready Logistics
To maintain cleanliness and protect molded sealing surfaces, custom special shape rubber plugs are packed in thick, dust-sealed PE bags inside double-walled corrugated cartons.
| Category | Packaging Details |
|---|---|
| Inner Packaging | Sealed thick PE bags labeled with part numbers, geometry type (Oval, D-shape, etc.), material compound, and batch codes. |
| Outer Cartons | Heavy-duty double-walled corrugated shipping cartons, reinforced with corner boards and moisture stretch wrap. |
| Palletization | ISPM-15 compliant wooden or plastic pallets wrapped in protective plastic stretch film and secured with high-tension strapping. |
| OEM Custom Logistics: Supports custom packaging counts, bulk crate packaging for large diameters, and custom workstation-ready sorting. | |
🚚 Global Trade & Freight Methods
| Method | Details |
|---|---|
| Express Freight | DHL, FedEx, UPS (ideal for fast prototyping, sample evaluations, and urgent line demands) |
| Bulk Logistics | LCL/FCL ocean shipping from Xiamen Port, or air freight cargo for rapid regional stocking |
| Trade Terms | FOB Xiamen Port, EXW, CIF, DDP (shipping directly to your manufacturing plants or logistic hubs) |
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. We are a ISO and TUV certified factory. 2. We are specializing in rubber industry for over 20 years. 3. All our products can be RoHS, REACH, UL, Prop 65, FDA, 3A compliant. 4. Quality Managed to IATF 16949 Standards. 5. Strict AQL 0.25/0.40 Standards for Dimensional Accuracy.
Special Shape Rubber Plugs FAQ
❓ Why are custom-molded special shape rubber plugs superior to standard round plugs pressed into non-circular ports?
Standard round plugs pressed into irregular ports (like oval or D-slots) create uneven compression. The rubber bulges in narrow sections and creates gaps in wider sections, causing leak paths. Custom-molded special shape plugs match the opening's profile exactly, providing uniform compression and a reliable seal across the entire perimeter.
❓ What is the tooling cost and turnaround time for a custom-shaped rubber plug prototype?
Once we receive and approve your CAD drawings or physical part samples, our in-house tooling center CNC-machines soft tooling to deliver prototype samples in 10 to 12 days. Tooling costs vary based on geometry complexity but are kept minimal due to our integrated, in-house mold machining center.
❓ Can you manufacture special shape plugs with a hollow core for easier compression?
Yes. We specialize in custom designs. We can engineer hollow cores, internal voids, or bulb structures within the plug. This reduces the insertion force required by assembly line workers while ensuring high radial sealing pressure when the plug is seated in the cutout.
