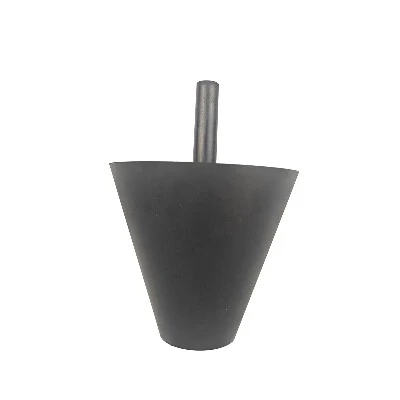

Custom OEM Smoke Machine Cone Adapters & EVAP Plugs
For automotive diagnostic tool brands and testing equipment OEMs, standard off-the-shelf smoke plugs present severe product differentiation and durability issues. Generic aftermarket plugs frequently suffer from thin-wall collapse under test pressure, loose hose fitting connections, and poor elastomeric resistance to mineral oil smoke fluids. Leading diagnostic tool manufacturers require a 100% Custom-Molded Smoke Machine Cone Adapter: an OEM-engineered component designed to your exact dimensional scale, branded with your corporate logo, and tailored with custom nozzle barbs to match your proprietary diagnostic smoke generator systems.
At Best Seal, we are the premier Tier-1 OEM/ODM manufacturing partner for global automotive diagnostic tool brands. Operating from our ISO & TÜV Certified Facility, we engineer and mold bespoke smoke machine cone adapters from CAD blueprint to finished retail package. Whether you require standard passenger vehicle sizes (45mm–105mm), compact motorcycle/powersports profiles (20mm–50mm), or heavy-duty commercial truck exhaust cones (80mm–150mm), we build the high-precision CNC mold tooling in-house. We customize internal anti-collapse cross-rib matrixes, overmold brass air quick-connect fittings, compound custom Shore A durometers, and emboss your private-label brand logo directly into the rubber. All custom adapters are validated under our Strict AQL 0.25/0.40 Quality Protocol, managed to IATF 16949 Automotive Standards.
100% Bespoke Diagnostic Architecture
We engineer every critical physical dimension to integrate seamlessly with your diagnostic tool kit and branding requirements:
📐 Custom Cone Angles & Diameter Ranges
We mold custom taper angles and stepped diameters tailored to your target vehicle market. From micro-cones for small engine vacuum lines to massive 6-inch cones for diesel semi-truck exhaust stacks, with custom metric (mm) or imperial (inch) laser-engraved sizing increments on the outer rim.
🔌 Tailored Smoke Hose Interfaces
Customize the center smoke injection conduit to your machine's connection style: direct-fit molded rubber hose barbs (1/4", 3/8", 1/2"), multi-stepped universal nozzles, or insert-molded brass quick-disconnect Schrader/push-in fittings for high-end professional diagnostic rigs.
🏷️ In-Mold Private Label Branding & Ribs

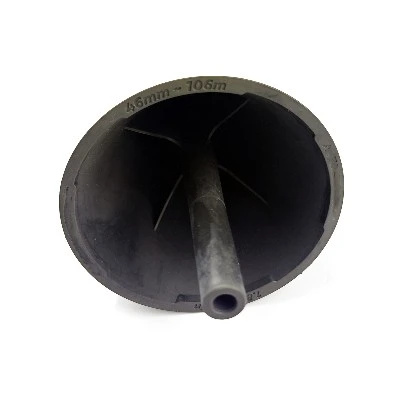

We engrave your brand logo, corporate website, and part numbers directly into the mold cavity for permanent, premium 3D raised branding. The internal 4-rib or 6-rib cross-bracing is structurally tuned to guarantee zero collapse under your tool's rated operating pressure.
Custom Elastomer Compounding for Diagnostic Fluids
Smoke testing fluids (mineral oil, baby oil, UV dyes) and hot exhaust gases degrade cheap rubber. We compound virgin elastomers tailored to your tool's test environment:
| Custom Compound | Hardness (Shore A) | Resistance Capabilities | OEM Application Focus |
|---|---|---|---|
| Custom NBR (Nitrile) | 50A to 65A | Oil & Fuel Impervious. Maximum resistance to vaporized mineral oils, liquid fuel splash, and engine oil mist. High tear strength. | Standard diagnostic smoke generator kits, EVAP test accessories, fuel tank adapters. |
| High-Temp Silicone (VMQ) | 40A to 60A | Extreme Thermal Window (-50°C to +220°C). Flexible and non-sticking even when plugged directly into hot exhaust pipes. | Professional workshop high-heat turbo and DPF/exhaust diagnostic kits. |
| Custom EPDM Rubber | 55A to 70A | Weather & Coolant Resistant. High abrasion resistance, immune to ozone degradation and glycol coolant steam. | Cooling system pressure test kits, general intake manifold and HVAC diagnostic plugs. |
Turnkey OEM Production: From Mold to Retail Packaging
As a full-service OEM/ODM manufacturer, Best Seal handles the entire production lifecycle for automotive tool brands. We design precision multi-cavity CNC steel molds with optimized wall-thickness gradients to ensure the cone seals easily against rough pipe walls without blowing out under test pressure. Beyond molding, we provide complete white-label turnkey packaging services: custom blister cards, branded retail color boxes with barcodes, or molded EVA foam kit inserts ready for immediate Amazon FBA, wholesale catalog, or retail distribution. Every production run is 100% pressure-tested under our Strict AQL 0.25/0.40 Quality Protocol, fully managed to IATF 16949 Standards.
Diagnostic System Applications
★┊ Complete Vehicle Leak Detection Integration
Our custom-molded smoke machine adapters are bundled into world-class diagnostic kits:
- ◌ EVAP Emission System Testing: Tapered cone seals securely into fuel filler necks and EVAP service ports to identify micro-leaks triggering OBD-II trouble codes.
- ◌ Intake Manifold & Turbo Boost Diagnostics: Universal fitment over throttle bodies, air intake boots, and intercooler piping to pinpoint boost leaks.
- ◌ Exhaust & EGR System Leak Finding: Wedged firmly into tailpipes to reveal manifold pinholes, flex-pipe cracks, and gasket failures under positive smoke pressure.
- ◌ Commercial Truck & Heavy Equipment Kits: Custom large-scale cones (up to 150mm) engineered for diesel exhaust stacks, heavy pneumatic lines, and bus HVAC ducts.
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. We are an ISO 9001 and TÜV certified manufacturing facility. 2. Specializing in 100% custom mold tooling, logo engraving, and private-label packaging for tool brands. 3. Formulations compliant with RoHS, REACH, and California Proposition 65 standards. 4. Quality Managed to IATF 16949 Standards for automotive diagnostic tool suppliers. 5. Strict AQL 0.25/0.40 Quality Protocol with 100% pneumatic pressure seal verification.
Custom Smoke Cone Adapter FAQ
❓ Can you customize the center nozzle connection to fit our machine's proprietary quick-connect hose?
Yes! We can mold any custom barb geometry (1/4", 3/8", 1/2"), multi-tier stepped nipples, or insert-mold brass/stainless quick-disconnect couplers directly into the rubber core, ensuring a 100% seamless, leak-free connection with your diagnostic machine's output hose.
❓ What is the tooling turnaround time and MOQ for a custom-branded cone with our logo?
Because all mold design and CNC tooling are completed in-house, prototype tooling with your custom logo and part numbers takes only 10 to 14 business days. We support competitive production MOQs tailored for tool brand product launches, with scalable capacity for high-volume automated runs.
❓ Can you provide custom retail packaging (blister pack or branded color box)?
Yes. We provide complete turnkey OEM packaging solutions: custom-printed blister cards, clamshell packaging, branded color boxes with UPC barcodes, and custom foam-cut master case packaging ready for direct retail distribution or Amazon FBA warehousing.
