OEM & Aftermarket Garage Door Opener Couplers – The Mechanical Fuse

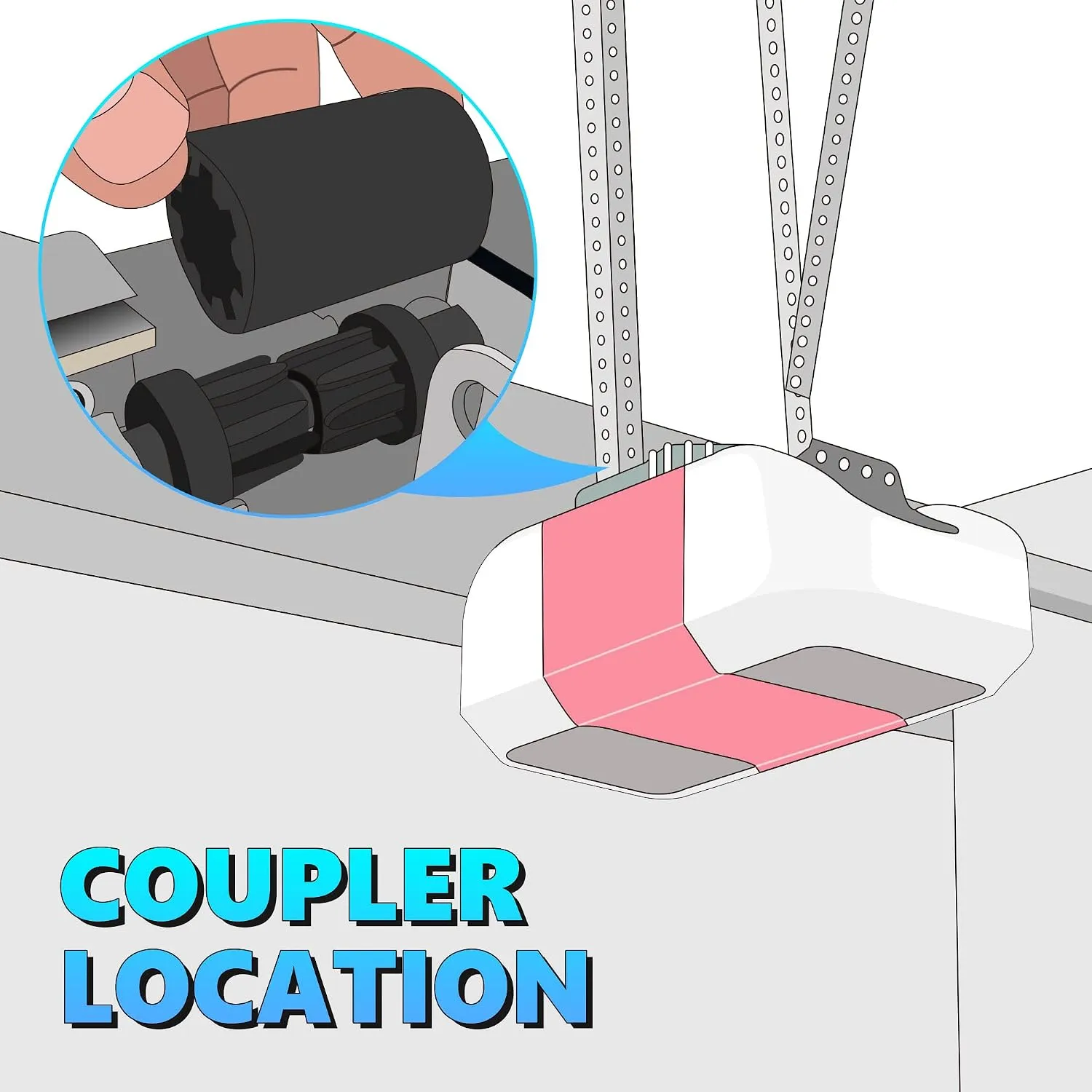

The smooth, quiet operation of a residential or commercial garage door relies entirely on a small, unassuming elastomeric component: the garage door opener coupler (often referred to as a motor coupling, spider insert, or drive sprocket isolator). This star-shaped or splined rubber insert sits between the electric motor's drive shaft and the door's screw, belt, or chain drive mechanism. It serves two critical functions. First, it absorbs the harsh starting torque and high-frequency vibrations of the electric motor, ensuring the door opens smoothly without grinding noises transferring into the home. Second, and most importantly, it acts as a mechanical fuse. If the garage door freezes to the ground in winter, or if the heavy torsion springs suddenly snap, the soft rubber coupler is designed to intentionally tear (shear) apart. This sacrifices a cheap rubber part to instantly disconnect the drivetrain, preventing the expensive electric motor from burning out or stripping its internal metal gears.

At Best Seal, we are a high-volume B2B manufacturer supplying premium garage door opener couplers to both original equipment manufacturers (OEMs) and the lucrative global repair aftermarket. Operating from our ISO & TÜV Certified Facility, we know why original factory couplers fail: they are often made from low-grade rubber that dries out, becomes brittle, and shatters after a few years of winter temperature cycling. We engineer our upgraded replacement couplers using high-density Polyurethane (PU) and premium Oil-Resistant NBR. These advanced elastomers remain perfectly pliable in sub-zero garage environments, resist degradation from track grease, and drastically outlast standard OEM components. We manufacture direct-fit replacement profiles compatible with the world's leading brands, validated under our Strict AQL 0.25/0.40 Quality Protocol.

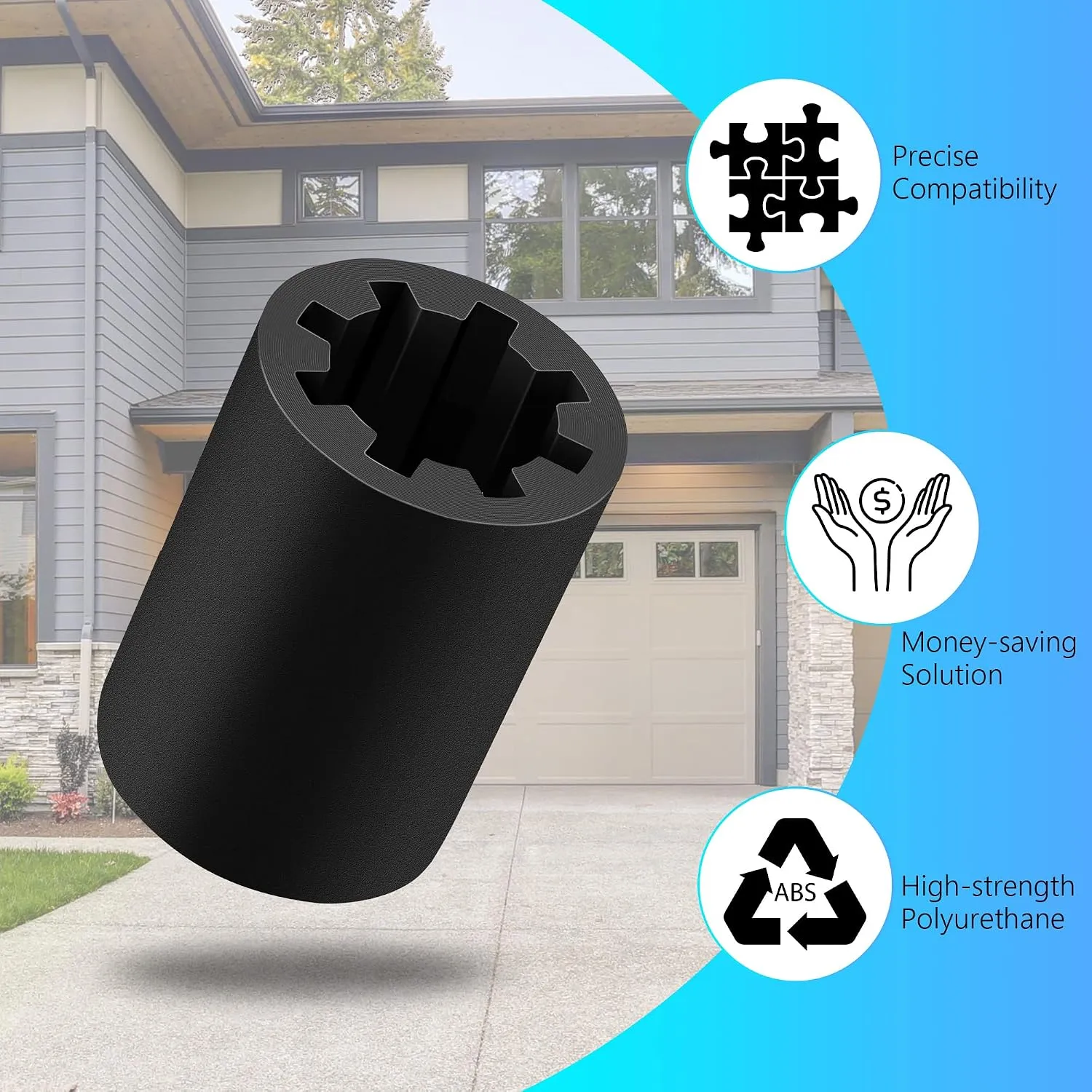

Garage Door Opener Coupler Star Shaped Spider Insert

Solving Premature Coupler Failure

A shattered motor coupling is one of the most common reasons for garage door service calls. We engineer our aftermarket replacement couplers to solve the three primary causes of premature OEM failure:

❄️ Arctic Temperature Resilience

Standard rubber couplings freeze solid during harsh winters. When the motor starts, the frozen, brittle rubber simply snaps under the torque. Our custom Polyurethane (PU) and EPDM compounds maintain their elastic flexibility down to -40°C, ensuring reliable winter operation.

🛢️ Lubricant & Grease Immunity

Garage door screw drives and chains are heavily lubricated. If this lithium grease or penetrating oil drips onto a standard rubber coupling, the rubber swells, turns to mush, and disintegrates. Our NBR (Nitrile) and PU couplers are chemically immune to petroleum-based lubricants.

🎯 Anti-Jerk Precision Molding

If a coupler is molded slightly too small, it creates "slop" (backlash) between the motor and the drive shaft, causing the heavy door to visibly jerk and shudder as it lifts. We utilize precision CNC molds to guarantee an ultra-tight, press-fit tolerance for perfectly smooth lifting dynamics.

Material Tuning: Rubber vs Polyurethane

We offer different elastomer bases depending on your target market-whether prioritizing silent operation for luxury homes, or extreme longevity for commercial warehouse doors:

Material Choice	Performance Profile	Best Target Market
Cast Polyurethane (PU)	Maximum Lifespan. Incredible shear strength and tear resistance. Will not degrade from oil or age. Slightly stiffer than rubber, so it transmits a tiny bit more motor hum, but essentially acts as a "lifetime" replacement part.	Premium aftermarket repair kits, heavy commercial overhead doors, extreme cold climates.
NBR (Nitrile Rubber)	The Perfect Balance. Softer than PU, providing excellent vibration and noise damping for whisper-quiet door operation. Highly resistant to grease and chain lube. Will eventually wear out if the door jams.	Standard residential OEM assembly, standard aftermarket replacement parts.
Natural Rubber (NR)	Maximum Quietness. Offers the absolute best acoustic isolation. However, it is vulnerable to ozone cracking and oil degradation over time compared to PU and NBR.	Budget aftermarket, temporary fixes, climates with mild temperatures.

High-Volume Injection & Dimension Stability

Because garage door couplers are high-turnover consumable parts for repair technicians, they must be manufactured in massive volumes without sacrificing dimensional integrity. We utilize multi-cavity liquid injection molding (LSR/PU) and high-tonnage compression molding to produce tens of thousands of flawless "spider inserts" per week. We rigorously monitor the shrinkage rate of the complex internal splines during the curing process, ensuring the outer diameter and inner bore remain perfectly concentric. All production batches are strictly validated under our Strict AQL 0.25/0.40 Quality Protocol.

Quality inspection of rubber spider couplers

Cross-Brand Compatibility & Aftermarket

★┊ Supplying the Global Garage Repair Industry

We manufacture direct-replacement profiles suitable for the world's most popular automated door systems:

◌ Screw Drive Systems: We mold the specific star-shaped and splined inserts compatible with major screw-drive platforms (e.g., Chamberlain®, LiftMaster®, Sears Craftsman®, Genie®).
◌ Retail Ready Kitting: For aftermarket distributors, we can pre-package couplers into branded retail poly-bags, complete with packets of white lithium grease and printed installation instructions.
◌ Custom Motor OEMs: If you are designing a brand-new proprietary door opener or industrial rolling shutter, we can engineer a bespoke coupler profile specifically for your motor's torque output.

*All brand names (Chamberlain, LiftMaster, Genie, etc.) are registered trademarks of their respective owners. Best Seal manufactures compatible aftermarket replacement parts and is not affiliated with these brands.

Compliance & Quality Management

Best Seal OEM Factory Statement:

1. We are a ISO and TUV certified factory.

2. We are specializing in rubber industry for over 20 years.

3. All our products can be RoHS, REACH, UL compliant.

4. Quality Managed to IATF 16949 Standards.

5. Strict AQL 0.25/0.40 Standards for Dimensional Accuracy.

Garage Door Opener Coupler FAQ

❓ Why did my original garage door coupler break?

Couplers are designed to fail intentionally as a safety mechanism. If your door tracks are misaligned, if a torsion spring breaks (making the door extremely heavy), or if the door freezes to the concrete, the motor has to pull much harder than normal. Instead of burning out the $200 motor, the $5 rubber coupler shears in half to sever the connection. If you replace the coupler and it breaks again immediately, you have an underlying mechanical issue with your door springs or tracks.

❓ Should I lubricate the new coupler during installation?

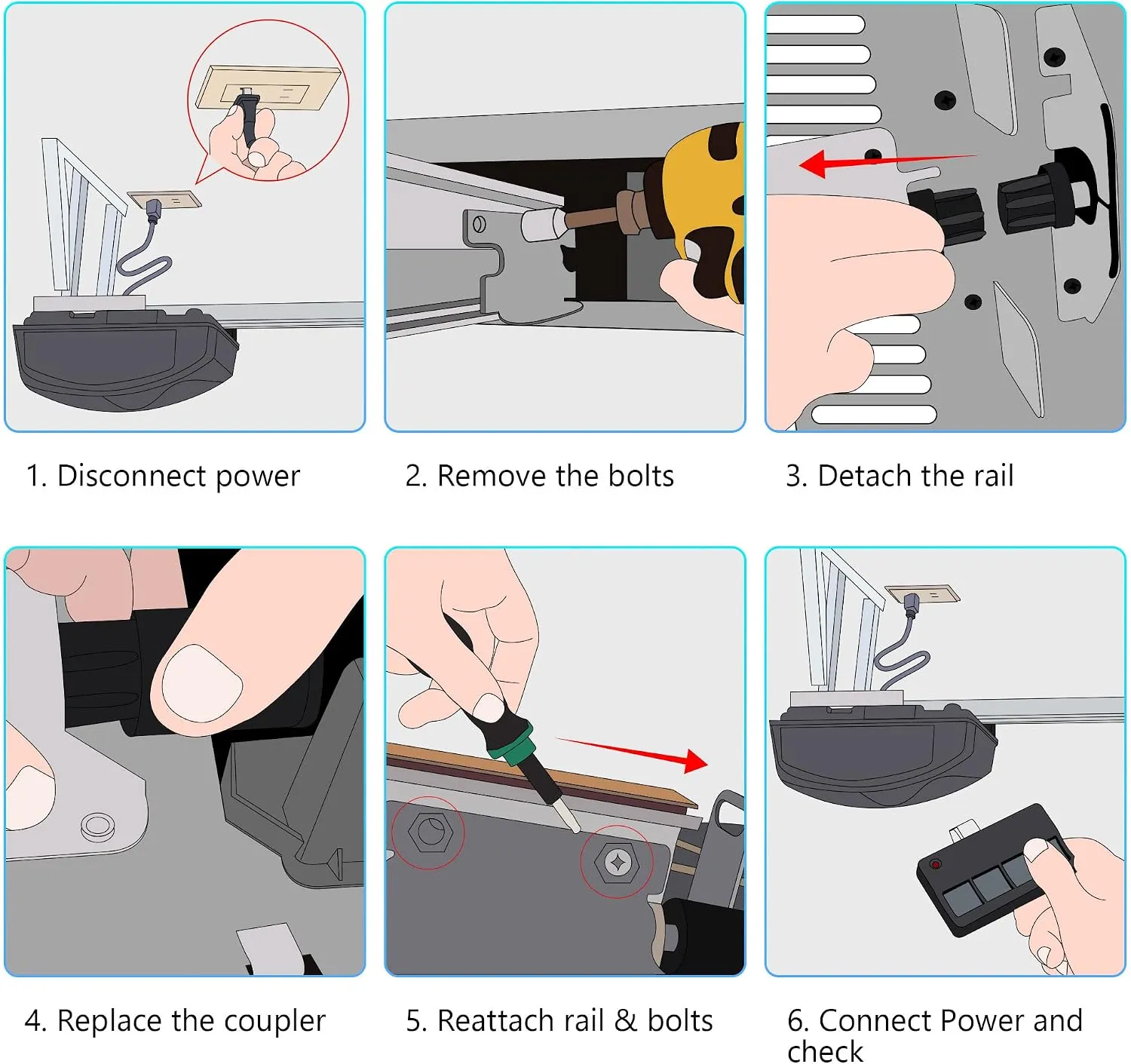

Yes. We highly recommend applying a light coating of white lithium grease or silicone-based lubricant to the metal splines before sliding the new coupler into place. This prevents dry-rot, eliminates squeaking, and makes future removal easier. Never use WD-40, as petroleum distillates can degrade standard rubber.

❓ Can you color-match Polyurethane (PU) couplers for my aftermarket brand?

Absolutely. While OEM parts are typically black, we can cast high-performance Polyurethane couplers in vibrant colors (red, blue, yellow, clear) to match your company's branding, making your aftermarket repair kits instantly recognizable.
