Products Description

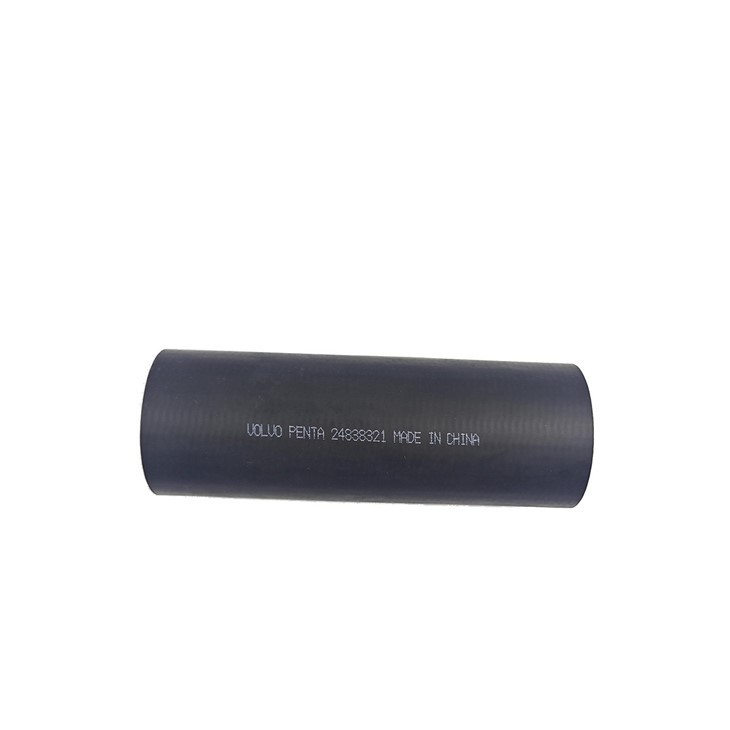

This series of yarn-reinforced rubber hoses is specially designed for marine engine systems.
It uses black EPDM 70A rubber + polyester yarn reinforcement structure, covering core fluid paths such as cooling circulation, exhaust ventilation, and waterway transmission.
|
Name |
Rubber hose with Yarn reinforcement |
|
|
Material |
EPDM 70A + polyester fabric |
Seawater resistant, flame retardant, high elasticity |
|
Colors |
Black, custom colors available |
Dirt resistant, UV aging resistant (carbon black filled reinforcement) |
|
Working pressure |
0.2MPa |
Suitable for conventional pressure requirements of marine engines |
|
Burst pressure |
0.8 MPa |
4 times safety margin to handle sudden pressure fluctuations |
|
Flame-retardant rating |
UL94 V0 |
Prevents flame spread, enhancing engine room fire safety |
|
Standards compliance |
SAE J20R4 D-2 |
Meets maritime-grade fluid transmission pipeline compliance requirements |
|
Operating temperature |
-40°C to 120°C |
Covers extreme cold to high-temperature conditions |
Product Feature
EPDM Material Advantages
Saltwater Corrosion Resistance: EPDM molecules lack double bonds and are naturally resistant to salt spray and microorganisms in seawater.
Wide Temperature Range: Operating temperature range of -40°C to 120°C, capable of withstanding temperature fluctuations during engine cold starts and continuous operation, preventing brittleness or softening.
Flame Retardant Upgrade: Certified to UL94 V0 flame retardant standards, self-extinguishing within 10 seconds of contact with an open flame, with no melting or dripping, reducing the risk of fires caused by fuel leaks in the engine compartment, and compliant with marine fire safety regulations.
With Yarn Reinforcement
Pressure reinforcement: Polyester fibers are spirally woven into the rubber layer, enabling the hose to withstand a working pressure of 0.2 MPa and a burst pressure of 0.8 MPa, ensuring reliable performance under sudden pressure fluctuations caused by ship vibrations.
Deformation Resistance: The yarn and rubber are bonded using a special adhesive process, with a peel strength of ≥5 N/mm and a tear strength of ≥25 kN/m. This ensures resistance to installation bending and long-term vibration, preventing delamination and bulging.
Application
This series of rubber hoses is specially designed for marine engine systems, covering core fluid paths such as cooling circuits, exhaust ventilation, and water transmission. It ensures the stable transmission of engine coolant, seawater, exhaust, and other media, providing a reliable "pressure-resistant + flame-retardant + corrosion-resistant" three-in-one solution for marine power systems.
