Product Overview
Electrical Enclosure Gaskets are industrial-grade sealing solutions engineered to protect electrical and electronic equipment from environmental hazards. Manufactured from premium EPDM, Silicone, and Neoprene rubber, these gaskets provide superior resistance to water ingress, dust contamination, temperature extremes, and electromagnetic interference (EMI).
Designed for compliance with NEMA and IP rating standards (IP54 to IP67), our gaskets ensure reliable performance in outdoor telecom cabinets, industrial control panels, server racks, and renewable energy enclosures.
Structure & Profile Types
 |

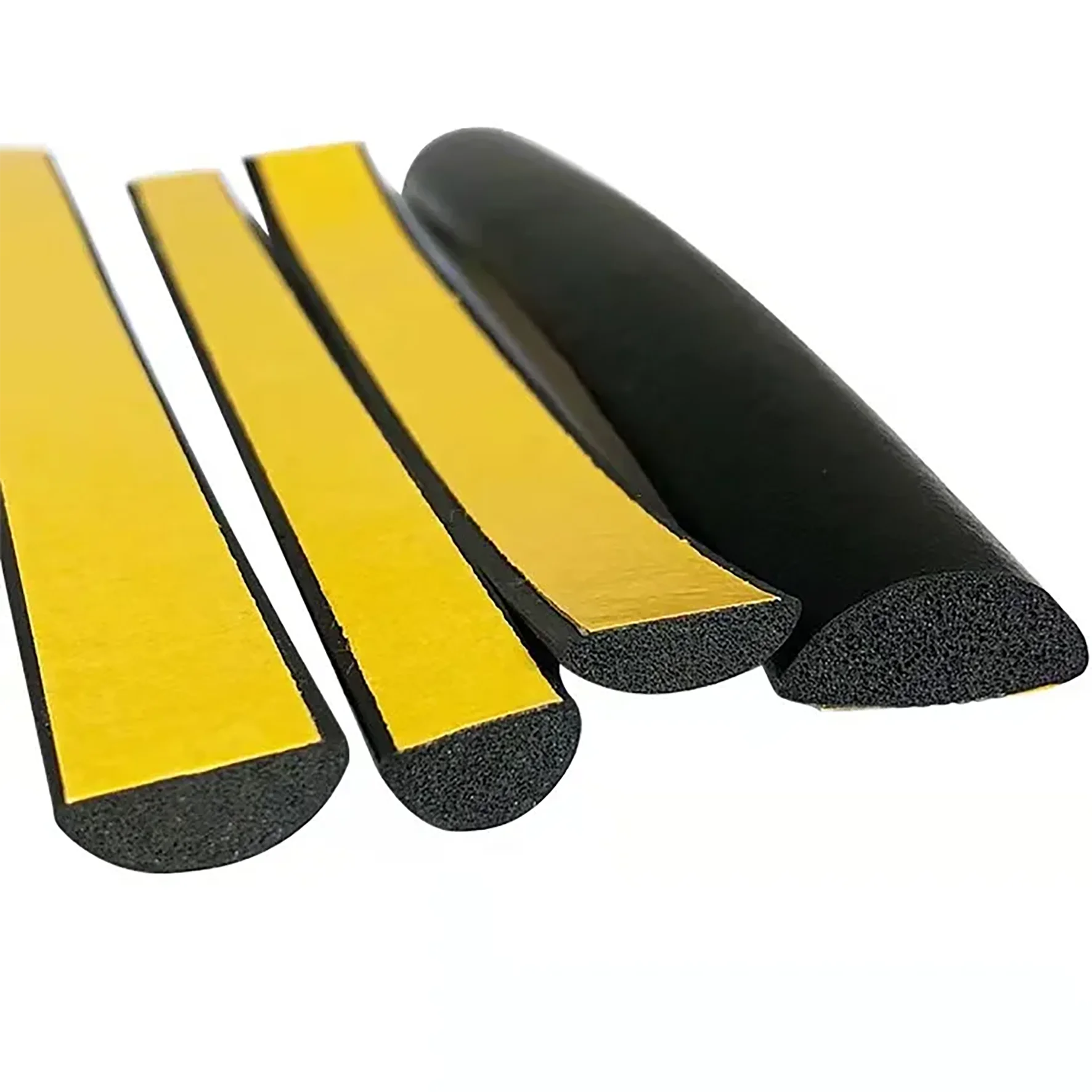

Precision-Engineered Sealing ProfilesOur electrical enclosure gaskets are available in multiple profile configurations to match your cabinet design. The most common profiles include D-shape with PSA backing (pressure-sensitive adhesive for easy installation), U-channel edge trim (snap-on design), and hollow bulb seals for high compression applications. All profiles feature closed-cell construction for superior water resistance and can be manufactured as continuous extrusions or molded corner pieces with vulcanized joints for seamless sealing. |
Material Selection Guide
1. Primary Material Options
| Material | Key Features | Typical Applications |
|---|---|---|
| EPDM (Ethylene Propylene Diene Monomer) | Excellent UV, ozone, and weather resistance; superior water sealing; temperature range -40°C to +120°C; cost-effective for outdoor use | Outdoor telecom cabinets, control panels, street lighting enclosures, solar inverter boxes |
| Silicone Rubber (VMQ) | Extreme temperature tolerance (-60°C to +230°C); UL94 V-0 flame retardant grades available; excellent compression set resistance; chemically inert | High-temperature equipment, cleanroom enclosures, food processing control panels, medical device housings |
| Neoprene (CR) | Good oil and chemical resistance; moderate weather resistance; self-extinguishing properties; temperature range -30°C to +100°C | Industrial machinery enclosures, chemical processing control boxes, automotive electrical housings |
| Conductive Silicone (EMI/RFI) | Nickel-graphite or silver-aluminum filled; attenuation >100dB; simultaneous environmental and EMI sealing; military-grade performance | Server racks, aerospace electronics, military communication equipment, sensitive instrumentation enclosures |
2. Special Compound Options
- ✦ Flame-retardant compounds (UL94 V-0, V-1, V-2)
- ✦ Low-smoke zero-halogen (LSZH) formulations
- ✦ Electrically conductive rubber compounds
- ✦ High-density closed-cell sponge (for IP67)
3. Surface Treatment Options
- ✦ Talc powder dusting (anti-stick)
- ✦ Silicone oil treatment (lubrication)
- ✦ PTFE coating (low friction)
- ✦ PSA backing (3M, Tesa, or equivalent)
IP Rating Performance
Understanding the Ingress Protection (IP) rating system is critical for selecting the correct gasket. The IP code consists of two digits: the first indicates solid particle protection, and the second indicates liquid ingress protection.
| IP Rating | Protection Level | Recommended Gasket Configuration |
|---|---|---|
| IP54 | Dust protected (limited ingress) + Splash water resistant | Open-cell foam or basic felt strips; suitable for indoor-only applications |
| IP65 | Dust-tight + Protection against water jets (12.5 L/min) | Closed-cell EPDM sponge with moderate compression (20-30%); PSA backing recommended |
| IP66 | Dust-tight + Protection against powerful water jets (100 L/min) | Solid EPDM or high-density sponge; continuous molded loops (no joints); higher compression force required |
| IP67 | Dust-tight + Temporary immersion up to 1 meter depth | Solid rubber gasket with O-ring cross-section or hollow bulb profile; vulcanized corner joints mandatory |
Product Advantages
✦ Core Technical Advantages
- IP65/IP66/IP67 Certified Sealing – Independently tested to IEC 60529 standards
- Long Service Life – EPDM: 10+ years outdoor; Silicone: 15+ years in harsh environments
- Temperature Stability – Maintains elasticity across extreme temperature ranges
- EMI/RFI Shielding – Conductive grades provide >100dB attenuation up to 10GHz
- UV & Ozone Resistance – No cracking or hardening after prolonged sun exposure
- Customizable Profiles – Extrusion and molding capabilities for any enclosure design
✦ Manufacturing Strength & Quality Assurance
- ISO 9001:2015 Certified Facility – Full traceability from raw material to finished product
- In-House Rubber Compounding – Custom formulations for specific environmental requirements
- Advanced Extrusion Lines – Microwave vulcanization for consistent cross-section tolerances (±0.1mm)
- Automated Cutting & Splicing – CNC precision cutting and hot-air vulcanized corner joints
- 100% Inspection – Dimensional verification, hardness testing, and visual QC on every batch
- Engineering Support – Free gasket design consultation and IP rating validation assistance
Packaging & Shipping
📦 Packaging Options
We provide flexible packaging solutions tailored to product profile, order quantity, and shipping method. All gaskets are packaged to prevent deformation, contamination, and UV exposure during transit.
| Category | Packaging Type |
|---|---|
| Standard Packaging | Coiled in PE bags (for extrusion profiles) |
| Individual poly bags (for molded gaskets) | |
| Foam protective wrapping (for large frame gaskets) | |
| Special Packaging | Blister packs (for retail/aftermarket) |
| Vacuum-sealed bags (moisture-sensitive applications) | |
| Cardboard spools (for continuous extrusion) | |
| Custom-printed boxes with part numbers and barcodes | |
| Customization Available: Customer branding, QR codes, installation instructions, and multi-language labels upon request | |
🚚 Shipping & Logistics
We partner with leading global carriers to ensure timely delivery with full shipment tracking.
| Item | Details |
|---|---|
| Shipping Methods | Express (DHL / FedEx / UPS), Air Freight, Sea Freight (LCL/FCL) |
| Delivery Time | Express: 3–5 days | Air: 5–7 days | Sea: 25–35 days (port-to-port) |
| Export Packing | Standard export cartons, palletized and stretch-wrapped for sea freight |
| Trade Terms | EXW, FOB Xiamen, CIF, DDP (door-to-door) available |
| Shipping Port | Xiamen Port, China (alternative: Shenzhen, Shanghai) |
| Lead Time | Stock items: 1–3 days | Custom extrusion: 7–14 days | Tooling + molding: 3–6 weeks |
💡 Secure & Reliable Delivery:
All gaskets are inspected before shipment and packed to prevent UV degradation, compression set, and surface contamination. We provide full documentation including material certificates, test reports, and commercial invoices for customs clearance.
Certificates & Compliance
🏆 Official Certifications: ISO 9001:2015, UL 50E (Enclosures), UL 94 (Flammability), CE, RoHS, REACH
⚙️ Industry Standards Compliance:ASTM D2000 (Rubber Material Classification)
🧪 Additional Testing & Custom Certifications:
we can provide material test reports and compliance documentation to support your enclosure's UL 50E or CE certification process.
FAQ – Request For Quotation
❓ What information do I need to provide for a quotation?
Please provide: (1) Enclosure dimensions or gasket perimeter length, (2) Required IP rating, (3) Profile type (D-shape, U-channel, etc.), (4) Material preference (EPDM/Silicone/Neoprene), (5) Quantity, (6) Any special requirements (EMI shielding, flame retardant, PSA backing).
❓ Is there a minimum order quantity (MOQ)?
For standard profiles: 50 meters minimum. For custom extrusion: 200 meters minimum. For molded gaskets with new tooling: typically 500–1000 pieces depending on complexity. We can discuss lower quantities for prototyping.
❓ How long does it take to receive a quotation?
Standard profiles: within 24 hours. Custom extrusion or molding: 2–3 business days (we may need to review technical drawings and run feasibility checks).
❓ Can you help with IP rating validation?
Yes! Our engineering team can review your enclosure design and recommend the appropriate gasket profile, material, and compression requirements to achieve your target IP rating. We can also arrange third-party IP testing if needed.
❓ Do you offer EMI shielding gaskets?
Yes, we manufacture conductive silicone gaskets with nickel-graphite or silver-aluminum fillers. These provide >100dB attenuation and are compliant with MIL-DTL-83528. We can also supply fabric-over-foam (FOF) and beryllium copper fingerstock gaskets.
❓ What are the lead times for production and delivery?
Stock profiles: 1–3 days. Custom extrusion (existing tooling): 7–14 days. New extrusion die: 2–3 weeks + production. Molded gaskets with new tooling: 4–6 weeks. Express production is available for urgent orders.
