Molded Silicone Enclosure Gasket - Cross-Rib Cover Seal & Center Locating Eyelet Housing Gasket OEM
Electronic control units (ECU), outdoor IP67 junction boxes, vacuum chambers, diaphragm pump cover plates, and high-voltage inverter housings require perimeter elastomeric seals that prevent moisture and dust ingress while accommodating internal mounting hardware and structural stiffeners. Standard circular O-rings cannot span multi-chamber dividing partitions or align around perimeter bolt bosses. Molded Silicone Enclosure Gaskets (also engineered as cross-rib silicone cover seals or silicone frame gaskets with center eyelets) are precision-molded elastomeric sealing rings featuring an engineered rectangular perimeter with contoured corner relief cutouts, an integrated transverse dividing rib, and a molded concentric center eyelet. Molded in high-temperature iron red or safety orange silicone, they provide reliable hermetic face sealing from −50°C to +200°C under low clamping torque.
At Best Seal, we are an ISO 9001 & TÜV Certified OEM manufacturer with over 20 years of precision rubber molding expertise. We manufacture custom-engineered molded silicone enclosure gaskets directly from your 2D/3D CAD drawings (STEP, IGES, DXF) to match intricate housing grooves. Molded to RMA Class A2 Precision Tolerances in high-tear strength Silicone (VMQ), Fluorosilicone (FVMQ), EPDM, and Fluoroelastomer (FKM) compounds, our gaskets maintain resilience against aging, ozone, and thermal cycling. First-article prototype samples are delivered in 10 to 14 business days under Strict AQL 0.25/0.40 quality protocols.

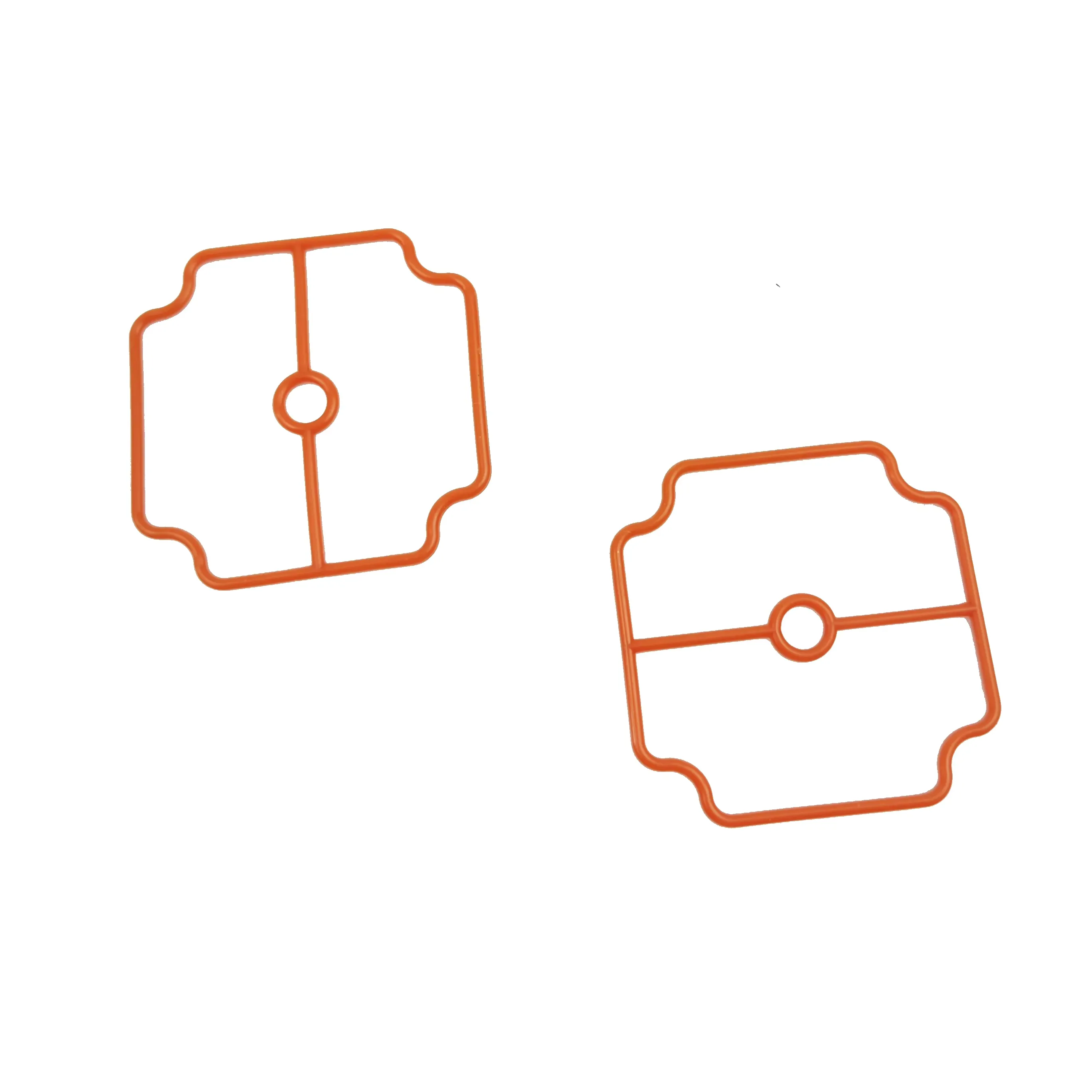

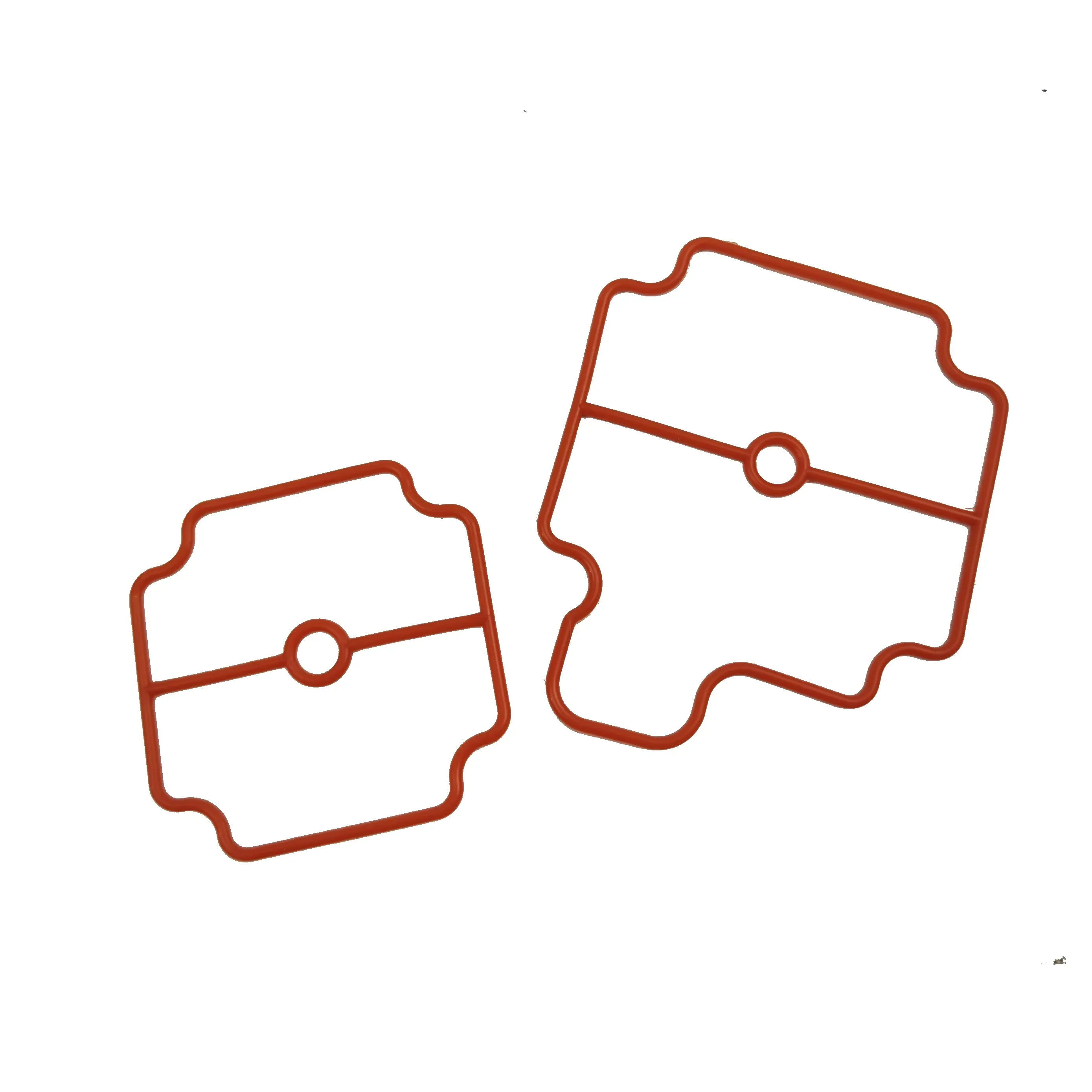

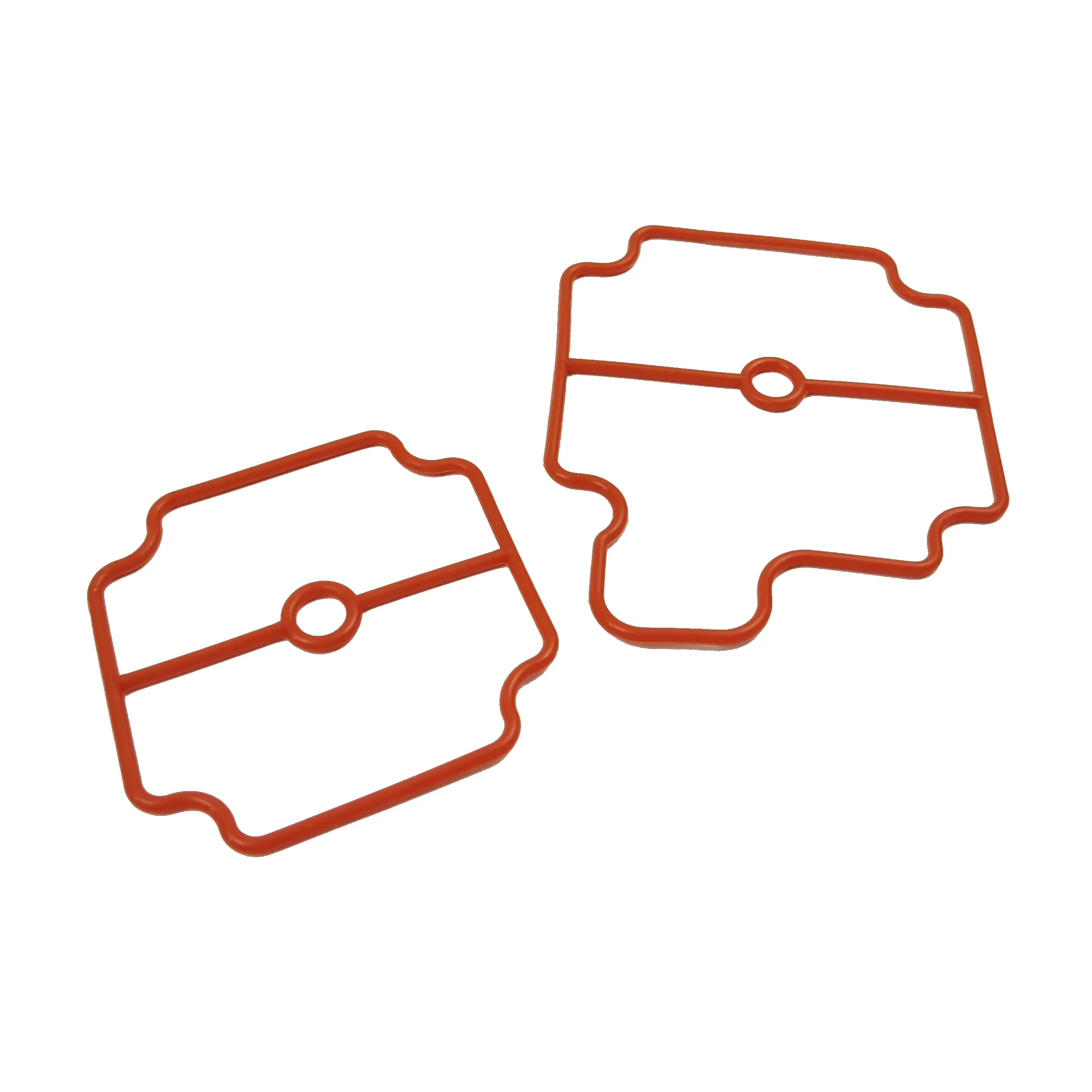

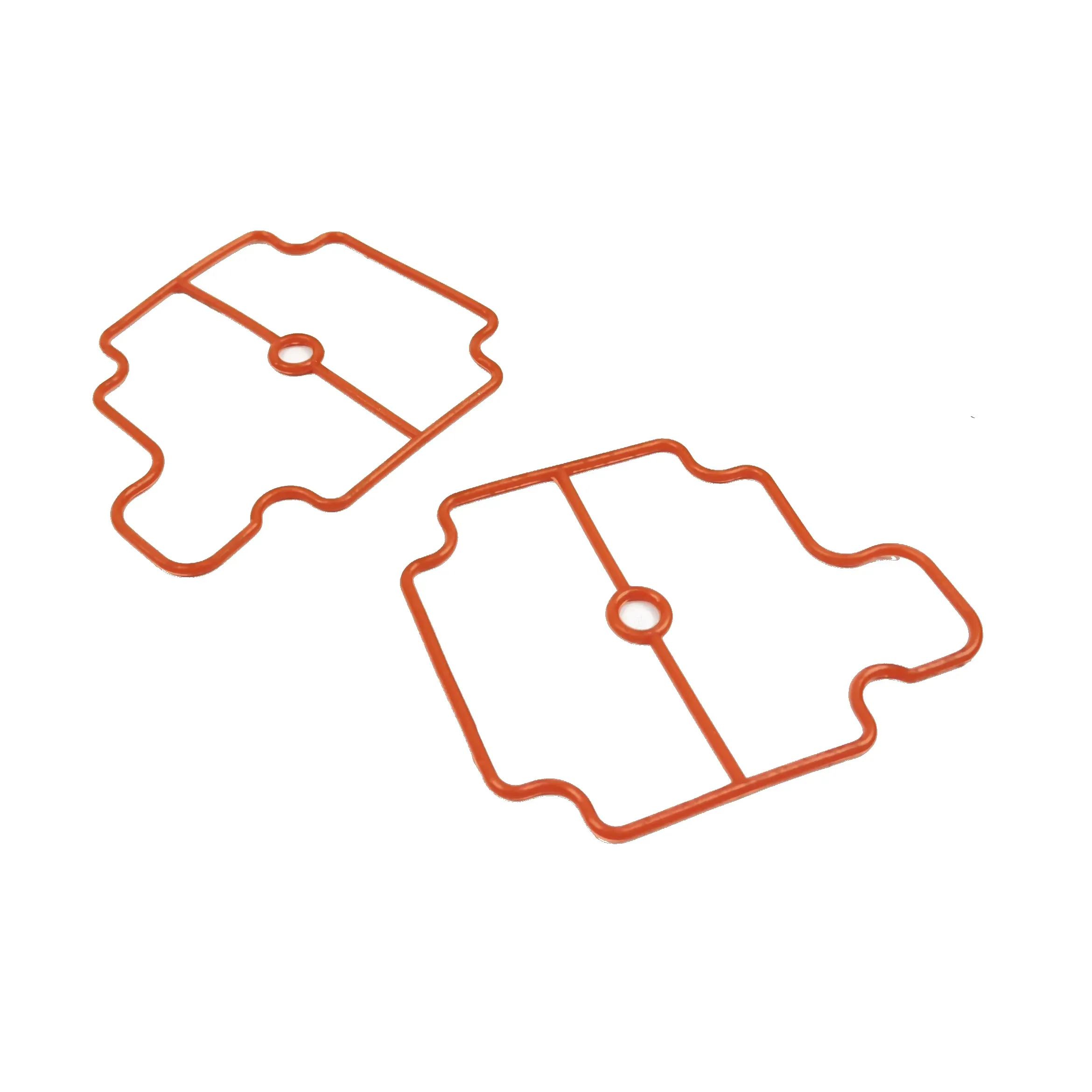

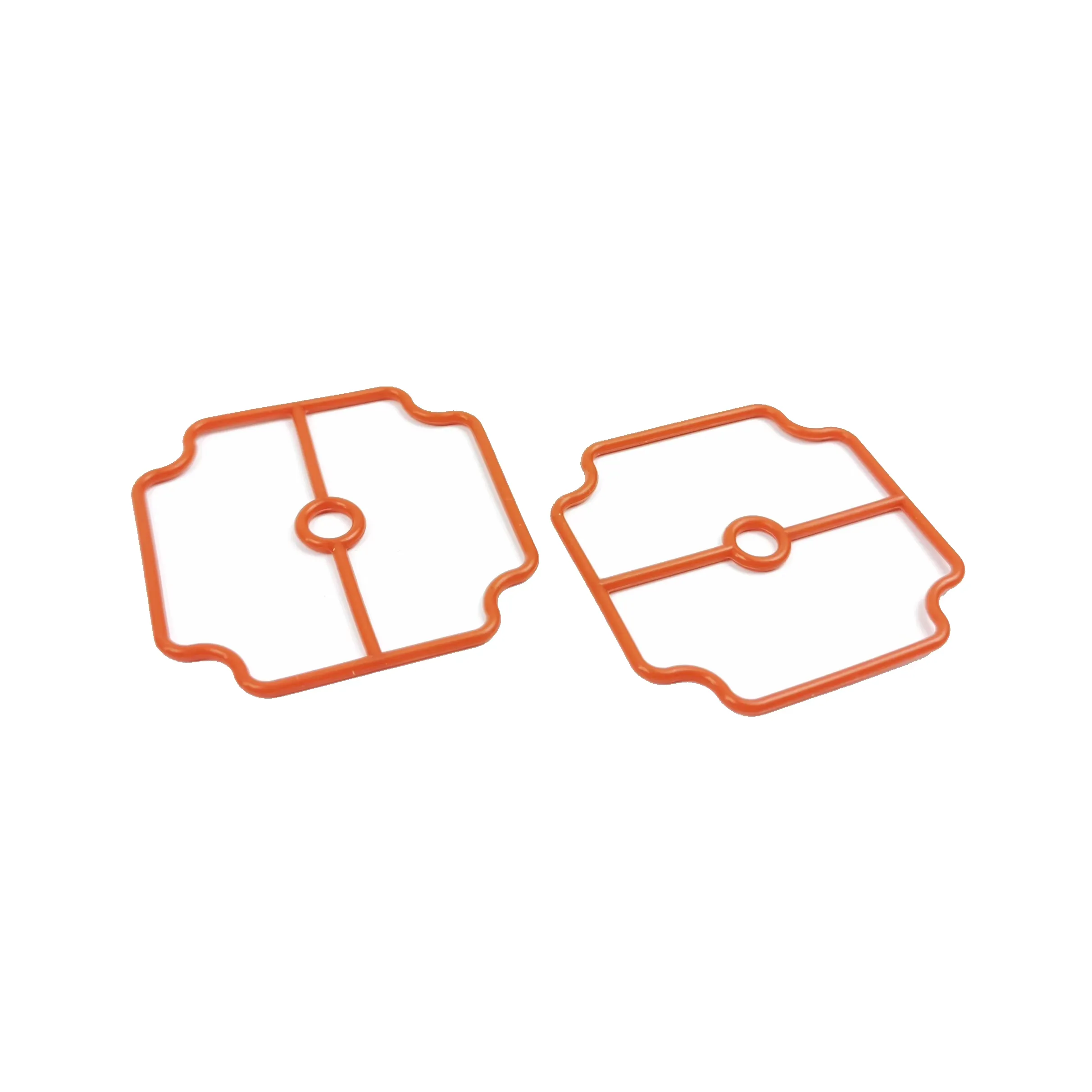

Contoured Perimeter & Integrated Cross-Rib Architecture
The hermetic sealing performance and retention stability of this molded silicone frame gasket rely on the synchronized execution of three functional geometric features:
Zone 1 - Perimeter Frame with Corner Relief Notches
The outer rectangular frame features radiused inner corner relief notches (cutaways) designed to clear housing corner fasteners, alignment bosses, and casting drafts. This custom profile eliminates gasket pinching, bunching, and extrusion during cover plate bolt torque-down.
Zone 2 - Transverse Dividing Rib / Chamber Isolator
The center connecting beam bridges the two long sides of the frame. It acts as an internal structural partition, isolating dual internal compartments while preventing inward frame collapse or stretching during manual assembly into machined or cast aluminum gasket tracks.
Zone 3 - Concentric Center Locating Eyelet Ring
Integrally molded at the center of the cross-rib is an annular locating boss (eyelet). It centers over a housing central tie-bolt, threaded stud, or alignment post, providing secondary leak protection around the center fastener and positive anti-migration retention under vibration.
Elastomer Compound Selection for Enclosure Seals
Choosing the proper rubber polymer for enclosure and cover plate gaskets requires balancing operating temperatures, fluid exposure, compression set, and dielectric properties:
| Compound | Temp. Range | Hardness | Key Engineering Properties | Typical Applications |
|---|---|---|---|---|
| High-Tear Silicone (VMQ) | −50°C to +200°C | Shore 45–65A | Standard iron-red formulation; excellent elastic memory; ultra-low compression set; excellent dielectric insulation; UV and ozone proof; FDA 21 CFR 177.2600 compliant. | Electronic enclosures, automotive ECU covers, outdoor junction boxes, food/beverage process pumps. |
| Fluorosilicone (FVMQ) | −60°C to +180°C | Shore 50–70A | Combines wide silicone temperature stability with exceptional resistance to synthetic lubricating oils, gasoline, hydrocarbon solvents, and engine fuels. | Aerospace electronic pods, automotive fuel system control units, military sealed instrumentation. |
| EPDM Rubber | −45°C to +135°C | Shore 50–70A | Superior resistance to hot water, steam, alkaline cleaners, and outdoor weathering; high tensile elongation and cost-effective sealing. | Outdoor HVAC controls, water filtration housing lids, solar inverter enclosures. |
| Fluoroelastomer (FKM / Viton®) | −20°C to +220°C | Shore 60–80A | Outstanding resistance to aggressive industrial chemicals, hydraulic oils, strong acids, and harsh vacuum conditions; low gas outgassing. | Vacuum chamber flanges, chemical processing pump covers, high-temperature oil sump lids. |
In-House Precision Tooling & RMA Class A2 Inspection
Because molded silicone frame gaskets have thin cross-sections and multiple internal openings, maintaining tight dimensional stability across the entire perimeter is critical. Inaccurate shrinkage compensation or mold mismatch can cause the center eyelet or corner cutouts to misalign with housing bolt holes. Best Seal designs and machines all tooling in-house using high-speed CNC milling and precision EDM spark erosion to RMA Class A2 Precision Tolerances. Split-mold parting lines run along the geometric center of the cross-section with sub-0.01 mm parting plane fitment, ensuring 100% flash-free inner eyelet bores and smooth outer edges. Every production run undergoes 100% optical CMM dimensional verification, durometer hardness testing, and compression set testing. Prototype samples delivered in 10 to 14 business days.
Electrical, Automotive & Fluid Equipment Applications
★┊ Multi-Compartment Hermetic Sealing Across Industries
- ◌ Electronic Control Modules (ECU / BCM): High-temperature silicone frame gaskets sealing die-cast automotive aluminum module covers against road spray and engine bay heat.
- ◌ Outdoor IP67 / NEMA Electrical Enclosures: Weatherproof perimeter gaskets with center bolt isolation for telecommunications boxes and industrial junction boxes.
- ◌ Diaphragm Pumps & Compressors: Cross-rib divider seals separating suction and discharge chambers on pneumatic pumps and air compressors.
- ◌ Vacuum Chambers & Analytical Equipment: Ultra-low outgassing silicone gaskets maintaining vacuum integrity on laboratory instrumentation and optical sensor covers.
- ◌ Power Inverter & Battery Housing Lids: Flame-retardant silicone seals providing dust-tight insulation and vibration damping for electric power conversion cabinets.
Compliance & Quality Management
Best Seal OEM Factory Statement: 1. ISO 9001:2015 and TÜV certified production facility with 20+ years of dedicated precision rubber molding excellence. 2. In-house CNC and EDM mold tooling built to RMA Class A2 Precision Tolerances; 100% flash-free center eyelets and perimeter ribs. 3. Extensive material options: High-Tear Silicone (VMQ), Fluorosilicone (FVMQ), EPDM, and FKM compliant with RoHS, REACH, and FDA 21 CFR 177.2600. 4. High-precision shrinkage calculation ensuring exact alignment with cast or machined housing gasket grooves. 5. Strict AQL 0.25/0.40 quality inspection protocol; full 3D optical dimensional and material compliance reports provided with shipment.
Silicone Enclosure Gasket - Frequently Asked Questions
❓ Why are molded silicone frame gaskets preferred over spliced O-rings or die-cut flat sheets?
Spliced cord rings or circular O-rings cannot follow complex rectangular paths with corner cutaways, nor can they provide internal dividing ribs or center eyelets in a single piece. Die-cut flat sheet gaskets waste significant center material and require high bolt clamping force. A molded silicone frame gasket is engineered with a rounded cross-section that nests perfectly into housing groove tracks, achieving hermetic IP67 sealing with minimal bolt torque and zero assembly seams.
❓ What purpose does the center eyelet serve?
The center eyelet acts as a locating anchor that fits over a central housing standoff or tie-bolt. In large enclosures, perimeter bolts alone can allow cover plate bowing in the center. A central bolt passes through this eyelet, pulling down the cover evenly while the eyelet seals around the bolt hole to prevent external liquid penetration into the housing interior.
❓ Can you customize colors, durometer, and flame-retardant ratings?
Yes. In addition to standard industrial Iron Red and Safety Orange, we compound silicone in black, grey, blue, translucent, or any RAL/Pantone color. We also offer UL94 V-0 flame-retardant formulations for electrical equipment, and FDA 21 CFR 177.2600 certified food-grade grades.
❓ What is the turnaround time for custom tooling and first-article samples?
Because our toolroom is completely in-house, custom CNC mold tooling is built in **10 to 14 business days**. First-article prototype gaskets are supplied with full 3D optical inspection reports and material certificates for assembly fit testing prior to mass production.
