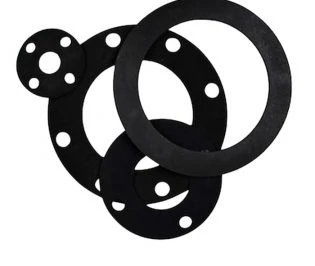

Rubber Oil and Heat Resistant Gasket
Rubber oil and heat resistant gaskets are engineered sealing components designed to maintain reliable performance under continuous exposure to oils, fuels, lubricants, and elevated temperatures. They are widely used in automotive, industrial machinery, piping systems, and power equipment where conventional rubber materials may harden, swell, or degrade.
1. Product Overview
Oil and heat resistant gaskets are primarily used to prevent leakage in systems combining thermal stress and aggressive media. The gasket material must retain elasticity, compression force, and dimensional stability throughout its service life.
- Excellent resistance to petroleum-based oils and fuels
- Stable sealing performance at elevated temperatures
- Low swelling and volume change
- Good compression recovery
Application Focus: These gaskets are ideal for engines, gearboxes, pumps, compressors, and heat-exposed sealing interfaces.
2. Common Materials for Oil and Heat Resistance
| Material | Oil Resistance | Heat Resistance | Typical Temperature Range |
|---|---|---|---|
| NBR (Nitrile Rubber) | Excellent | Good | -30°C to +120°C |
| HNBR | Excellent | Very Good | -30°C to +150°C |
| FKM (Viton®) | Outstanding | Excellent | -20°C to +200°C |
| ACM (Polyacrylate) | Very Good | Good | -20°C to +150°C |
Material Limitation: EPDM and silicone rubber are not suitable for oil-based environments due to swelling and loss of mechanical strength.
3. Manufacturing Processes
Rubber oil and heat resistant gaskets are manufactured using processes selected according to thickness, tolerance, and production volume.
- Compression Molding: Ensures dense structure and consistent sealing performance
- Die Cutting: Cost-effective for flat gaskets made from rubber sheets
- Water Jet Cutting: Suitable for custom shapes and rapid prototyping
Process Selection Tip: Molded gaskets are preferred for high-temperature and high-load applications due to improved material integrity.
4. Key Performance Tests
4.1 Oil Immersion Test
- Measures volume change after oil exposure
- Evaluates swelling and hardness variation
4.2 Heat Aging Test
- Assesses tensile strength and elongation retention
- Simulates long-term thermal exposure
4.3 Compression Set
- Determines sealing force loss over time
- Critical for static gasket applications
5. Typical Applications
- Automotive engine and transmission systems
- Oil pumps and hydraulic equipment
- Industrial gearboxes and compressors
- Oil pipelines and flange connections
- Power generation equipment
6. Installation and Maintenance Guidelines
- Clean flange surfaces to prevent leakage paths
- Apply uniform bolt torque in a cross pattern
- Avoid over-compression beyond material limits
- Inspect gaskets during routine maintenance cycles
Maintenance Tip: Replace gaskets showing hardening, cracking, or excessive compression set to prevent sudden leakage.
Conclusion
Rubber oil and heat resistant gaskets provide dependable sealing in demanding environments where both thermal stress and aggressive media are present. Proper material selection, controlled compression, and regular inspection are essential to achieving long-term sealing performance.
