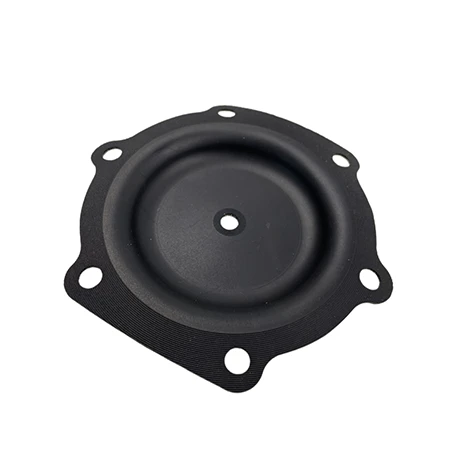

OEM Fabric Reinforced Rubber Diaphragms – High-Cycle Precision for Industrial Fluid Systems
In the world of high-pressure pumps, pneumatic actuators, and fluid-control valves, the diaphragm is the most critical mechanical interface. Standard rubber diaphragms often suffer from structural "creep" or fatigue failure when subjected to millions of cycles under high differential pressure. The OEM Fabric Reinforced Rubber Diaphragm (also known as a Cloth-Inserted Diaphragm) solves this by incorporating a high-strength technical textile-such as Nylon, Polyester, or Kevlar-directly into the elastomer matrix. This composite architecture provides unmatched dimensional stability and prevents the rubber from stretching, ensuring consistent stroke performance and a vastly extended service life.
Xiamen Best Seal operates as a Large-Scale Manufacturing Hub for specialized diaphragms. Our competitive edge is built on three pillars: Immense Factory Capacity, an Exhaustive Tooling Inventory, and Factory-Direct Cost Efficiency. By eliminating middleman markups and leveraging our massive existing mold library, we provide global OEMs with a rapid-turnaround solution that dramatically reduces both unit costs and time-to-market. Whether you require a ultra-thin sensitive regulator diaphragm or a heavy-duty reinforced gasket for a chemical metering pump, our IATF 16949-compliant facility ensures each part is molded to zero-defect tolerances.
✵ ˚ : · ✬ The Fabric-Elastomer Composite Edge ✬ · : ˚ ✶
Fabric reinforcement transforms a flexible elastomer into a structural component capable of withstanding extreme mechanical stress. Our proprietary molding process ensures a molecular bond between the fabric and the rubber:
🛡️ Zero-Stretch Structural Integrity
Standard rubber "blooms" or thins out under pressure. Our internal fabric lattice provides a rigid backbone that absorbs the tension, allowing the diaphragm to maintain its exact geometry through millions of strokes. This is critical for metering accuracy in chemical pumps.
🔄 Extreme Fatigue Resistance
By distributing mechanical load across the technical textile, we significantly reduce localized stress on the rubber. Our reinforced diaphragms are validated for high-cycle performance, often outlasting standard elastomeric alternatives by 4x to 6x in continuous operation.
💥 High Burst-Pressure Capability
Fabric reinforcement allows for much higher pressure differentials without the risk of rupture. This enables OEMs to design more compact, higher-performance pumps and actuators while maintaining a high safety factor for industrial applications.
The Reinforcement Matrix
We match the specific textile reinforcement to the application's thermal and chemical requirements:
| Reinforcement Fabric | Technical Performance & Typical Application |
|---|---|
| Fine-Mesh Nylon | The Industrial Standard. Excellent flexibility and high tensile strength. Ideal for air regulators, brake actuators, and universal pneumatic systems. Best balance of cost and cycling longevity. |
| Polyester (High-Dyne) | Chemical Resistance Lead. Provides superior dimensional stability and is less prone to moisture absorption. Preferred for chemical metering pumps and oil-field valve actuators. |
| Nomex / Kevlar | Extreme Environment Speciality. Used for high-temperature or extreme pressure differentials where standard synthetics would melt or snap. Primarily used in aerospace and specialized heavy-duty chemical processing. |
Primary OEM Diaphragm Deployments
🚿 Industrial Water & Fluid Pumps
Supplying multi-layer reinforced diaphragms for AODD pumps and high-flow water treatment systems requiring constant 24/7 cycling.
🚗 Automotive Braking & Turbo
Precision molded diaphragms for turbo wastegates and brake boosters, engineered to handle under-hood thermal peaks without fatigue.
🌡️ Gas Regulators & Control Valves
High-sensitivity NBR and Silicone cloth-inserted diaphragms for natural gas infrastructure and precision industrial valve actuators.
The Large-Scale Factory Advantage
Zero Middleman Pricing via Massive Production Scale
As a dedicated Diaphragm Manufacturing Specialist, we leverage our Huge Inventory of Existing Molds to eliminate one of the biggest costs for our customers: Tooling Fees. With thousands of dimensions already engineered, most clients find their exact requirement already in our catalog.
- ❀ Factory-Direct Cost Leadership: By verticalizing the molding and fabric-bonding process, we offer the most competitive B2B costs without compromising on automotive-grade quality.
- ❀ Rapid Scalability: Our enormous factory floor space allows us to scale production for millions of units per month, supporting global supply chains with consistent, zero-defect delivery.
Packaging & Shipping
📦 Packaging Options
We provide specialized packaging for reinforced diaphragms to maintain their critical geometry. Options include flat-stacking with interleaving and protective cushioning for complex 3D shapes.
| Category | Packaging Type |
|---|---|
| Standard Packaging | Bulk Cartons (Interleaved for high-volume pump assembly) |
| Small Poly Bags (Labeled for easy repair kit identification) | |
| Foam / Bubble Protective Packaging | |
| Special Packaging | Flat Cardboard Supports (To maintain perfect flatness of large gaskets) |
| Moisture-Barrier Vacuum Sealing | |
| Custom Printed Boxes (For Retail/Aftermarket brands) | |
| Sleeve Packaging (For maintaining the dome shape of deep-draw diaphragms) | |
| Customization Available: Dimensional labels, batch traceability QR codes, or custom shipping marks. | |
🚚 Shipping & Logistics
We offer multiple shipping methods with flexible delivery options to meet your global production timelines.
| Item | Details |
|---|---|
| Shipping Methods | Express (DHL / FedEx / UPS), Air Freight, Sea Freight |
| Delivery Time | Express: 3–5 days | Air: 5–7 days | Sea: 25–35 days |
| Export Packaging | Standard export cartons, palletized for secure transport |
| Trade Terms | EXW, FOB, CIF, DDP / DDU available |
| Shipping Port | Xiamen, China |
Compliance & Quality Certifications
🏆 Quality Certifications: ISO 9001:2015, PPAP Level 3 Compliant.
⚙️ Compliance Standards: Eco-friendly RoHS 2.0, REACH SVHC Compliant, NSF/FDA Silicone availability.
Diaphragm Engineering & Factory FAQ
❓ How does fabric reinforcement improve a pump's cycle life?
The reinforcement fabric (like Nylon or Polyester) acts as the diaphragm's bone structure. While the rubber provides the seal, the fabric absorbs the mechanical strain and prevents the elastomer from stretching or "ballooning." This significantly reduces material fatigue, allowing the pump to maintain constant pressure over many more cycles than a non-reinforced part.
❓ Can you lower the price for new OEM projects using existing molds?
Yes. This is our core advantage. We have a massive mold inventory for diaphragms used in AODD pumps, gas regulators, and valve actuators. If your design matches one of our thousands of existing tools, we eliminate the tooling fee entirely, providing immediate factory-direct pricing with no upfront investment.
